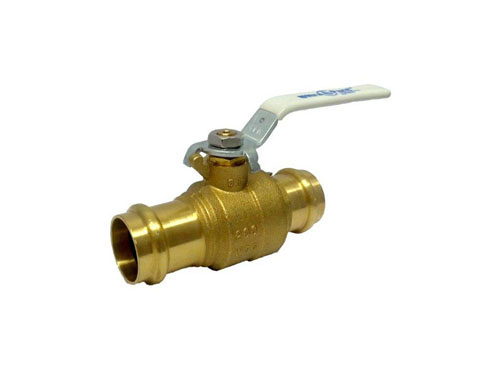

Milwaukee UPBA-480B-212 2-1/2 in. Brass Full Port Press Ball Valve

Product Description

The Milwaukee UPBA-480B-212 is a two and one half inch full port ball valve designed for press connections. This product features a robust brass body and stem, providing reliability for various applications.

• Designed for press by press end connections for easy installation.
• Equipped with a locking lever handle for secure operation.
• Bubble-tight shutoff for leak-free performance.

Product Highlights

Product Information

Standard Information

• Collection: UPBA-480 Series
• Valve Size: 2-1/2 inches

Technical Specifications

• End Connection 1: Press
• End Connection 2: Press
• Pressure Class: 200#
• Maximum Pressure: 200 psi
• Minimum Temperature: -20 degrees Fahrenheit
• Maximum Temperature: 250 degrees Fahrenheit
• Valve Type: Ball Valve
• Valve Body Material: Brass
• Valve Port Opening: Full Port
• Valve Seat Material: RPTFE
• Handle Material: Zinc Plated Steel
• Handle Type: Locking Lever
• Lead Law Compliant: Yes
• Recommended Valve Application: Potable Water
• NSF Certified: Yes
• IAPMO Listed: Yes
• Weight: 10.58 lb
• Height: 4-3/4 inches
• Width: 6-3/4 inches
• Length: 14 inches
• Country of Origin: Global
