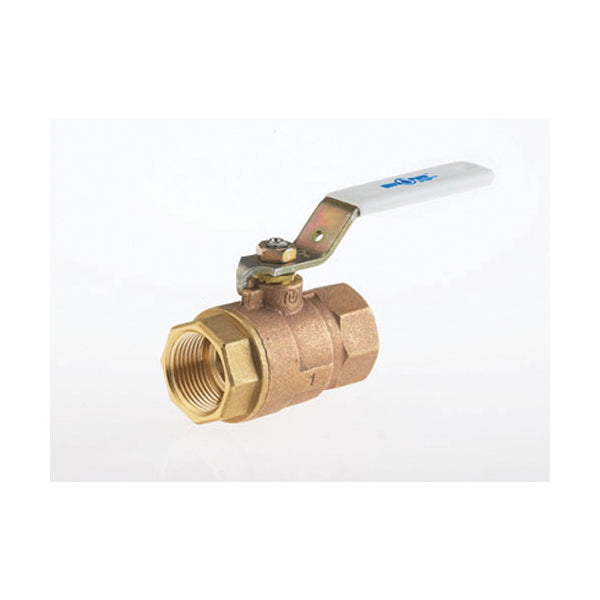

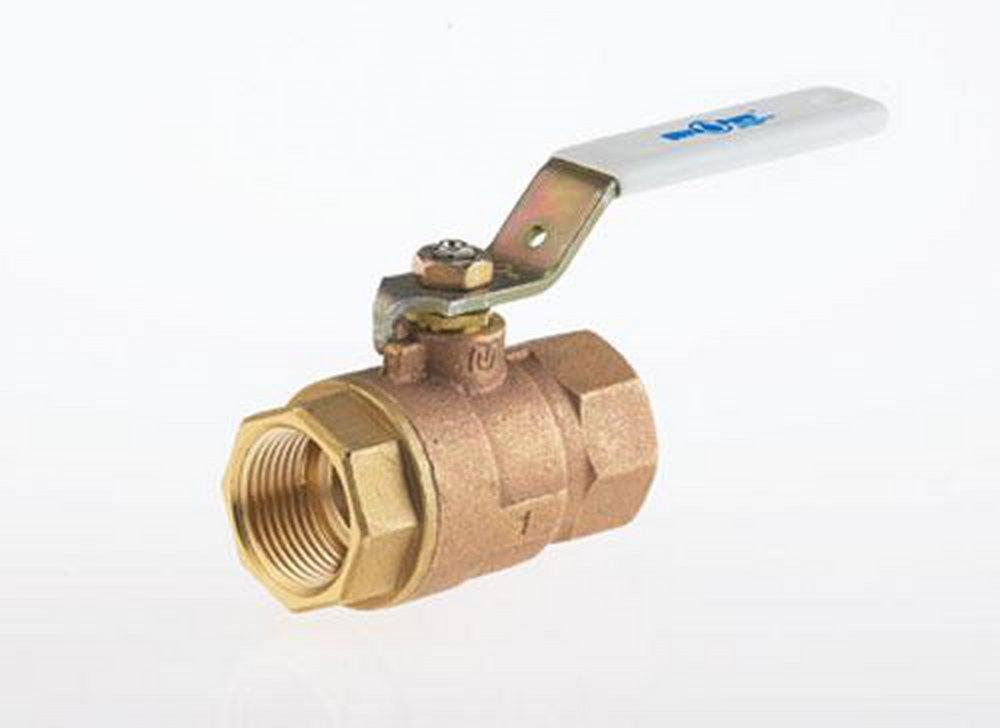

Milwaukee UPBA-100A100 1-Inch Ball Valve

Product Description

The Milwaukee UPBA-100A100 is a two-piece ball valve designed for plumbing applications. The valve has a nominal size of one inch with a standard port and threaded ends, making it suitable for various plumbing tasks. The construction includes a cast bronze body and brass stem, featuring RPTFE seat trim for durability and reliability.

• Chrome-plated brass ball enhances performance.
• RPTFE softgoods ensure a secure seal.
• Simple quarter-turn operation for ease of use.

Product Highlights

This valve operates under a pressure rating of six hundred psig, making it ideal for different systems.

Product Information

Standard Information

• Brand: Milwaukee
• MPN: UPBA-100A100

Technical Specifications

• Series: UPBA100
• Body Material: Cast Bronze
• Nominal Size: 1 inch
• End Style: Thread
• Pressure Rating: 600 psig
• Orifice Size: 0.88 inch
• Inlet to Outlet Length: 3.17 inches
• Top to Inlet Center: 2-1/4 inches
• Trim Material: Brass Stem and RPTFE Seat
• Ball Material: Chrome Plated Brass
• Port Type: Standard
• Softgoods Material: RPTFE
• Type: 2-Piece
• Domestic/Import: Domestic
