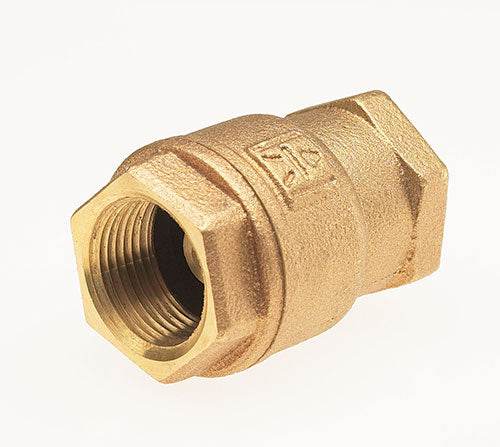

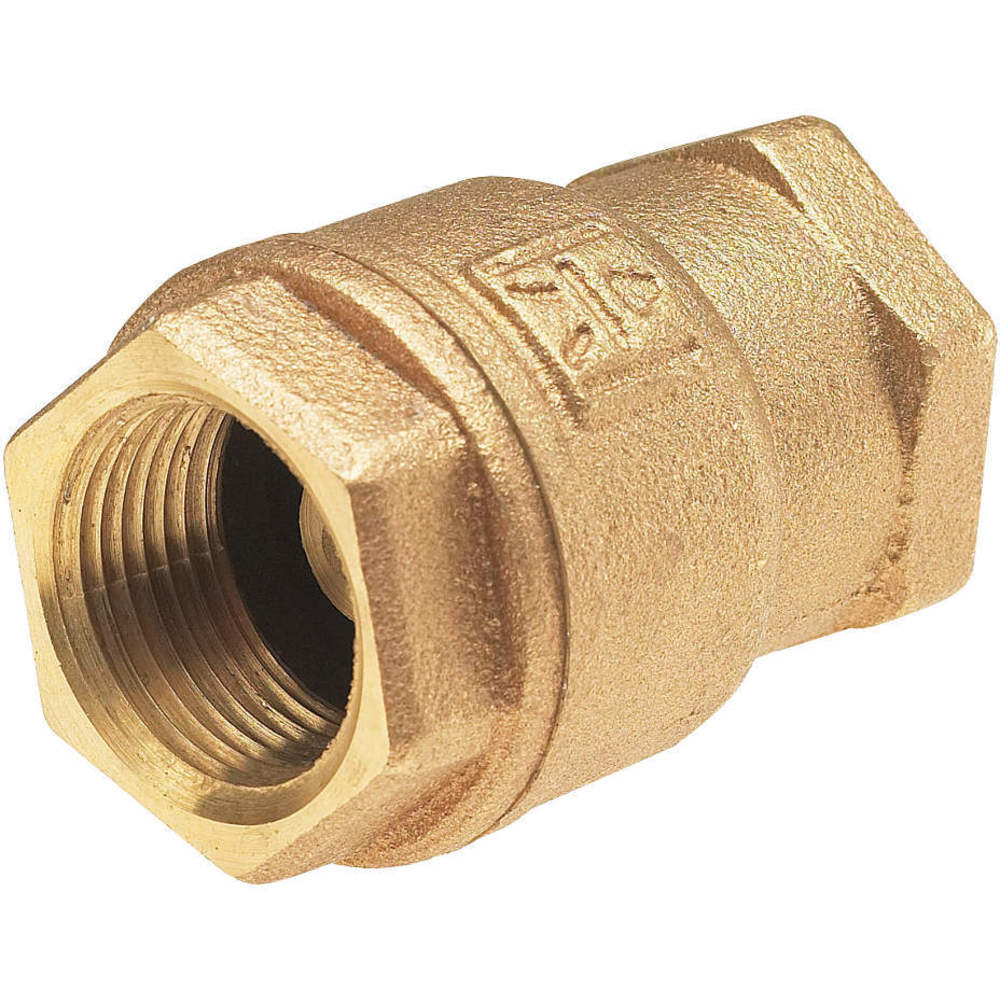

Milwaukee UP548T-12 Low Lead Bronze Check Valve

Product Description

The Milwaukee UP548T-12 is a low lead bronze check valve designed for use in potable water systems. This valve features a spring-loaded lift mechanism and is constructed with durable bronze and PTFE materials. It is specifically designed for horizontal mounting and is capable of handling pressure from under the disc, ensuring silent closing during operation.

• Constructed from low lead bronze for safe drinking water use.
• Threaded end connections for easy installation.
• Suitable for gas, oil, or water applications.

Product Highlights

Ideal for various general-purpose applications, this check valve allows for efficient flow control while ensuring compliance with low lead regulations.

Product Information

Standard Information

• Country of Origin: CN
• Weight: 0.4 lbs

Technical Specifications

• Valve Type: Check Valve
• Material: Bronze
• ANSI/Pressure Rating: 250 WOG
• End Connection: Threaded
• Body Style: Spring Loaded Lift
• Seat Material: Bronze
• Disc Material: PTFE
• Application - Valves: General Purpose
• Cracking Pressure: 0.75 psi to 1 psi
• Flow Design: Single
• Flow Rate: 4.1 GPM
• Overall Height: 2 3/32 inches
• Mounting Orientation: Horizontal
• Overall Length: 1.22 inches
• Pipe Size: 1/2 inches
• Max. Pressure (cwp): 250 psi
• Operating Temperature - Maximum: 353°F
• Operating Temperature - Minimum: -20°F
