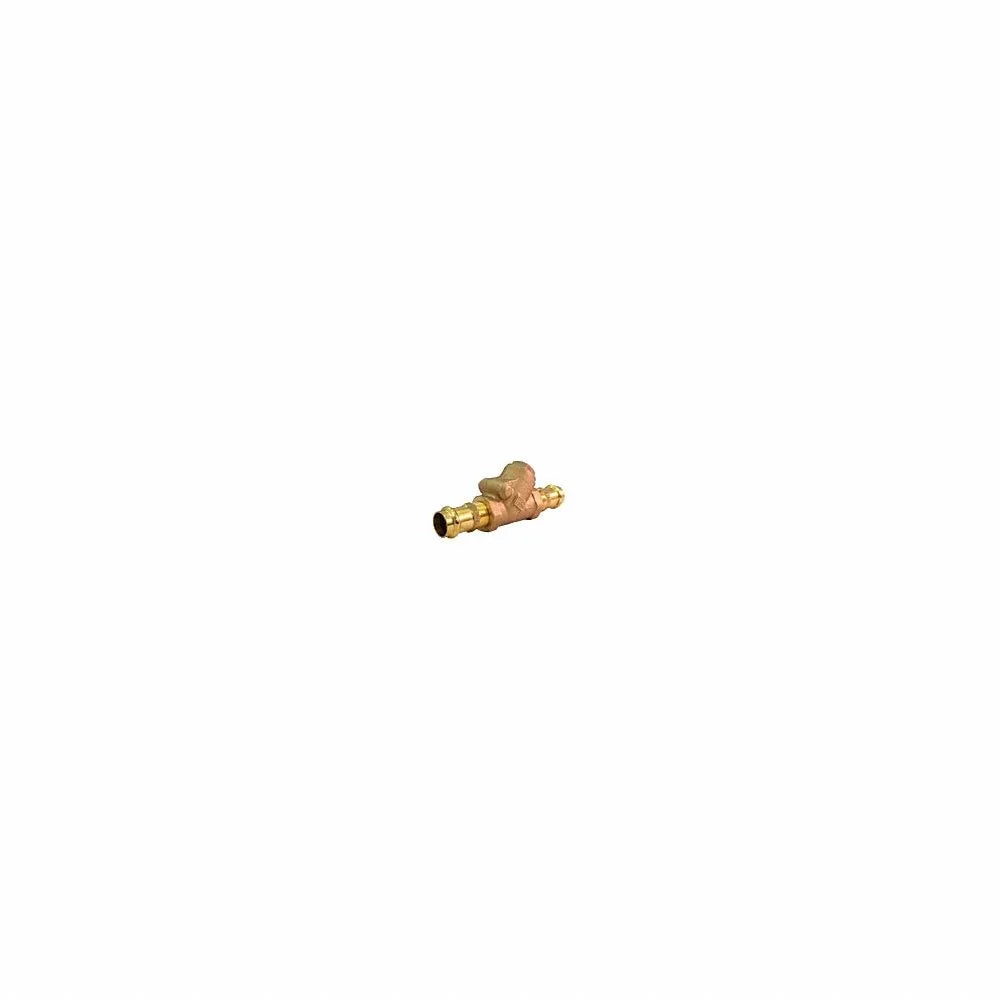

MILWAUKEE UP509-P2-100 Swing Check Valve Low Lead Bronze 1 Inch

Product Description

The Milwaukee UP509-P2-100 is a swing check valve designed for horizontal setup. Made from low lead bronze, this valve features a one inch size. It uses a swing check mechanism and works efficiently with water. The valve conforms to MSS SP-80 TYPE 3 standards.

• Body material: Bronze
• Press connection type
• NSF 61 compliant

Product Highlights

This swing check valve ensures reliable flow control in plumbing systems.

Product Information

Standard Information

• Item: Swing Check Valve
• Body Material: Bronze

Technical Specifications

• Check Mechanism: Swing
• Connection Size - Side 1: 1 inch
• Connection Size - Side 2: 1 inch
• Connection Type - Side 1: Press
• Connection Type - Side 2: Press
• Cracking Pressure: 0.5 psi
• Disc Material: Brass
• Flow Coefficient (cv): 31
• Flow Rate: 31 GPM
• For Media: Water
• Height - Cap To Inlet Center: 2 inches
• Counterweight: No Counterweight
• Max. Pressure (cwp): 200 psi
• Media Temp. Range: -20°F to 150°F
• Operating Temperature - Maximum: 150°F
• Operating Temperature - Minimum: -20°F
• Overall Length: 7.25 inches
• Pipe Size: 1 inch
• Seal Material: Brass
• Silent Check: Standard
• Standards: MSS SP-80 TYPE 3
• Valve Body Style: T-Style
• Valve Series: UP509
