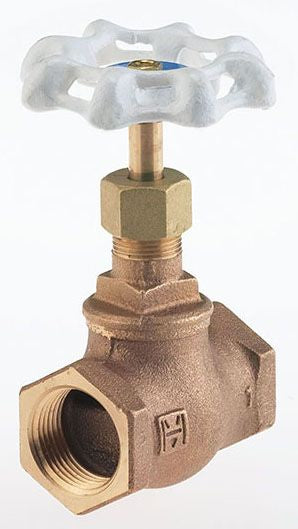

Milwaukee UP502-100 Ultra Pure Globe Valve 1 in FNPT

Product Description

The Milwaukee UP502-100 Ultra Pure Globe Valve is a one-inch, FNPT valve intended for potable water systems. It is built with a bronze body and trim, ensuring reliability in various applications. This valve can handle pressures up to three hundred psi and temperatures reaching two hundred degrees Fahrenheit. It is equipped with a handwheel actuator and features graphite packing softgoods.

• Low lead valve suitable for drinking water
• Includes bronze disc and threaded bonnet
• Malleable iron handwheel for easy operation

Product Highlights

This valve is ideal for use in plumbing and water supply systems, ensuring safe and efficient flow regulation.

Product Information

Standard Information

• Brand: Milwaukee
• MPN: UP502-100

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Hand Wheel Diameter: 2.75 inches
• Inlet to Outlet Length: 2.94 inches
• Nominal Size: 1 inch
• Pressure Rating: 300 psi
• Series: UP502
• Softgoods Material: Graphite Packing
• Temperature Rating: 200 degrees Fahrenheit
• Top to Inlet Center: 4.38 inches
• Trim Material: Bronze
