Milwaukee UP148-112 Bronze Gate Valve for Potable Water 300 psig WOG 1-1/2

Product Description

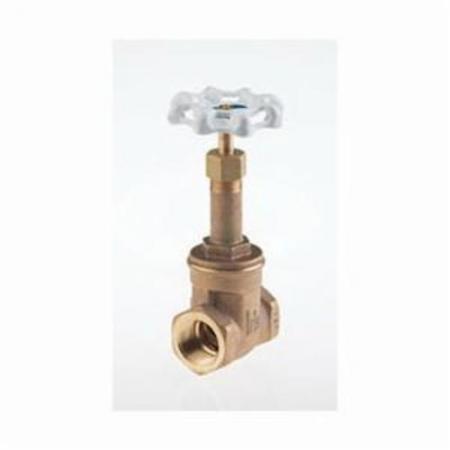

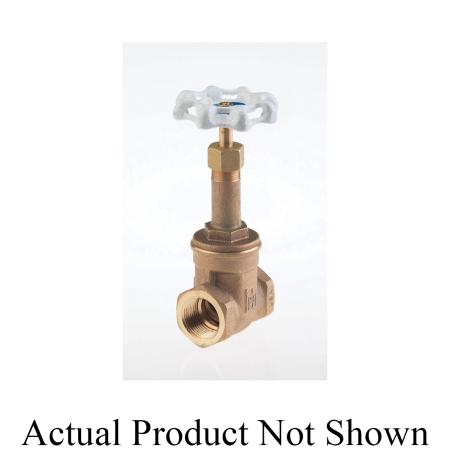

The Milwaukee Valve Company UP148-112 is a bronze gate valve designed for potable water applications. This valve features a one and one-half inch nominal size, FNPT end style and is rated for three hundred psi WOG pressure. The valve is suitable for domestic use and is compliant with lead-free standards.

• Low lead valve for potable water
• Rising stem for easy operation
• Solid wedge disc design

Product Highlights

This valve is designed to withstand high pressure and temperature while maintaining reliability and safety for water systems.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve Company
• UPC: 697988614024

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Nominal Size: 1-1/2 in
• End Style: FNPT
• Pressure Rating: 300 psi WOG
• Pressure Class: 300 lb
• Temperature Rating: 180 deg F
• Inlet to Outlet Length: 2.81 in
• Top to Inlet Center: 9-1/2 in
• Hand Wheel Diameter: 3-1/2 in
• Softgoods Material: Graphite Packing
• Domestic/Import: Domestic
• Series: UP148
