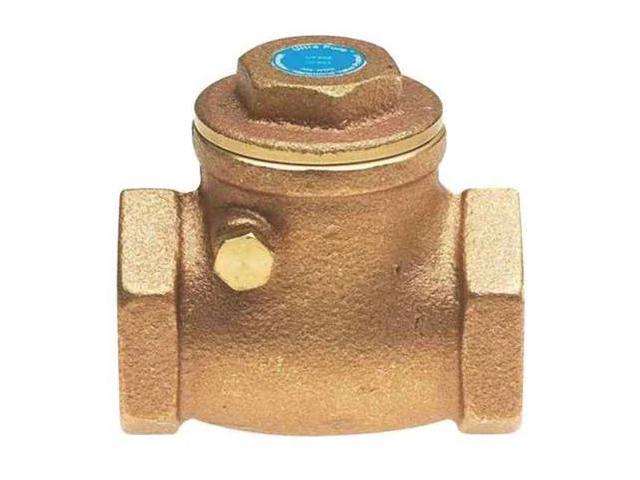

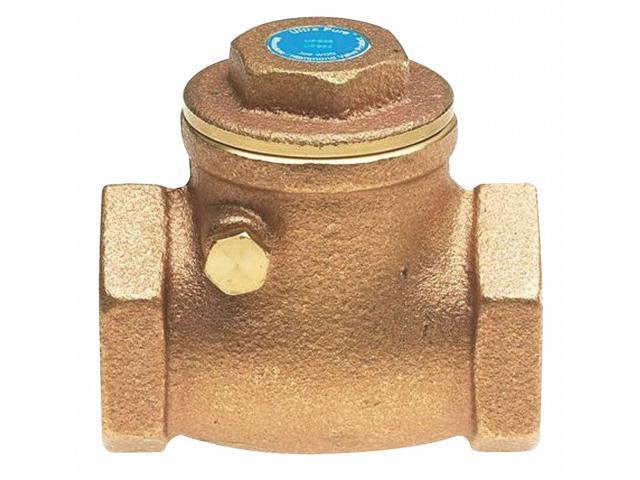

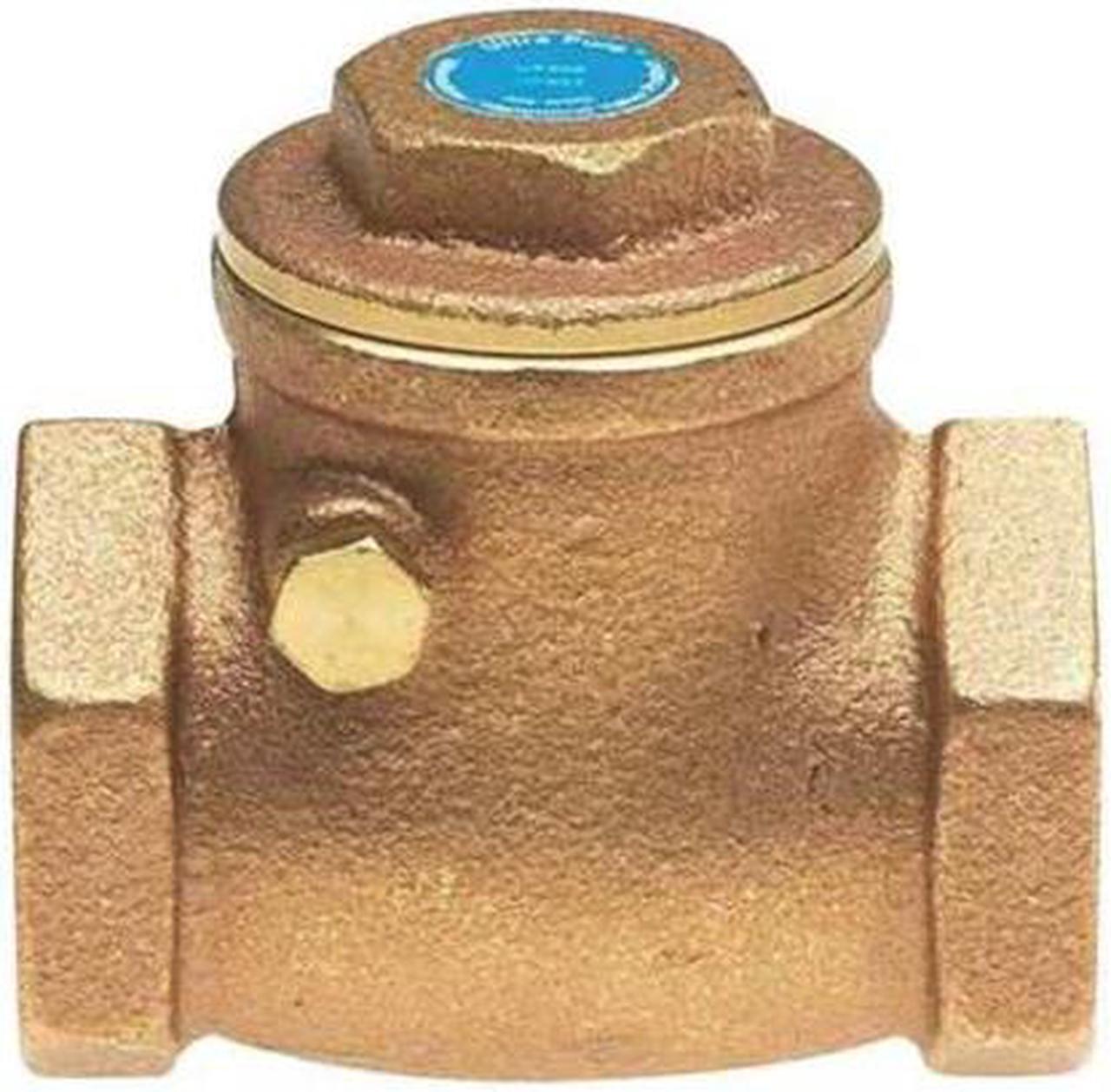

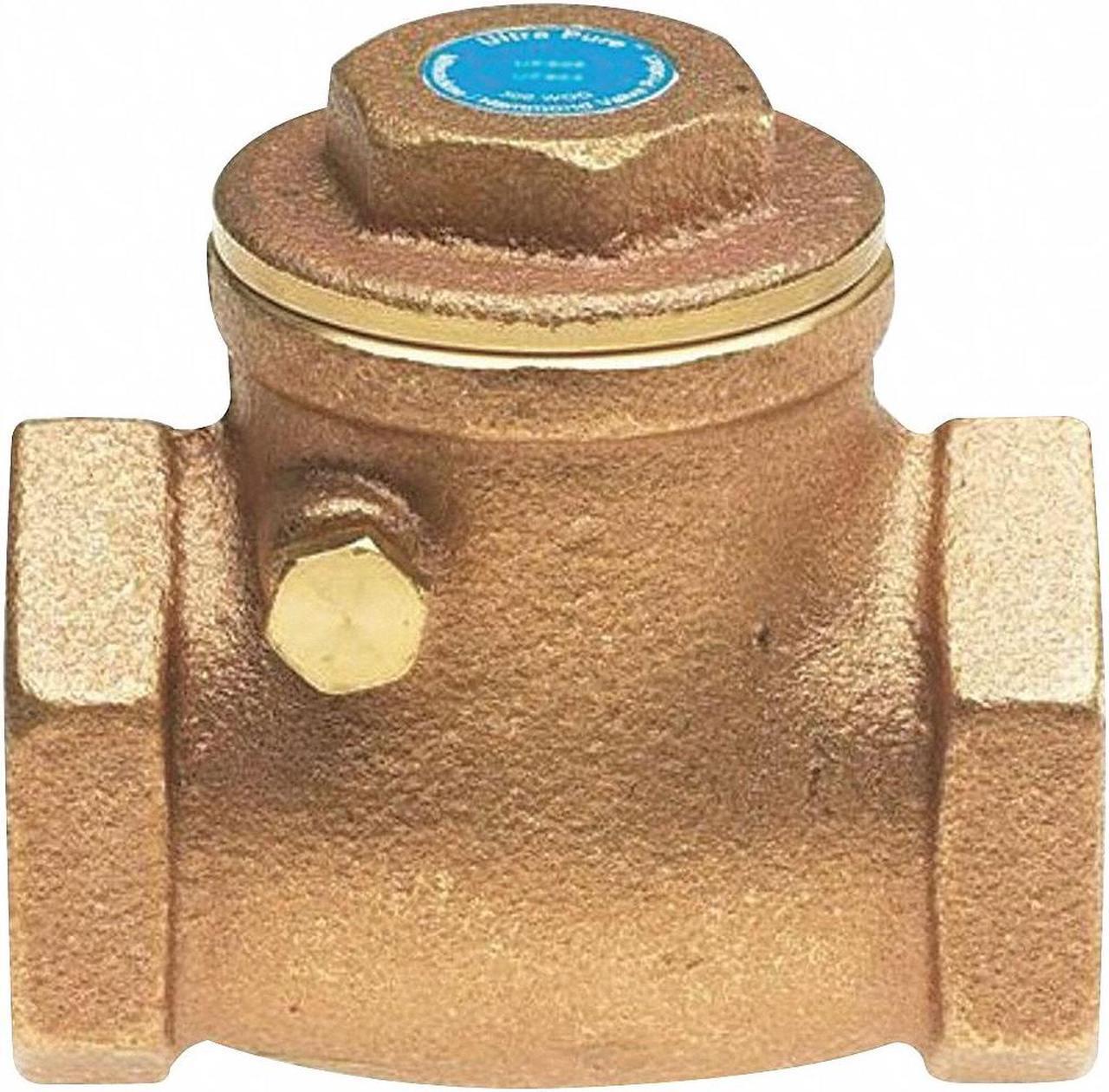

MILWAUKEE UP0967000112 Valve 1-1/2 Threaded Low Lead Brass Swing Check Valve

Product Description

The Milwaukee Valve UP0967000112 is a reliable check valve designed for single flow applications. It is made from brass and features an inline swing mechanism for efficient operation. This valve is suitable for pipe or tube sizes of one and a half inches and is constructed for FNPT x FNPT connections. It has a cracking pressure of zero point five psi, allowing it to function properly in both horizontal and vertical orientations.

• Body material: Brass
• Connection type: FNPT x FNPT
• Flow Rate: 76 gpm

Product Highlights

This check valve has durability and performance, making it suitable for various plumbing tasks.

Product Information

Standard Information

• Brand: MILWAUKEE VALVE
• Item: Check Valve

Technical Specifications

• Flow Design: Single
• Mechanism: Inline Swing
• Pipe Size: 1 1/2 inches
• Cracking Pressure: 0.5 psi
• Mounting Orientation: Horizontal, Vertical
• Seal Material: Brass
• Maximum Temperature: 150 degrees F
• Minimum Temperature: -20 degrees F
• Maximum Water Pressure: 200 psi @ 150 degrees F
• Seat Material: Metal
• Flow Rate: 76 gpm
