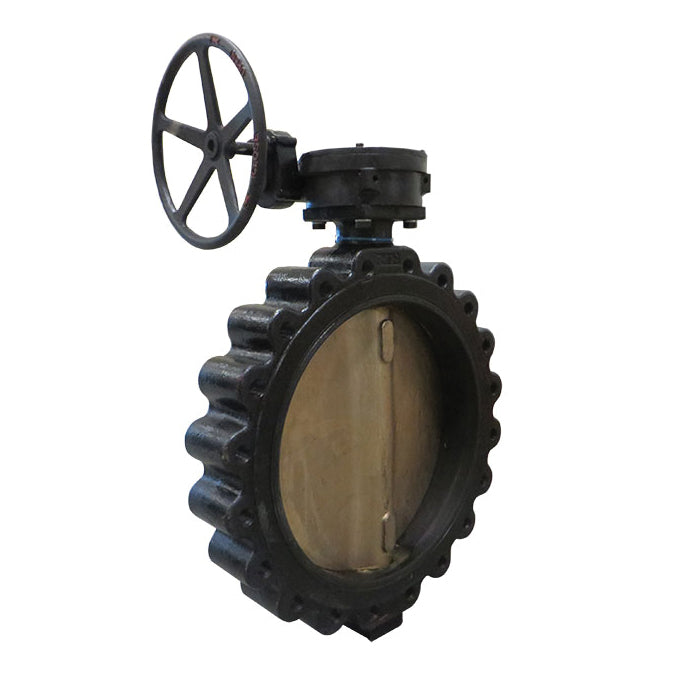

Milwaukee ML323EA14 ML Series Lug Style Butterfly Valve, 14 in Nominal

Product Description

Milwaukee Valve presents the ML323EA14, a Lug Style Butterfly Valve. This valve is designed for applications requiring a reliable and durable solution. It features a nominal size of fourteen inches and a cast iron body.

• Gear actuator included
• Bubble tight shut-off functionality
• High maximum pressure rating

Product Highlights

The ML323EA14 valve is ideal for controlling the flow of liquids in various systems. Its robust design ensures longevity in demanding conditions.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Manufacturer Part Number: ML323EA14

Technical Specifications

• Actuator Type: Gear
• Body Material: Cast Iron
• Dimensions: 28.81 inches High
• Disc Material: Aluminum Bronze
• Domestic/Import: Domestic
• Inlet to Outlet Length: 3.19 inches
• Nominal Size: 14 inches
• Series: ML Series
• Softgoods Material: Buna-N/EPDM/FKM
• Standards/Approvals: ANSI 4140/AISI 6150 Stem Pin, ABS Type Approved Cat A CFR-46, API-609, ASTM A126 Class B/B148 Body, MSS SP-67, PROP65 Compliance
• Stem & Pin Material: 416 Stainless Steel (Stem), Alloy Steel (Stem Pin)
• Type: Lug Style
