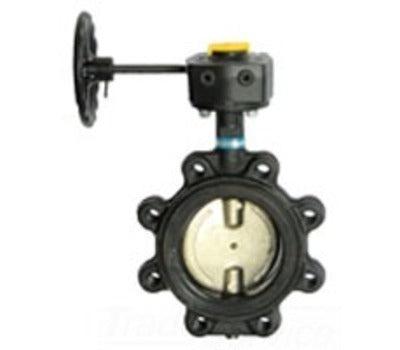

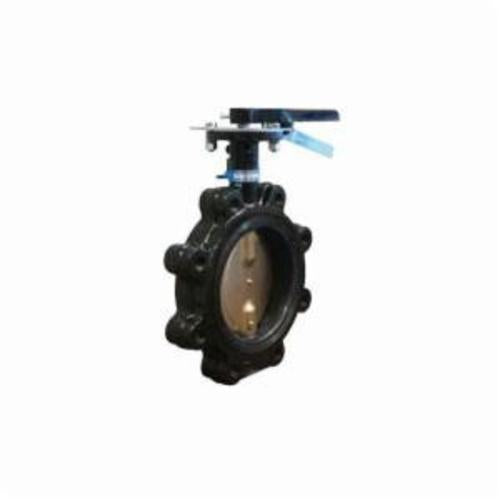

MILWAUKEE ML233EDN Milwaukee Valve 4-Inch Lug Style Butterfly Valve

Product Description

The Milwaukee Valve ML233EDN is a 4-inch lug style butterfly valve suitable for shut-off applications. It features a durable ductile iron body, equipped with an aluminum bronze disc for enhanced performance and an EPDM liner for effective sealing. This valve is designed for bi-directional dead end service, operating reliably under pressures up to 200 psig.

• Ductile iron body ensures strength
• Aluminum bronze disc enhances durability
• EPDM liner provides excellent sealing

Product Highlights

This valve is approved for use in category A service as outlined in title 46 code of federal regulations 56.20-15, making it a reliable choice for various industrial applications.

Product Information

Standard Information

• Brand: Milwaukee
• MPN: ML233EDN

Technical Specifications

• Nominal Size: 4 in
• Actuator Type: Lever Handle
• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Softgoods Material: EPDM
• Stem & Pin Material: 416 Stainless Steel (Stem)/Stainless Steel (Roll Pin)
• Type: Lug Style
• Top to Inlet Center: 7 in
• Dimensions: 23.38 in H
• Standards/Approvals: ASTM A536 Body, ASTM B148 Disc
• Domestic/Import: Domestic
• Series: ML Series
