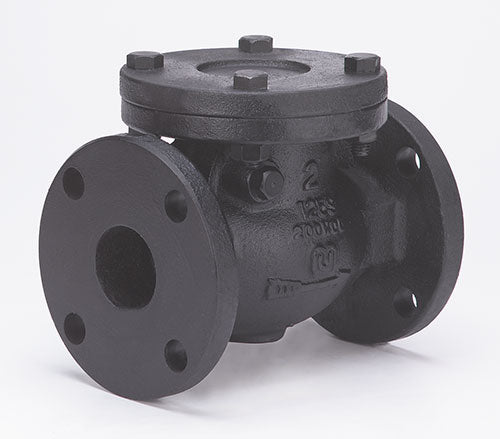

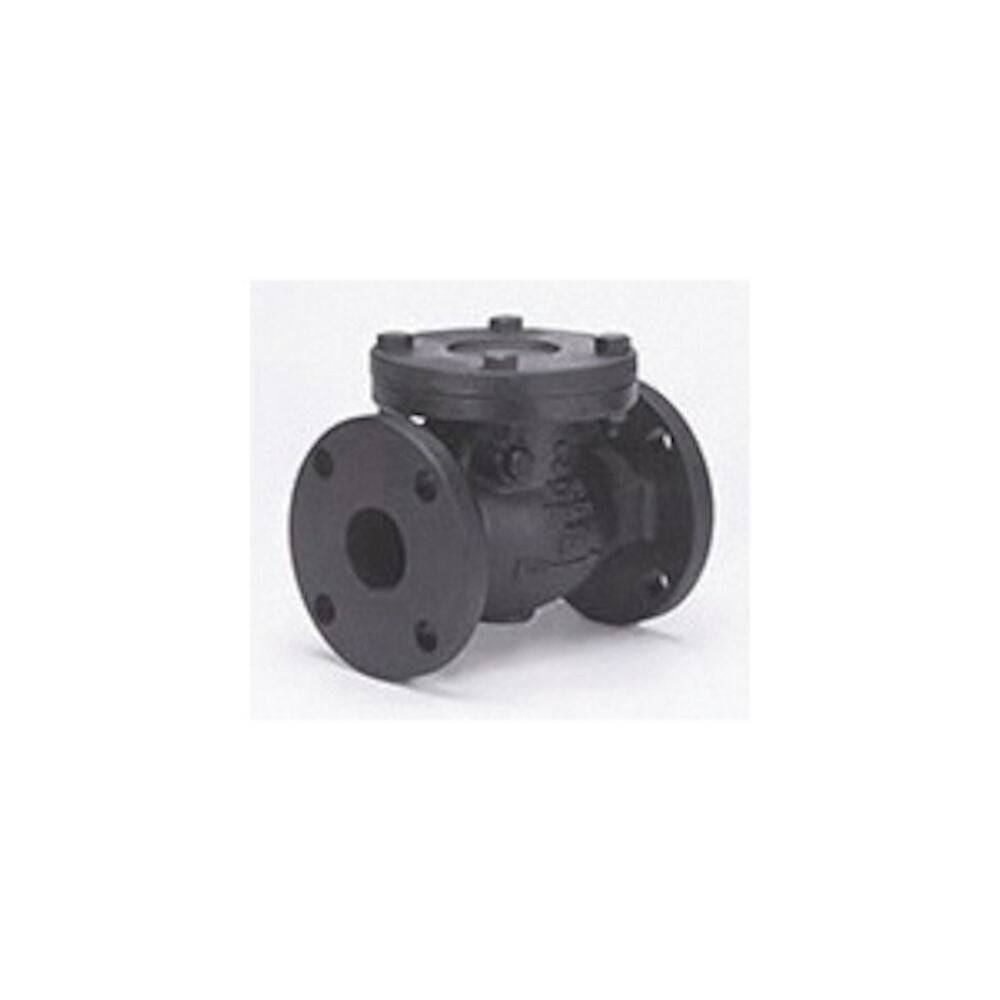

MILWAUKEE F2974M-400 4 in. Cast Iron Flanged Swing Check Valve

Product Description

The MILWAUKEE F2974M-400 is a four-inch flanged swing check valve. It is designed for horizontal installation and constructed with a robust cast iron body for durability. The valve features a bronze trim with a solid cast iron disc and utilizes a graphite gasket for effective sealing.

• Flanged end style for easy connection
• Constructed from durable cast iron
• Meets MSS SP-71 standards

Product Highlights

This check valve is suitable for a variety of plumbing applications where non-shock handling of pressure is required.

Product Information

Standard Information

• Brand: Milwaukee
• MPN: F2974M-400

Technical Specifications

• Body Material: Cast Iron
• End Style: Flanged
• Nominal Size: 4 inches
• Inlet to Outlet Length: 11-1/2 inches
• Manufacturer: Milwaukee Valve
• Series: F-2974M
• Softgoods Material: Graphite Gasket
• Top to Inlet Center: 6.69 inches
• Trim Material: Bronze Trim/Cast Iron Disc
• Type: Horizontal
• Non-shock Pressure Rating: 125 SWP
• Valve Type: Check Valve
• ANSI/Pressure Rating: 125 SWP - 200 WOG
• End Connection: Flanged
• Body Style: Horizontal Swing
• Seat Material: Bronze
• Disc Material: Solid
