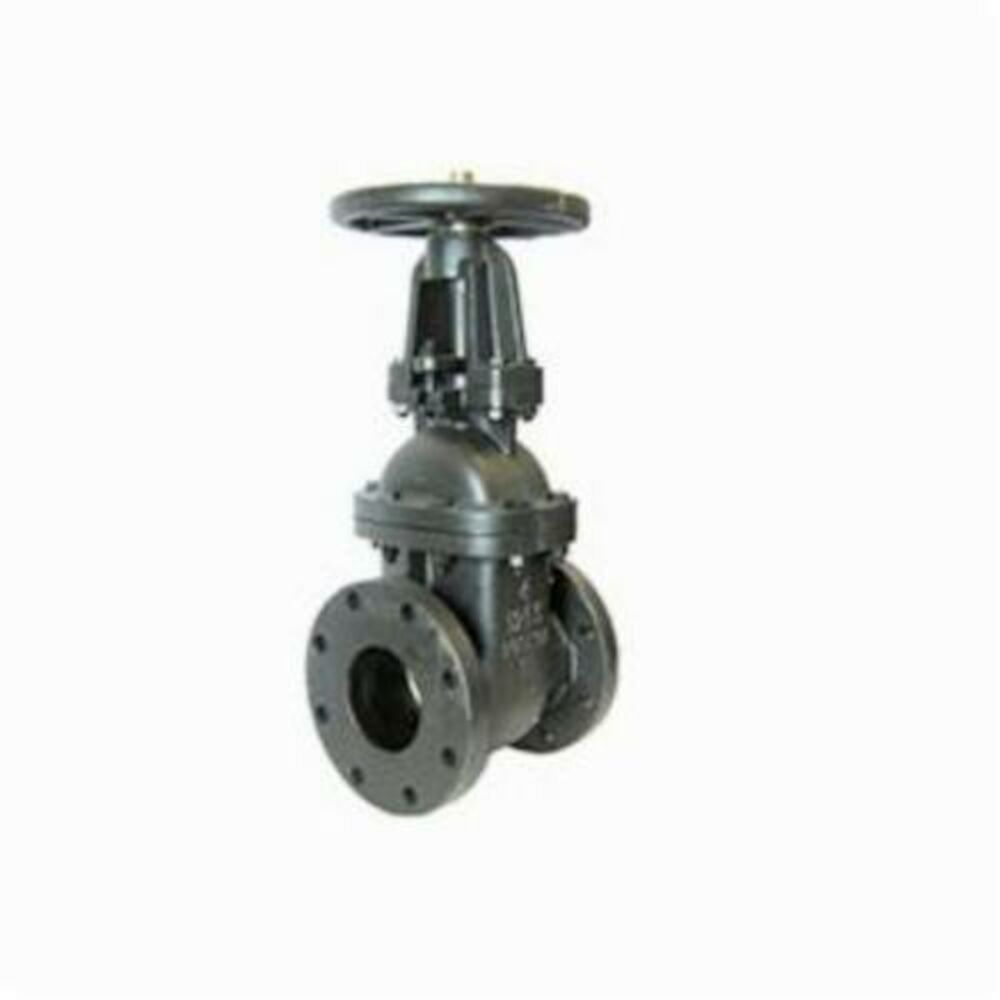

Milwaukee F2885M-800 8 in. Cast Iron Flanged Gate Valve

Product Description

The Milwaukee F2885M-800 is an eight-inch gate valve designed for fluid control applications. This valve features a robust cast iron body with a flanged end for secure connections. It is part of the F-2885-M series and has a pressure rating of 200 psi WOG. The valve is operated using a fourteen-inch handwheel, allowing for manual control. Its unique design includes a separate yoke bolted to the bonnet and an outside stem and yoke configuration, enhancing durability and operability. The trim material is brass with softgoods made from graphite packing and body gasket.

• Features a flanged end style for secure connection.
• Utilizes a handwheel actuator for manual operation.
• Constructed with a cast iron body and brass trim.

Product Highlights

This gate valve is ideal for various plumbing applications requiring reliable fluid control.

Product Information

Standard Information

• Actuator Type: Handwheel
• Body Material: Cast Iron

Technical Specifications

• End Style: Flanged
• Nominal Size: 8 inches
• Hand Wheel Diameter: 14 inches
• Inlet to Outlet Length: 11-1/2 inches
• Top to Inlet Center: 40.13 inches
• Softgoods Material: Graphite Packing/Body Gasket
• Trim Material: Brass
• Manufacturer: Milwaukee Valve
