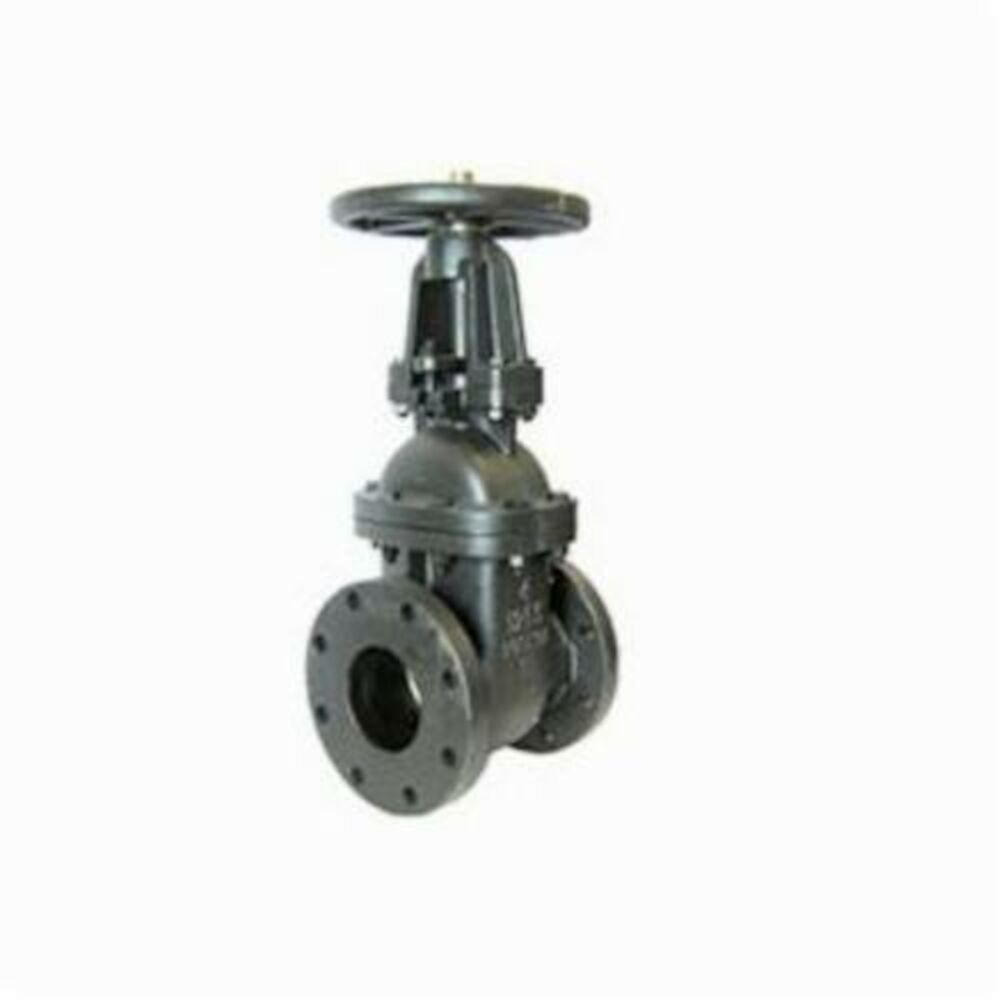

Milwaukee F2885M-600 6-Inch Cast Iron Flanged Gate Valve

Product Description

The Milwaukee F2885M-600 is a six-inch gate valve designed to control fluid flow. It is constructed with a cast iron body and features brass trim. The valve includes flanged end connections for secure installation. Activation is facilitated by a cast iron handwheel, allowing for manual control of the solid wedge disc. Additionally, it has a separate yoke bolted to the bonnet and operates with an outside stem and yoke (OS&Y) design. It is gland packed to improve sealing effectiveness.

• Handles pressure up to 200 psi WOG.
• Inlet to outlet length is ten and a half inches.
• Center distance from top to inlet is thirty point thirteen inches.

Product Highlights

This valve is suitable for applications that require manual flow control, offering durability and reliability for plumbing systems.

Product Information

Standard Information

• Brand: Milwaukee Valve
• Actuator Type: Hand Wheel

Technical Specifications

• Body Material: Cast Iron
• End Style: Flanged
• Inlet to Outlet Length: ten and a half inches
• Nominal Size: six inches
• Pressure Rating: 200 psi WOG
• Series: F-2885-M
• Softgoods Material: Graphite Packing/Body Gasket
• Top to Inlet Center: thirty point thirteen inches
• Trim Material: Brass
• Hand Wheel Diameter: twelve inches
