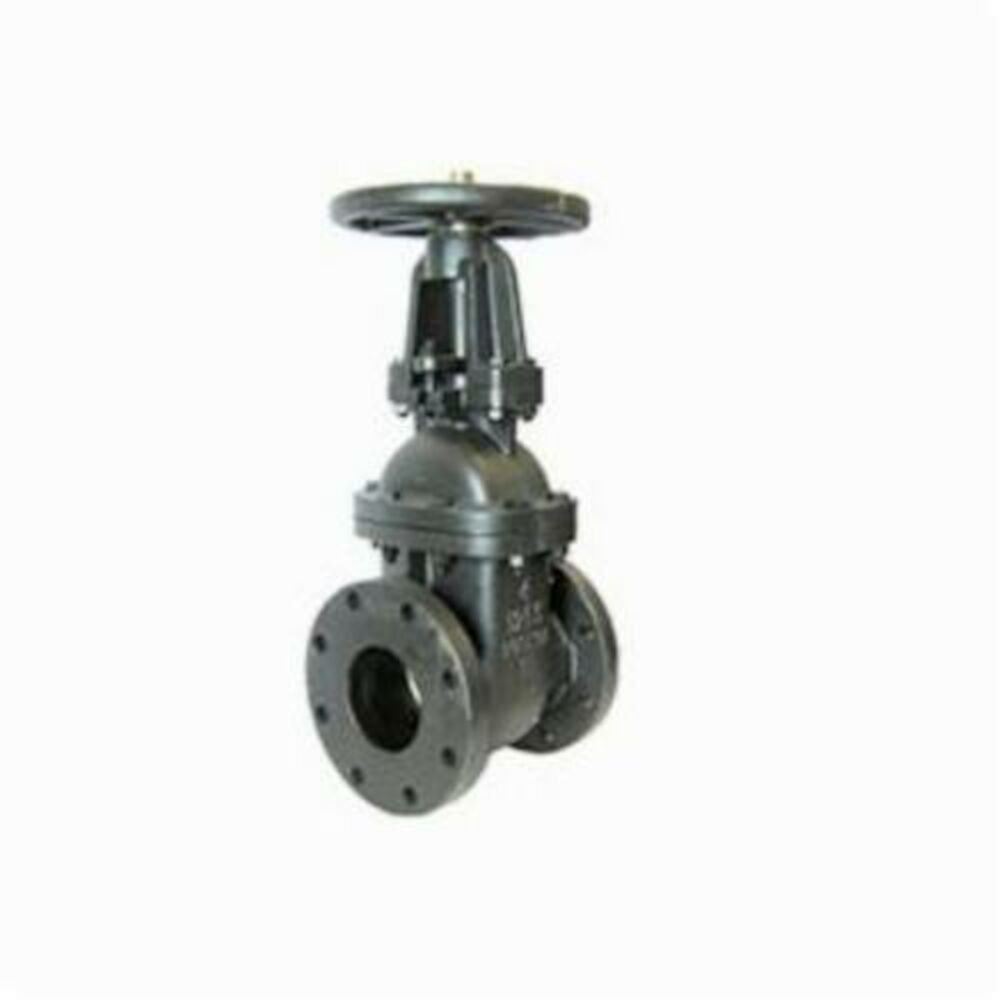

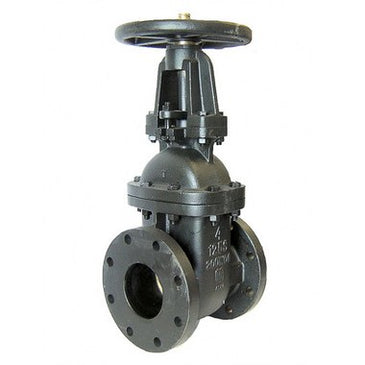

MILWAUKEE F2885M-300 3-Inch Cast Iron Gate Valve

Product Description

The MILWAUKEE F2885M-300 is designed as a three-inch gate valve with a cast iron body and flanged connections. This valve features a strong solid wedge disc and a reliable bolted bonnet, providing durability and performance. It includes bronze mountings and an outside stem and yoke design for ease of use. Operation is manual and is facilitated through a sturdy cast iron handwheel. Additionally, the valve has a gland packing setup and a yoke that is integrated with the bonnet.

• Durable cast iron body
• Manual operation with handwheel actuator
• Flanged connections for secure installation

Product Highlights

Ideal for various plumbing applications, this valve ensures effective flow control and reliability in industrial settings.

Product Information

Standard Information

• Manufacturer: Milwaukee Valve
• Item Number: F2885M-300

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Iron
• End Style: Flanged
• Nominal Size: 3 inches
• Hand Wheel Diameter: 8 inches
• Inlet to Outlet Length: 8 inches
• Series: F-2885-M
• Softgoods Material: Graphite Packing/Body Gasket
• Top to Inlet Center: 18-3/4 inches
• Trim Material: Brass
• Connection: Flanged x Flanged
• Pressure Rating: 125 PSI SWP / 200 PSI WOG
• Bonnet: Bolted Bonnet
• Disc Type: Solid Wedge
• Product Type: IBBM
• Size: 3 inches
