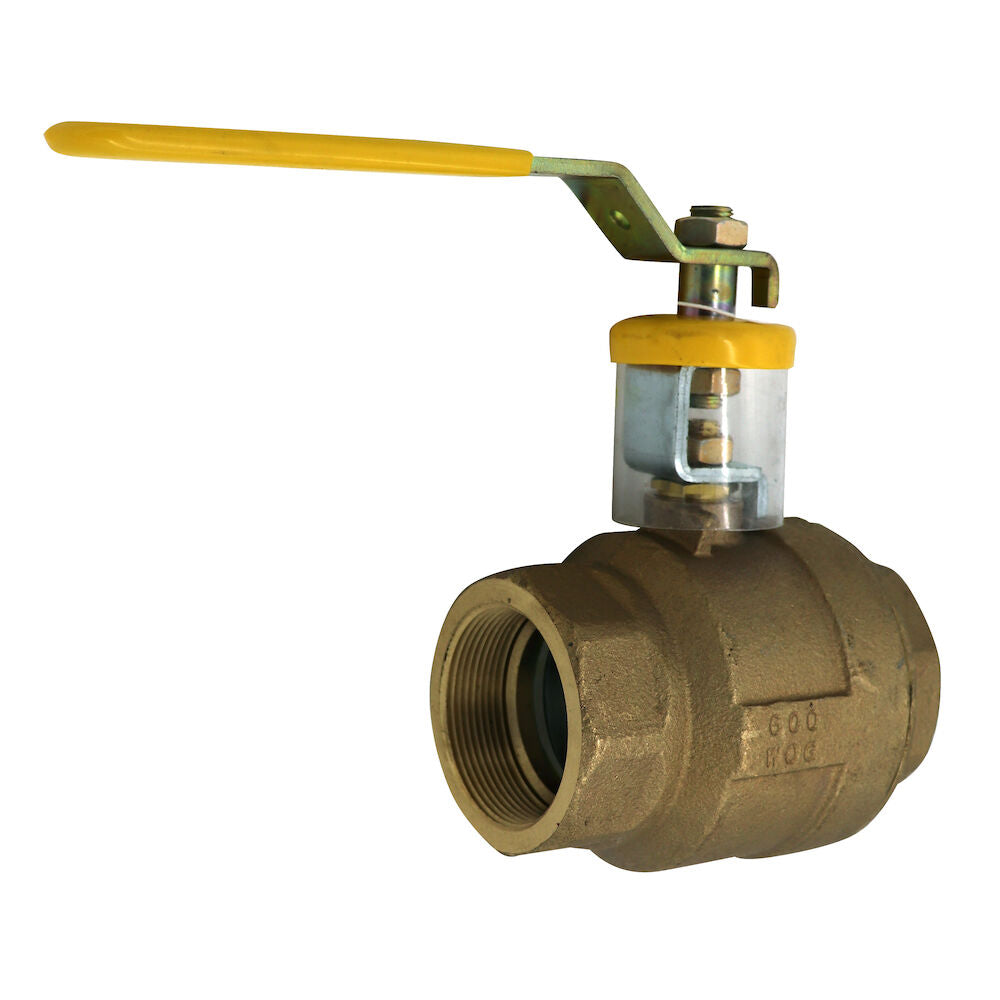

MILWAUKEE BA400-112 Bronze Ball Valve

Product Description

The MILWAUKEE BA400-112 is a two-piece ball valve designed for industrial use. This valve has a cast bronze body and features a chrome-plated brass ball. It has a full port design with a one point five six inch orifice. The valve includes a threaded end style which allows for secure connections.

• Equipped with extension stem and blow-out proof design.
• Includes a zinc-plated steel handle for manual operation.
• Features 15% glass-filled PTFE seat and 25% glass-filled RPTFE thrust washer.

Product Highlights

Suitable for a range of industrial applications, featuring robust construction materials that enhance reliability and performance.

Product Information

Standard Information

• Brand: MILWAUKEE
• MPN: BA400-112

Technical Specifications

• Body Material: Cast Bronze
• End Style: Threaded
• Nominal Size: 1-1/2 inches
• Port Type: Full
• Softgoods Material: RPTFE
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 4.28 inches
• Orifice Size: 1.56 inches
• Pressure Rating: 600 psi
• Series: BA-400
• Top to Inlet Center: 3 inches
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
• Height: 7.62 cm
• Length: 10.87 cm
• Width: 3.96 cm
• Country of Origin: US
• Weight: 1.926 kg
