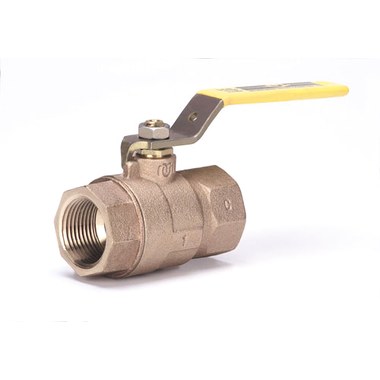

Milwaukee BA100S-38 3/8 Inch Bronze Ball Valve

Product Description

The Milwaukee BA100S-38 is a two-piece ball valve made from bronze. It has 3/8-inch threaded connections for easy integration into various plumbing systems. The valve features a stainless steel ball and stem which provide durability and reliability for flow control. It is designed with a standard port configuration, suitable for managing water and other fluids effectively.

• 3/8-inch threaded connections for system integration.
• Flow control with a standard port configuration.
• Durable stainless steel ball and stem.

Product Highlights

The BA100S-38 is ideal for various plumbing applications, offering efficient flow management without the risk of contamination, as it is not intended for potable water.

Product Information

Standard Information

• Brand: Milwaukee Valves
• Product Type: 2PC

Technical Specifications

• Item Number: BA100S-38
• End Connection: Threaded
• Material: Bronze
• Port Type: Full
• Pressure: 600WOG/150SWP
• Size: 3/8 inches
• Ball Material: Chrome Plated Brass
• Body Material: Cast Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 1.86 inches
• Nominal Size: 3/8 inches
• Orifice Size: 0.38 inches
• Pressure Rating: 600 psi
• Series: BA-100
• Softgoods Material: RPTFE
• Top to Inlet Center: 1.81 inches
• Trim Material: Brass Stem and RPTFE Seat
• Type: 2-Piece
