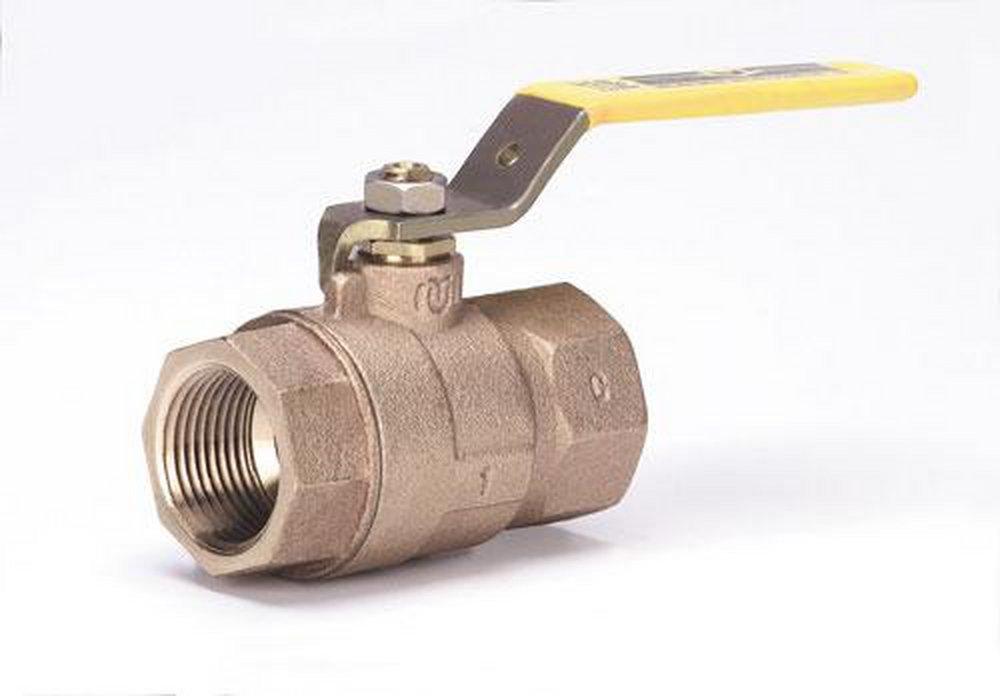

MILWAUKEE BA100S-34 Ball Valve

Product Description

The MILWAUKEE BA100S-34 is a two-piece ball valve designed for reliable fluid control. It has a bronze body that ensures durability and features a full port for maximum flow capacity. The valve includes a ball and stem made from 316 stainless steel, along with an RPTFE seat for effective sealing. The handle is made from zinc-plated steel for manual operation. It can manage a pressure rating of six hundred psi and handle steam pressures up to one hundred fifty psi. Designed with a blow-out proof stem, the valve also works under vacuum service down to twenty-nine inches of mercury. It is important to note that this valve is not suitable for potable water systems.

• Durable bronze body construction
• Blow-out proof stem design
• RPTFE softgoods for enhanced sealing

Product Highlights

This valve offers reliable performance and is designed for use in a variety of fluid control applications.

Product Information

Standard Information

• Brand: MILWAUKEE
• MPN: BA100S-34

Technical Specifications

• Body Material: Bronze
• End Style: NPT
• Nominal Size: three-fourth inch
• Port Type: Full
• Softgoods Material: RPTFE
• Ball Material: 316 Stainless Steel
• Inlet to Outlet Length: two point sixty-four inches
• Orifice Size: zero point seventy-six inches
• Pressure Rating: six hundred psi
• Series: BA-100S
• Top to Inlet Center: two point zero eight inches
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Type: Two-Piece
