Milwaukee BA-480B-212 MILWAUKEE VALVE 2 1/2 ULTRAPRESS BALL VALVE

Product Description

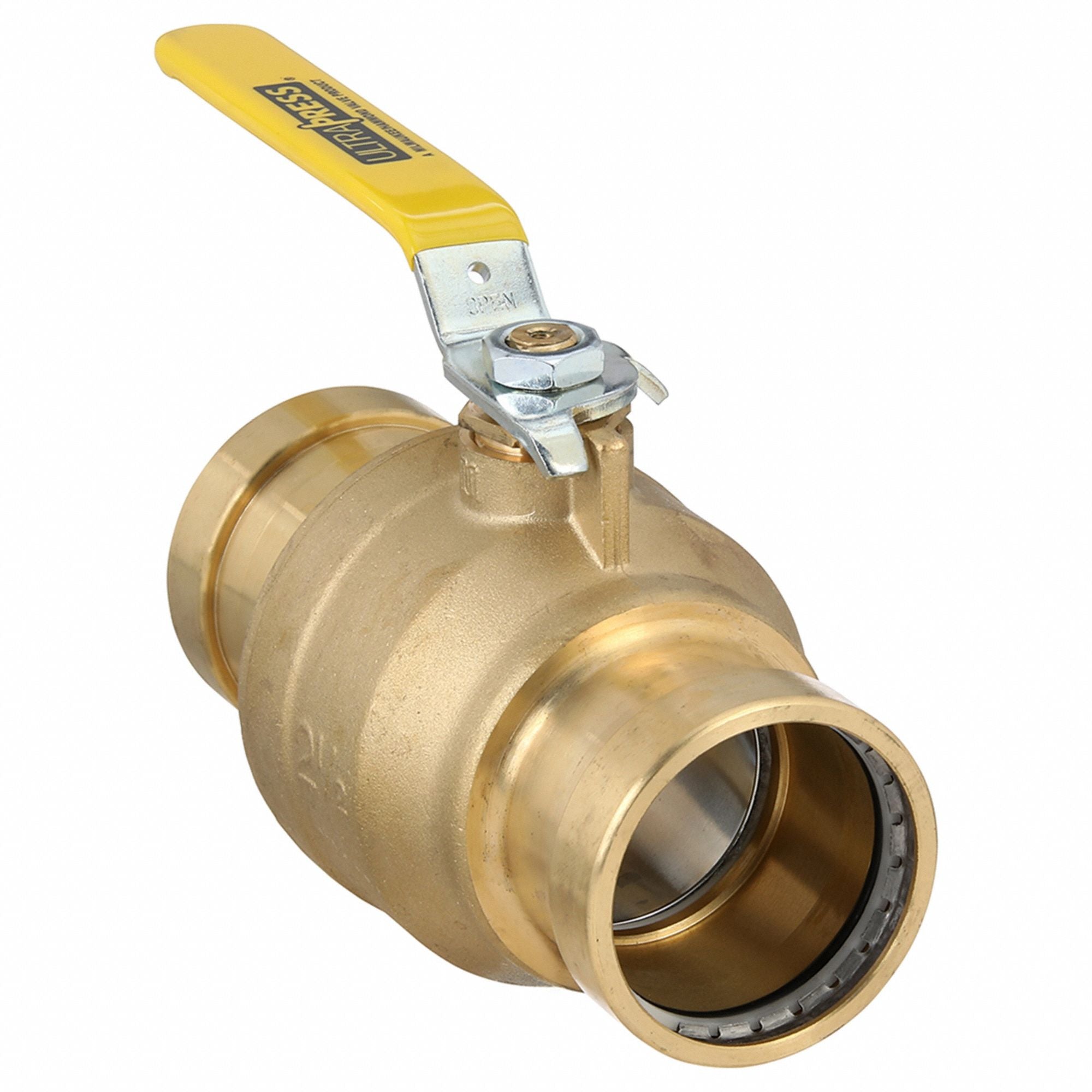

The Milwaukee Valve BA-480B-212 is a two and a half inch UltraPress ball valve. This two-piece brass ball valve is designed with press x press ends, making it ideal for use in copper tubing systems. It features a full port design and has a lever handle for easy operation.

• Two-Piece Brass Construction
• Full Port for Maximum Flow
• Blowout-Proof Stem for Safety

Product Highlights

This valve is suitable for commercial applications and potable water systems. It ensures reliable performance with a forged brass body and a blowout-proof stem.

Product Information

Standard Information

• Type: 2-Piece Ball Valve
• Actuation Type: Lever Handle

Technical Specifications

• Nominal Size: 2-1/2 Inch
• End Connection: Press x Press
• End to End Distance: 8.23 Inch
• Ball Material: ASTM B283 C27450 Chrome Plated Brass
• Body Material: ASTM B283 C27450 Forged Brass
• Stem Material: ASTM B283 C27450 Forged Brass
• Seat Material: Reinforced PTFE
• Seal Material: ASTM D2006 Buna-N O-Ring Stem, PTFE Packing
• Handle Material: Zinc Plated Steel
• Port Type: Full
• Temperature Rating: 250 Deg F
• Pressure Rating: 200 PSIG
• Application: Commercial, Potable Water
• Applicable Standard: NSF/ANSI 372, MSS SP-110, IAPMO
• Torque Rating: 200 Inch-Pound
• Inlet to Outlet Length: 8.23 in
• Orifice Size: 2.18 in
