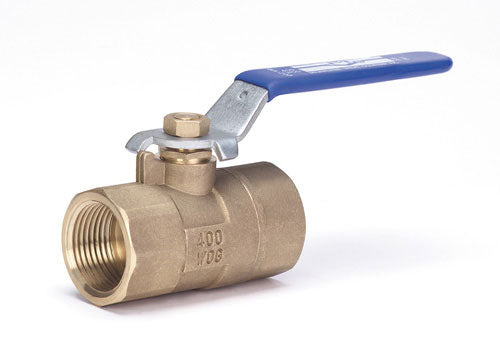

Milwaukee BA-200 - 34 ball valve 3/4 in

Product Description

The Milwaukee BA-200 - 34 ball valve is a 2-piece valve with a forged brass body and a 3/4 inch NPT connection. It has a full port design with a 0.59 inch orifice and is suitable for pressure up to 400 psi. The valve features a chrome plated brass ball and a brass stem with PTFE seat trim.

• Blow-out proof stem
• Not intended for use in potable water
• Valves rated for vacuum service to 29 in Hg

Product Highlights

This Milwaukee ball valve is designed for durability and reliable performance in various applications. It features a zinc plated steel handle.

Product Information

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: BA-200 - 34
• Country of Origin: US

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass
• End Style: NPT
• Inlet to Outlet Length: 2.55 in
• Nominal Size: 3/4 In
• Orifice Size: 0.59 in
• Port Type: Full
• Pressure Rating: 400 psi
• Series: BA-200
• Top to Inlet Center: 1.61 in
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
• Height (cm): 4.09
• Length (cm): 6.48
• Width (cm): 2.77
