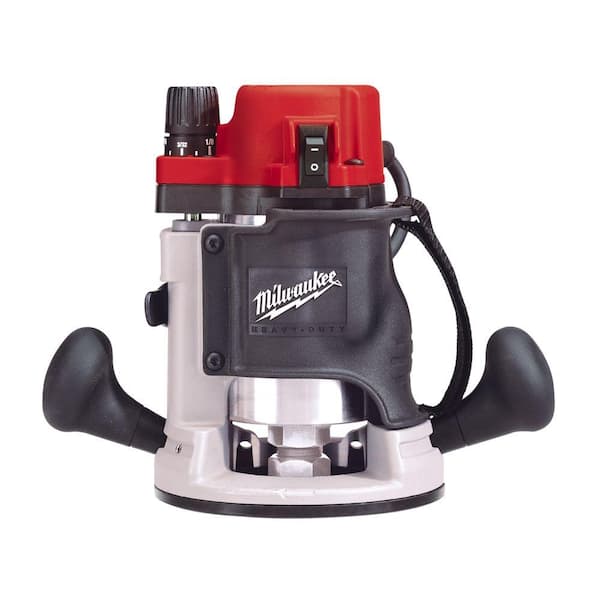

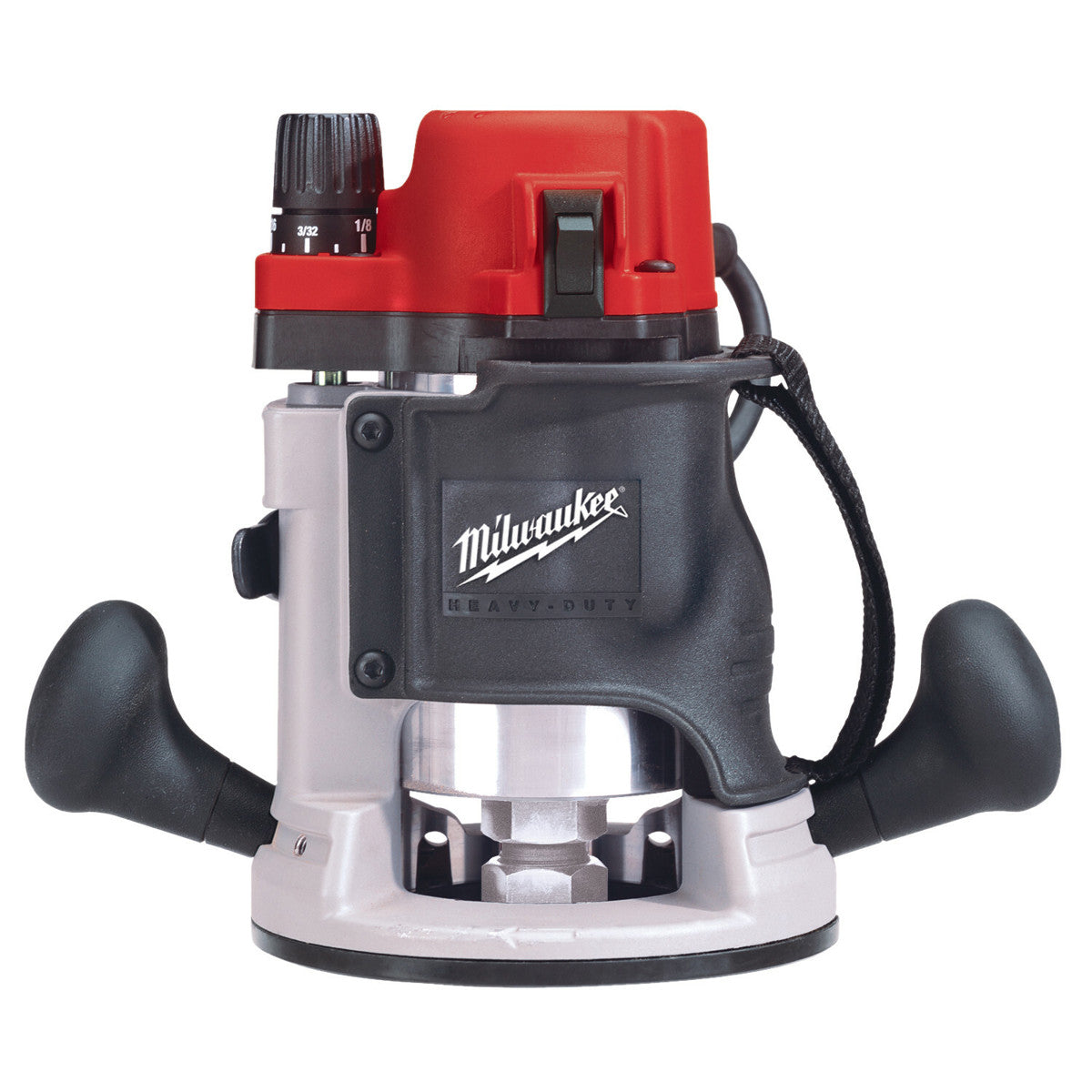

Milwaukee 5615-20 Router 1-3/4 HP

Product Description

The MILWAUKEE 5615-20 Router delivers 1-3/4 max HP (11 amp, 24,000 RPM) Milwaukee motor. The BodyGrip design features a comfortable over-molded rubber grip wrapped around the base with an adjustable hand strap that allows for left and right-handed operation. It also has two over-molded palm-grip side handles for superior comfort, maneuverability and control.

• Exclusive BodyGrip design
• 1-3/4 max HP, 11 amp, 24,000 RPM Milwaukee motor
• Premium electronic motor feedback maintains speed and power under load

Product Highlights

This router features a linear depth adjustment system for precise cuts. The BodyGrip design changes the center of gravity, putting your hands closer to the workpiece for unmatched stability and reduced vibration.

Product Information

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 5615-20
• Country of Origin: China

Technical Specifications

• MPN: 5615-20
• ItemID: MIL561520
• UPCCode: 45242032815.0
• Manufacturer: Milwaukee Electric Tool
• Brand: Milwaukee
• UOM: Each
• ProductCategory: Power Tools & Accessories
• Catalog Number: 5615-20
• Country of Origin: China
• Made in USA: No
• UPC: 045242032815
• GTIN: 00045242032815
• Voltage: 120 Volt
• Maximum PPM: 24000
• Power (horsepower): 1-3/4 HP
• Depth Adjustment: 1-21/32"
• Plunge Base: Yes
• Soft Start: Yes
• Dust Collection: Yes
• Ergonomics: Exclusive tractable BodyGrip with adjustable handstrap
• LED Lighting: No
• Collet Size: 1/2 in.
• Build Quality: Durably built from precision-milled magnesium
• Amperage Rating: 11 A
• Chuck Size: 1/4 in, 1/2 in
• Horsepower: 1-3/4 hp
• Housing Material: Aluminum
• Switch Type: Rocker
• Tool/Kit: Kit
• Type: Double Insulated
• Voltage Rating: 120 VAC/VDC
• Amperage: 11 Amp
• Cord Length: 96.0 in
• Cord Type: Corded
• Handle Type: Plastic
• Max Rpm: 24000 rpm
• Net Weight: 8.8 lb
• No Load Speed: 24000 r/min
• Power Source: Corded (8 ft. Fixed)
• Construction Type: Double Insulated
• Product UPC: 04524203281
• Max HP: 1.75
• No Load RPM: 24,000
• Collet Diameter: 1/4", 1/2"
• Base Type: Fixed BodyGrip®
