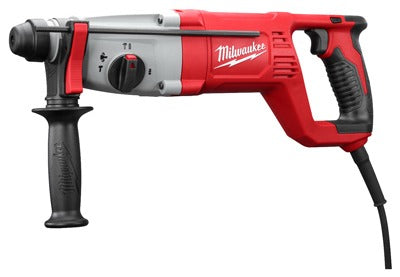

Milwaukee 5262-21 1 Inch Sds Plus Rotary Hammer Kit 8A

Product Description

The MILWAUKEE ELECTRIC TOOL CORP 5262-21 is a 1-inch SDS Plus rotary hammer kit built for demanding concrete, masonry, and anchor installation work. The 8-amp motor delivers up to 1,620 RPM and 5,860 BPM, with 2.1 ft-lb of impact energy for fast, hard hits in dense material. Three operating modes — rotary hammer, hammer only, and rotation only — let the tool handle everything from drilling to light chiseling. A mechanical clutch protects the tool and operator when the bit binds. Licensed contractors, electricians, plumbers, and general trade professionals rely on this class of tool for anchor setting, conduit knockout, and core drilling prep.

This rotary hammer kit is suited for residential and commercial jobsite use. Typical applications include drilling into concrete block, brick, and poured concrete for anchor bolts, pipe hangers, conduit straps, and similar fastening work. The variable-position chisel stop and rotating brush plate extend the tool into light demolition tasks. The kit format includes the depth rod, side handle, and carrying case, making it ready for field deployment without sourcing accessories separately.

Key Features

• 8-amp motor produces 0-1,620 RPM and 0-5,860 BPM for fast material removal
• 2.1 ft-lb of impact energy delivers harder hits in dense concrete and masonry
• Three-mode operation: rotary hammer, hammer only, and rotation only
• Mechanical clutch engages when the bit binds, protecting the tool and reducing kickback risk
• Variable-position chisel stop allows bit angle adjustment regardless of material orientation
• Rotating brush plate equalizes power in forward and reverse, aiding jammed-bit removal and extending brush life
• Kit includes depth rod, side handle, and carrying case

Compatibility

Designed for use with standard SDS Plus shank bits and accessories. Accepts any SDS Plus drill bit, chisel, or core bit from compatible accessory lines.

Installation Notes

Installation and operation should be performed by qualified trade professionals familiar with rotary hammer tool safety. Always disconnect the tool from the power source before changing bits or accessories. When drilling near embedded conduit, rebar, or utilities, locate them first to avoid contact. Follow applicable OSHA standards and local safety codes for concrete and masonry work, including dust control requirements for silica exposure.

Technical Specifications

• Chuck Type: SDS Plus
• Bit Diameter Capacity: 1 inch
• Motor: 8 amps
• No-Load Speed: 0-1,620 RPM
• Blows Per Minute: 0-5,860 BPM
• Impact Energy: 2.1 ft-lb
• Operating Modes: Rotary Hammer, Hammer Only, Rotation Only
• Package Weight: 22.82 pounds
• Unit of Measure: EA

Standard Information

• Brand: MILWAUKEE ELECTRIC TOOL CORP
• Manufacturer Part Number: 5262-21
