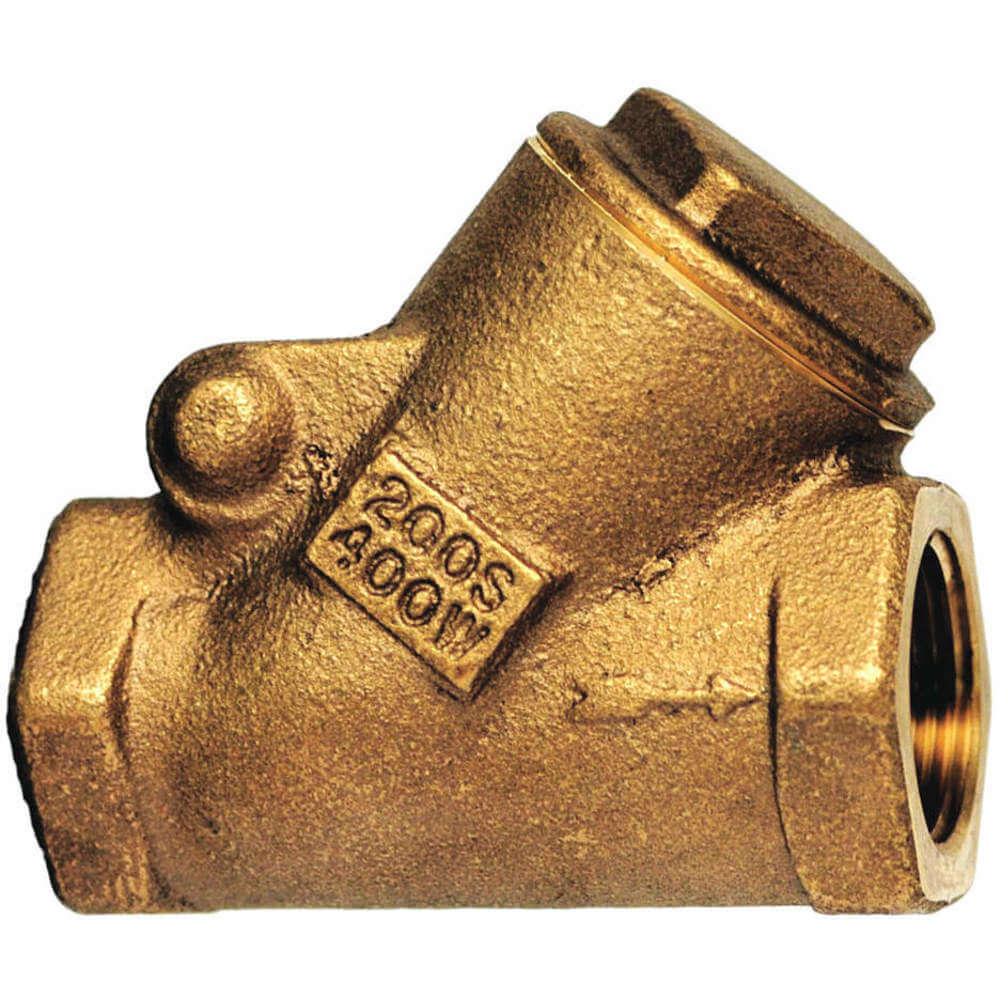

Milwaukee 509Y-114 Milwaukee Valve 509Y-114 1-1/4 Inch Bronze Swing Y Check Valve

Product Description

The Milwaukee Valve 509Y-114 is a durable bronze swing Y check valve with female NPT threaded connections. It is suitable for general purpose applications involving media such as gas, oil, steam, and water. The design allows for both horizontal and vertical mounting installations. This valve complies with MSS SP-80 Type 3 standards but is not for potable water use.

• Connection Type: FNPT x FNPT
• Maximum Pressure: 200 psi (CWP), 125 psi (Steam)
• Valve Size: 1-1/4 inch

Product Highlights

The Milwaukee Valve 509Y-114 provides reliable operation for various fluid applications, ensuring safe fluid flow with ease of installation.

Product Information

Standard Information

• Item: Swing Y Check Valve
• Application - Valves: General Purpose

Technical Specifications

• Cracking Pressure: 0.5 psi
• Flow Design: Single
• Material: Bronze
• Max. Steam Pressure: 125 psi
• Max. Water Pressure: 200 psi
• Mounting Orientation: Horizontal, Vertical
• Body Material: Bronze
• Disc Material: Brass
