Product Description

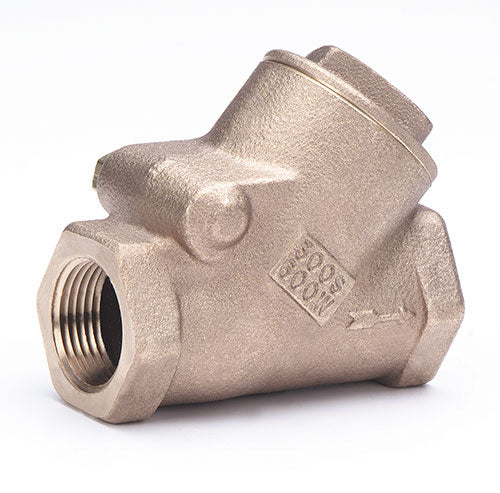

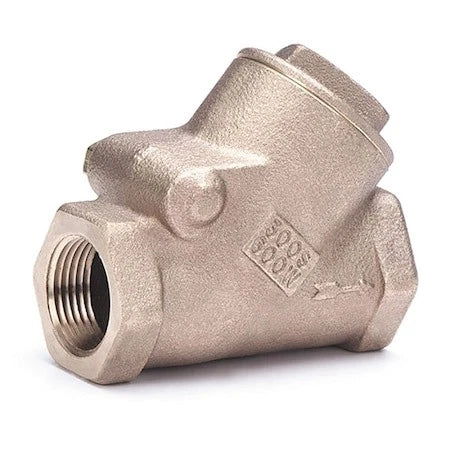

The Milwaukee 507-1 is a bronze swing check valve designed for controlling the flow of fluids in various plumbing systems. This valve features a one inch FNPT connection, making it compatible with standard threaded piping. It operates effectively within a temperature range of negative twenty to five hundred fifty degrees Fahrenheit. The Milwaukee 507-1 can withstand a maximum water pressure of six hundred psi at one hundred fifty degrees Fahrenheit, and a steam pressure of three hundred psi WSP. It conforms to MSS SP-80, Type 3 standards, ensuring high-quality performance.
- Constructed from durable bronze for diverse media compatibility.
- FNPT x FNPT connection type for secure fit.
- Flexible installation options for horizontal or vertical mounting.
Product Highlights
This valve uses a Y swing mechanism for efficient operation and features a cracking pressure between seven hundred fifty and one thousand psi with a flow rate of thirty-one gpm.
Product Information
Standard Information
-
Brand: Milwaukee Valve
-
Type: Check Valve
Technical Specifications
-
Valve Type: Check Valve
-
Material: Bronze
-
Pressure Rating: 300 SWP - 600 WOG
-
Connection: FNPT
-
Body Style: Horizontal Swing Y/Pattern
-
Seat Material: Bronze
-
Disc Material: Bronze Regrinding
-
Product Size: One inch
-
Cracking Pressure: 0.750 to 1.000 psi
-
Mounting Orientation: Horizontal, Vertical
-
Max Temp: 550 Degrees F
-
Min Temp: -20 Degrees F
-
Max Water Pressure: 600 psi @ 150 Degrees F
-
Max Steam Pressure: 300 psi WSP
-
Flow Rate: 31 gpm
-
Item Length: 3.900 inches
-
Item Width: 3.400 inches
-
Item Height: 2.000 inches
