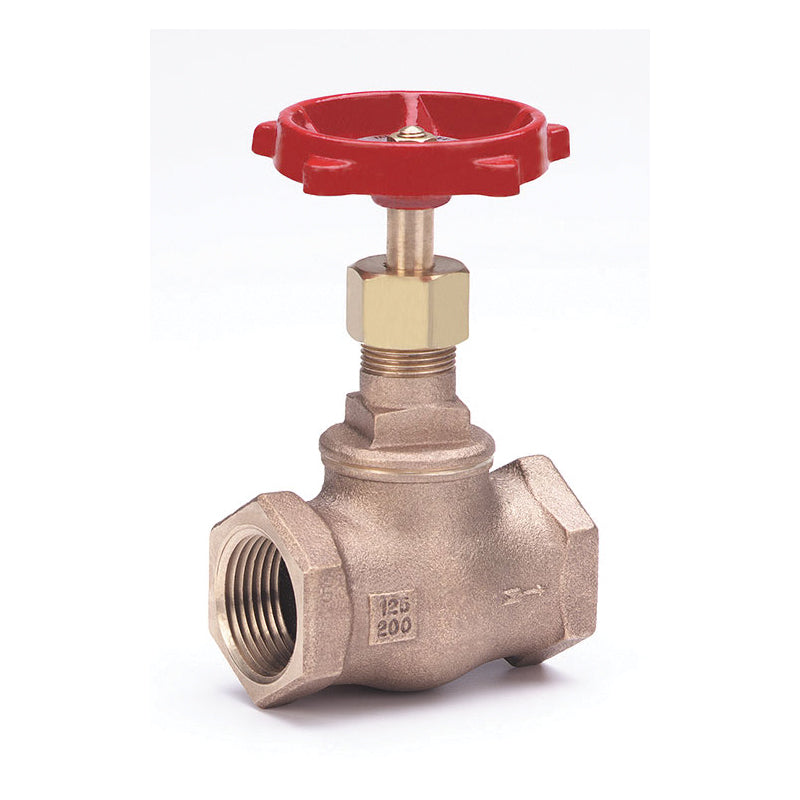

Milwaukee 502-34 Globe Valve 3/4 in FNPT

Product Description

The MILWAUKEE 502-34 globe valve features a 3/4 in FNPT connection and is designed for plumbing and heating applications. Constructed with a bronze body and bronze trim, this valve is suitable for up to 200 psi pressure and temperatures up to 406 deg F. It includes a handwheel actuator and graphite packing softgoods.

• 125 SWP to 200 WOG non-shock
• Bronze disc
• Threaded bonnet

Product Highlights

Globe valve with bronze body, handwheel actuator, and 3/4 in FNPT connection for plumbing and heating.

Product Information

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 502 - 34

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• Domestic/Import: Domestic
• End Style: FNPT
• Hand Wheel Diameter: 2-1/2 in
• Inlet to Outlet Length: 2.56 in
• Nominal Size: 3/4 in
• Pressure Class: 125 lb
• Pressure Rating: 200 psi
• Series: 502
• Softgoods Material: Graphite Packing
• Temperature Rating: 406 deg F
• Top to Inlet Center: 3.94 in
• Trim Material: Bronze
