Milwaukee 4916BKITS Cable Stripper Bushing Kit 1/0-750 Mcm

Product Description

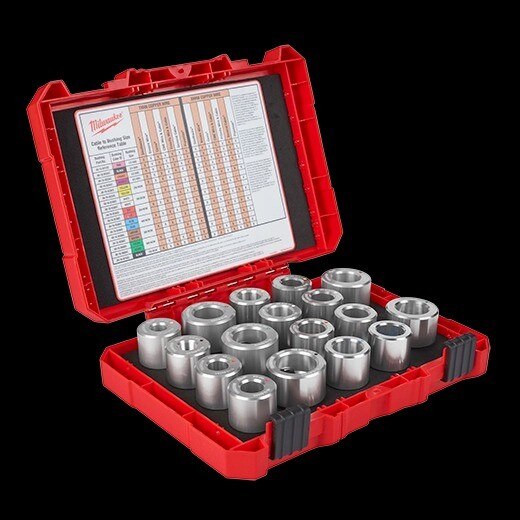

The MILWAUKEE 4916BKITS is a 17-piece cable stripper bushing kit designed for stripping copper THHN and XHHW conductors ranging from 1/0 AWG through 750 MCM. Each bushing is individually engineered to produce clean, consistent jacket removal at specific cable sizes without nicking the conductor. The kit uses a quick-change bushing system compatible with Milwaukee M18 and M12 cable strippers, allowing a single set of bushings to span both battery platforms. Licensed electricians and wire installation crews install this kit as a productivity and safety accessory in commercial, industrial, and residential wiring work.

This bushing kit applies wherever large-gauge copper THHN or XHHW cable is being stripped and terminated. Typical install scenarios include service entrance work, panel feeds, feeder runs, and large motor branch circuits where conductor sizes run into the hundreds of MCM range. The kit is sold as a single unit and is intended for field use alongside Milwaukee M12 and M18 cable strippers.

Key Features

• Covers 1/0 AWG through 750 MCM copper THHN and XHHW cable in 17 bushing sizes
• Quick-change bushing system works with both M12 and M18 Milwaukee cable strippers
• Industry-standard color coding on each bushing for fast size selection
• Wire size, material, and jacket type marked directly on each bushing
• Optimized bushing geometry prevents nicks on conductor strands
• Jacket ejection slot clears stripped material and reduces jamming

Compatibility

Bushings are compatible with Milwaukee M18 and M12 cable strippers. Designed for use with copper THHN and XHHW cable from 1/0 AWG through 750 MCM.

Installation Notes

Installation and use of this bushing kit should be performed by a licensed electrician following applicable NEC requirements for conductor preparation and termination. Power down and lock out the circuit before stripping any energized conductor. Select the correct bushing for the cable size being stripped and seat it fully before operating the cable stripper. Inspect the cutting blade periodically and replace it in the field when strip quality degrades.

Technical Specifications

• Cable Range: 1/0 AWG to 750 MCM
• Conductor Material: Copper
• Jacket Type: THHN / XHHW
• Number of Bushings: 17
• Weight: 3.4 pounds
• Length: 9.02 inches
• Width: 11.1 inches
• Height: 14.25 inches
• Sold As: Each

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 4916BKITS
