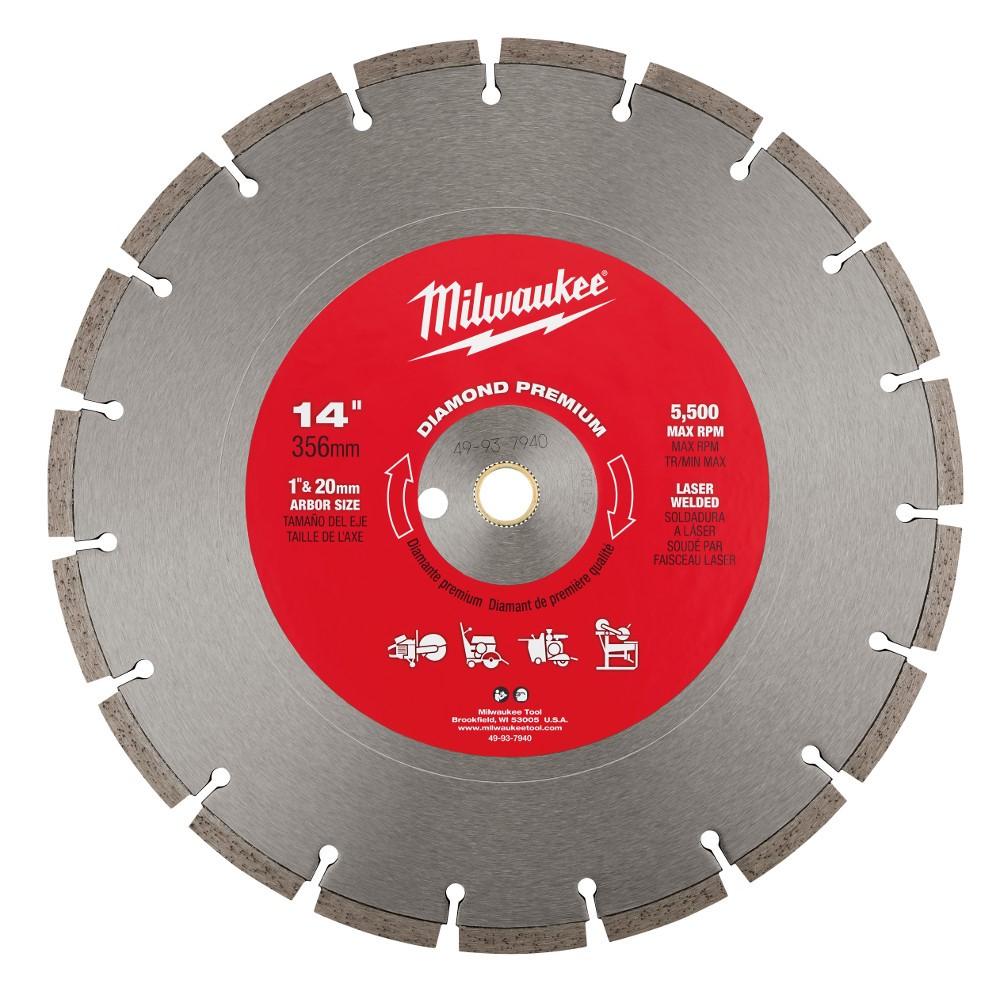

Milwaukee 49-93-7940 Diamond Circular Saw Blade 14 in

Product Description

The MILWAUKEE 49-93-7940 is a 14-inch premium segmented diamond circular saw blade built for demanding cutting applications in the trades. The segmented rim design promotes fast cutting and efficient debris clearing. At 4.58 pounds, this blade is sized for 14-inch cut-off saws and large angle grinders. It accepts a 1-inch or 20 mm arbor, making it compatible with a wide range of power tools. Both wet and dry cutting are supported, giving installers flexibility on job sites without dedicated water supply access. MILWAUKEE uses high-grade diamonds in the matrix to extend segment life across high-wear applications.

This blade is suited for masonry, concrete, asphalt, and pipe-cutting work encountered in plumbing, HVAC, electrical, and general construction trades. The 14-inch diameter makes it a go-to choice for cutting through thick slabs, pavement, cured concrete block, and ductile iron pipe. Wet cutting setups help control dust and extend blade life when cutting dense aggregate materials. Dry cutting is practical for field work where water is not available, provided adequate ventilation and dust controls are in place.

Key Features

• 14-inch diameter with segmented diamond rim for fast, aggressive cutting
• Compatible with 1-inch and 20 mm arbors
• Rated for both wet and dry cutting applications
• High-grade diamond matrix for extended segment life
• Suitable for concrete, asphalt, masonry, and ductile iron

Compatibility

Designed for use with 14-inch cut-off saws and large angle grinders accepting a 1-inch or 20 mm arbor. Suitable for wet or dry cutting of concrete, asphalt, masonry, and ductile iron pipe.

Installation Notes

Blade installation and replacement should be performed by a qualified tradesperson following the saw manufacturer's safety guidelines. Confirm the saw is powered down and unplugged before mounting or removing the blade. Verify arbor size compatibility and ensure the blade is rated at or above the RPM of the saw being used. Always wear appropriate PPE including eye protection, hearing protection, and a rated dust respirator when cutting concrete or asphalt.

Technical Specifications

• Blade Diameter: 14 inches
• Arbor Size: 1 inch / 20 mm
• Cutting Method: Wet or Dry
• Rim Type: Segmented Diamond
• Package Weight: 4.58 pounds
• Package Length: 15.2 inches
• Package Width: 16 inches
• Package Height: 0.35 inches
• Sold As: Each
• UPC: 0045242363490

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-93-7940
