Milwaukee 49-67-0110 Spacer Assembly Diamond Coring Rig

Product Description

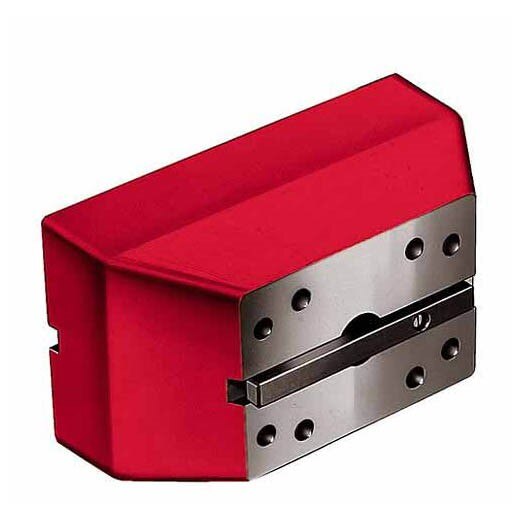

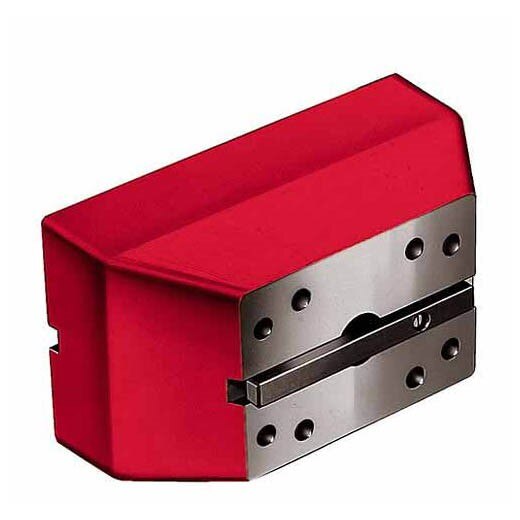

The MILWAUKEE 49-67-0110 is a spacer assembly designed to extend the bit capacity of compatible diamond coring rigs from 10 inches to 14 inches. The spacer mounts between the cradle and the diamond drill motor, creating the additional clearance needed to run larger core bits. This component is a direct mechanical accessory for wet or dry diamond coring setups used in concrete and masonry drilling applications. Installation is straightforward and requires no special tooling beyond standard wrenches. Drilling contractors and concrete cutting professionals will find this spacer essential when a job calls for larger-diameter core bits than the base rig configuration allows.

This spacer assembly is intended for use with diamond coring rig configurations where bit capacity must be increased beyond the standard 10-inch limit. It is compatible exclusively with Milwaukee diamond coring rig models 4125, 4130, and 4136. This makes it applicable to a range of commercial and residential concrete drilling tasks, including slab penetrations, core sampling, and utility pathway drilling. The part is sold individually and is a straightforward field upgrade for technicians already working with one of the three supported rig models.

Key Features

• Extends diamond coring rig bit capacity from 10 inches to 14 inches
• Mounts between the cradle and diamond drill motor for secure fitment
• Compatible with Milwaukee diamond coring rigs 4125, 4130, and 4136 only
• Sold as a single assembly unit

Compatibility

Designed for use exclusively with Milwaukee diamond coring rig models 4125, 4130, and 4136. Not compatible with other Milwaukee coring rig models or third-party coring systems.

Installation Notes

Installation should be performed by a qualified operator familiar with the Milwaukee coring rig system. Disconnect the rig from all power sources before disassembling the cradle-motor interface. Secure all fasteners fully before returning the rig to service. Refer to the rig manufacturer documentation for torque and assembly sequence guidance specific to models 4125, 4130, or 4136.

Technical Specifications

• Bit Capacity (Extended): 14 inches
• Bit Capacity (Base): 10 inches
• Length: 3.9 inches
• Width: 7.2 inches
• Height: 3.2 inches
• Weight: 2.68 pounds
• Unit of Measure: Each
• UPC: 0045242208906

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-67-0110
