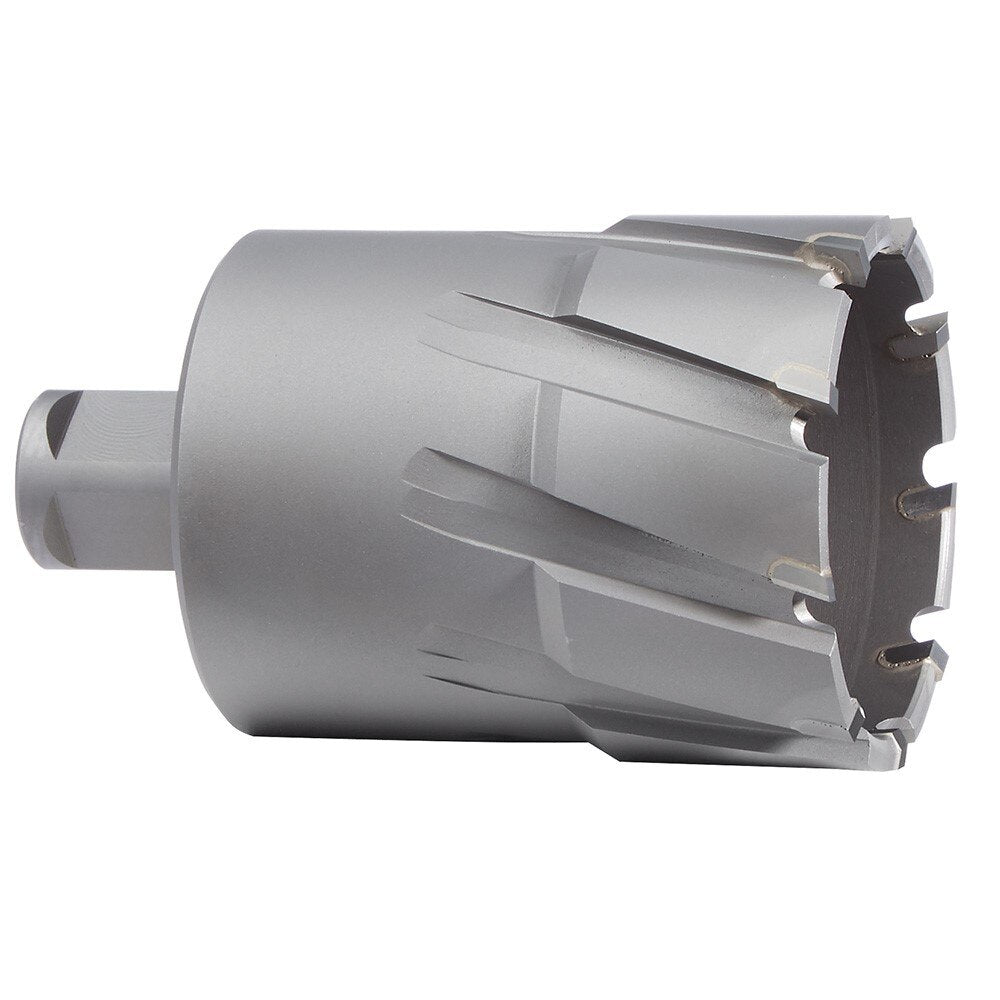

Milwaukee 49-59-4200 Tct Annular Cutter 2 in Hard Metal

Product Description

The MILWAUKEE 49-59-4200 is a tungsten carbide tipped (TCT) annular cutter designed for fast, clean hole cutting in hard metal materials. The cutter features an advanced tooth geometry that cuts, cleans, and clears chips simultaneously during the drilling pass, reducing heat buildup and improving hole quality. At 2 inches in diameter and 3.65 inches in length, it produces burr-free holes in demanding materials including stainless steel and cast iron. The 3/4 inch Weldon shank is compatible with most small and large magnetic drill presses. Licensed electricians, ironworkers, pipefitters, and millwrights are the primary installers of this tool.

This annular cutter is intended for hard metal fabrication and structural applications where a standard twist drill would be inefficient or impractical. The thin-wall design displaces less material than a comparable twist drill, resulting in faster cycle times and reduced motor load on the magnetic drill press. It is suited for field and shop use in steel fabrication, mechanical contracting, and industrial maintenance environments where accurate, repeatable hole sizing is required.

Key Features

• Advanced tooth geometry cuts, cleans, and clears material in a single pass for faster hole completion
• Thin-wall design removes less material than twist drills, increasing speed and reducing press load
• Tungsten carbide tipped construction extends service life in stainless steel and cast iron
• Produces burr-free holes, reducing or eliminating secondary deburring operations
• 3/4 inch Weldon shank fits most small magnetic drill presses and large presses with the correct arbor
• Compatible with pilot pin 49-59-0014

Compatibility

Fits most small magnetic drill presses directly via the 3/4 inch Weldon shank; fits large magnetic drill presses with the appropriate arbor. For use with pilot pin 49-59-0014.

Installation Notes

Installation is performed by qualified tradespeople operating magnetic drill presses. Secure the workpiece and verify the magnetic drill press is firmly seated and energized before beginning the cut. Use a cutting fluid appropriate for the base metal to extend cutter life and improve hole finish. Inspect the Weldon shank setscrew engagement before each use to confirm the cutter is properly locked in the arbor or chuck.

Technical Specifications

• Cutter Diameter: 2 inches
• Cutter Length: 3.65 inches
• Shank Type: 3/4 inch Weldon
• Tip Material: Tungsten Carbide (TCT)
• Application: Hard metal including stainless steel and cast iron
• Weight: 0.75 pounds
• UOM: Each

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-59-4200
