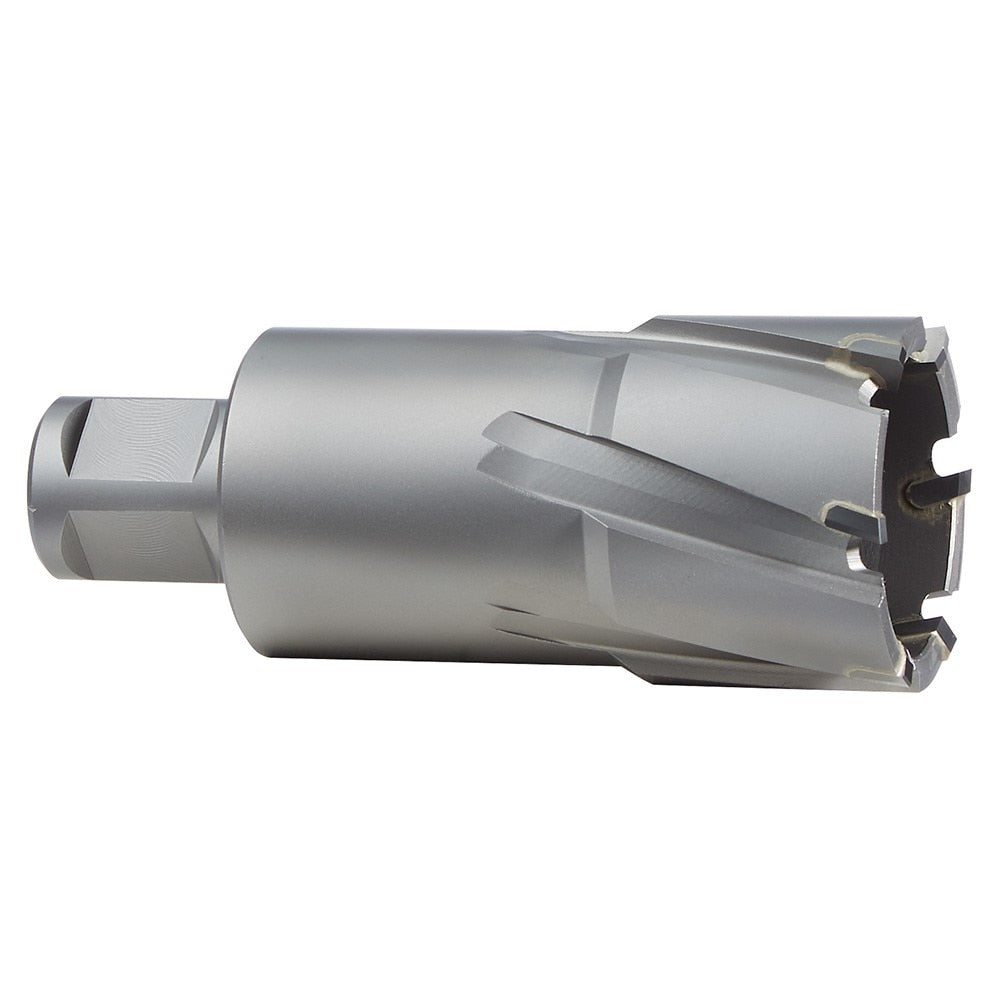

Milwaukee 49-59-4150 Tct Annular Cutter 1-1/2 in Hard Metal

Product Description

The MILWAUKEE 49-59-4150 is a tungsten carbide tipped (TCT) annular cutter designed for fast, clean hole-cutting in hard metal materials. Its advanced tooth geometry cuts, cleans, and clears chips simultaneously during drilling, reducing heat buildup and extending tool life. The thin-wall design displaces less material than standard hole cutters, producing the same size hole faster and with less effort. The cutter delivers burr-free results in demanding materials including stainless steel and cast iron. Weighing 0.52 pounds, it is built for repeated heavy use in magnetic drill press applications. Licensed tradespeople and fabricators working in structural steel, mechanical, and industrial environments rely on this cutter for consistent performance.

The 49-59-4150 is suited for residential, commercial, and industrial metal fabrication and installation work. It is designed for use with most small magnetic drill presses and, with the correct arbor, large magnetic drill presses as well. Typical applications include cutting holes in structural steel, plate steel, stainless steel, and cast iron where a clean, precise hole is required. The compatible pilot pin for this cutter is part number 49-59-0014.

Key Features

• Advanced tooth geometry cuts, cleans, and clears material simultaneously for faster hole completion
• Thin-wall design removes less material per hole for increased cutting speed and reduced motor load
• Produces burr-free holes in hard metals including stainless steel and cast iron
• Tungsten carbide tipped construction for extended cutter life in abrasive materials
• 3/4 inch Weldon shank compatible with most small and large magnetic drill presses
• Use with pilot pin 49-59-0014

Compatibility

Fits most small magnetic drill presses via the 3/4 inch Weldon shank; compatible with large magnetic drill presses when used with the correct arbor. Use with pilot pin 49-59-0014.

Installation Notes

Installation and operation should be performed by qualified tradespeople familiar with magnetic drill press equipment and metal cutting procedures. Secure the workpiece firmly and ensure the magnetic drill base is fully engaged and locked before beginning any cut. Inspect the cutter and shank for damage before each use, and apply cutting fluid when working in stainless steel or cast iron to manage heat and extend tool life. Always follow the drill press manufacturer speed recommendations for the cutter diameter in use.

Technical Specifications

• Cutting Diameter: 1-1/2 inches
• Cutting Length: 3.65 inches
• Shank Type: 3/4 inch Weldon
• Tip Material: Tungsten Carbide
• Weight: 0.52 pounds
• Compatible Pilot Pin: 49-59-0014
• UPC: 0045242513857

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-59-4150
