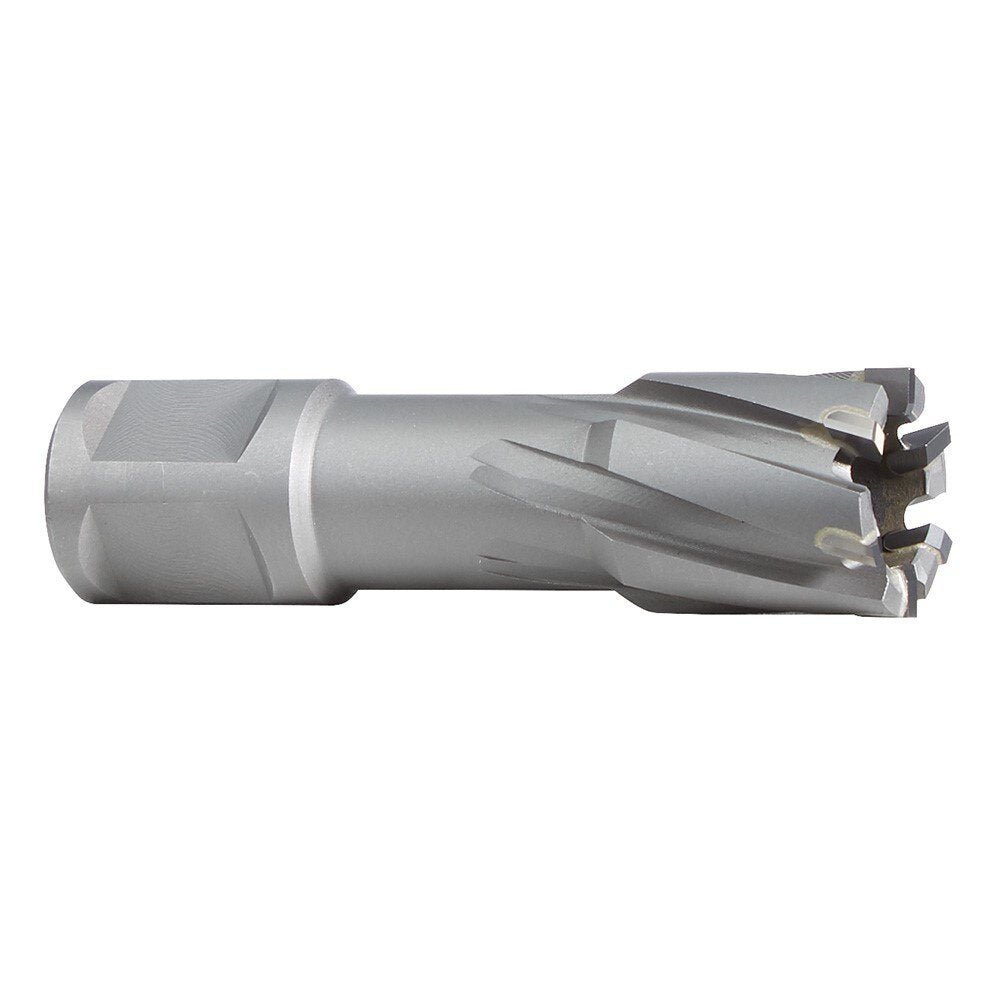

Milwaukee 49-59-3106 Tct Annular Cutter 1-1/16 in Hard Metal

Product Description

The MILWAUKEE 49-59-3106 is a tungsten carbide tipped (TCT) annular cutter designed for fast, clean hole cutting in hard metal materials. The advanced tooth geometry simultaneously cuts, cleans, and clears chips from the hole as drilling progresses, reducing heat buildup and improving throughput. At 1-1/16 inches in diameter and 2.92 inches in cutting depth, this cutter handles deep-penetration applications that standard twist drills cannot. The thin-wall design displaces less material than comparable cutters, producing burr-free holes without secondary deburring in most applications. Weighing 0.28 pounds, it is compatible with the 3/4 inch Weldon shank standard found on most small and large magnetic drill presses.

This annular cutter is intended for use in hard metal applications including stainless steel and cast iron. It is suited for structural steel fabrication, mechanical contracting, ironwork, and any trade application requiring precise, repeatable holes in dense ferrous and non-ferrous materials. Installation requires a magnetic drill press with a 3/4 inch Weldon shank arbor. The pilot pin 49-59-0016 is recommended for use with this cutter and should be sourced separately. Metalworkers, pipefitters, ironworkers, and mechanical contractors are the primary installers of this tool in professional settings.

Key Features

• Tungsten carbide tipped tooth geometry cuts, cleans, and clears material simultaneously during drilling
• Thin-wall design removes less material per hole, increasing cutting speed and reducing wear
• Produces burr-free holes in hard metal materials including stainless steel and cast iron
• 3/4 inch Weldon shank fits most small and large magnetic drill presses
• Recommended pilot pin: 49-59-0016 (sold separately)

Compatibility

Designed for use with magnetic drill presses equipped with a 3/4 inch Weldon shank or with larger magnetic drill presses using an appropriate adapter arbor. Use with pilot pin 49-59-0016.

Installation Notes

This cutter is installed and operated by metalworkers, pipefitters, ironworkers, and mechanical contractors using a compatible magnetic drill press. Ensure the drill press is fully de-energized and the magnet is disengaged before changing cutters. Secure the Weldon shank firmly in the arbor collet before operation and verify the pilot pin is seated correctly to prevent cutter walkoff on the work surface. Always follow applicable workplace safety standards and manufacturer operating procedures for magnetic drill press use.

Technical Specifications

• Cutter Diameter: 1-1/16 inches
• Cutting Depth: 2.92 inches
• Shank Type: 3/4 inch Weldon
• Tip Material: Tungsten Carbide
• Application: Hard metal including stainless steel and cast iron
• Weight: 0.28 pounds
• UPC: 0045242513697
• Sold As: Each

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-59-3106
