Milwaukee 49-59-2169 Hss Annular Cutter 1-11/16 in Sheet Metal

Product Description

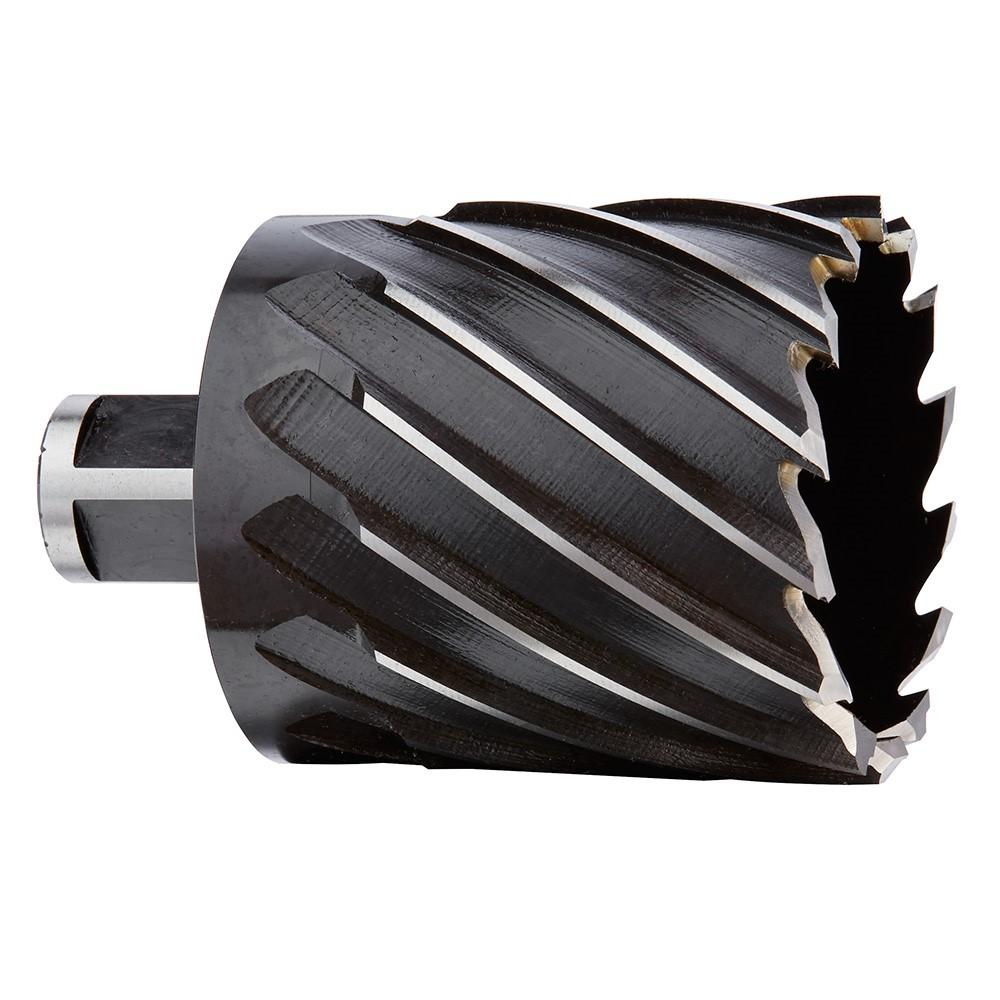

The MILWAUKEE 49-59-2169 is a high speed steel (HSS) annular cutter designed for fast, clean hole-cutting in sheet metal and mild steel plate. The cutter features an advanced tooth geometry that cuts and clears chips simultaneously, reducing heat buildup and extending tool life. Thin-wall construction displaces less material than conventional hole saws, producing burr-free holes in a single pass. The 3/4 inch Weldon shank is compatible with most small magnetic drill presses and larger magnetic drill presses when used with the appropriate arbor. Licensed tradespeople and metalworking contractors rely on this cutter for structural, fabrication, and maintenance work.

The 49-59-2169 is sized at 1-11/16 inch diameter and is intended for mild steel applications including sheet metal work and light-to-medium plate drilling. The Weldon shank design seats securely in magnetic drill press chucks, keeping the cutter stable under the side loads common in horizontal and overhead drilling positions. A pilot pin is required for use and is sold separately as Milwaukee part 49-59-0012.

Key Features

• Advanced tooth geometry cuts and clears material simultaneously for faster hole completion
• Thin-wall construction removes less material, improving hole speed and reducing wear
• Produces burr-free holes in sheet metal and mild steel without secondary finishing
• 3/4 inch Weldon shank fits most magnetic drill presses
• Compatible pilot pin: Milwaukee 49-59-0012 (sold separately)

Compatibility

Designed for use with magnetic drill presses accepting a 3/4 inch Weldon shank. Larger magnetic drill presses require the correct arbor adapter. For use in mild steel applications. Pilot pin 49-59-0012 required for operation.

Installation Notes

Installation and operation should be performed by qualified metalworkers or tradespeople familiar with magnetic drill press equipment. Before mounting or changing the cutter, disconnect power and allow any rotating components to come to a complete stop. Secure the Weldon shank fully in the chuck and verify the pilot pin is seated before beginning a cut. Always follow the drill press manufacturer speed and feed recommendations for HSS cutters in the material thickness being drilled.

Technical Specifications

• Cutter Diameter: 1-11/16 inches
• Overall Length: 3.386 inches
• Shank Size: 3/4 inch Weldon
• Material: High Speed Steel (HSS)
• Application: Sheet metal, mild steel
• Package Weight: 0.6 pounds
• Package Width: 3.55 inches
• Package Height: 2 inches
• UOM: Each
• UPC: 0045242208050

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-59-2169
