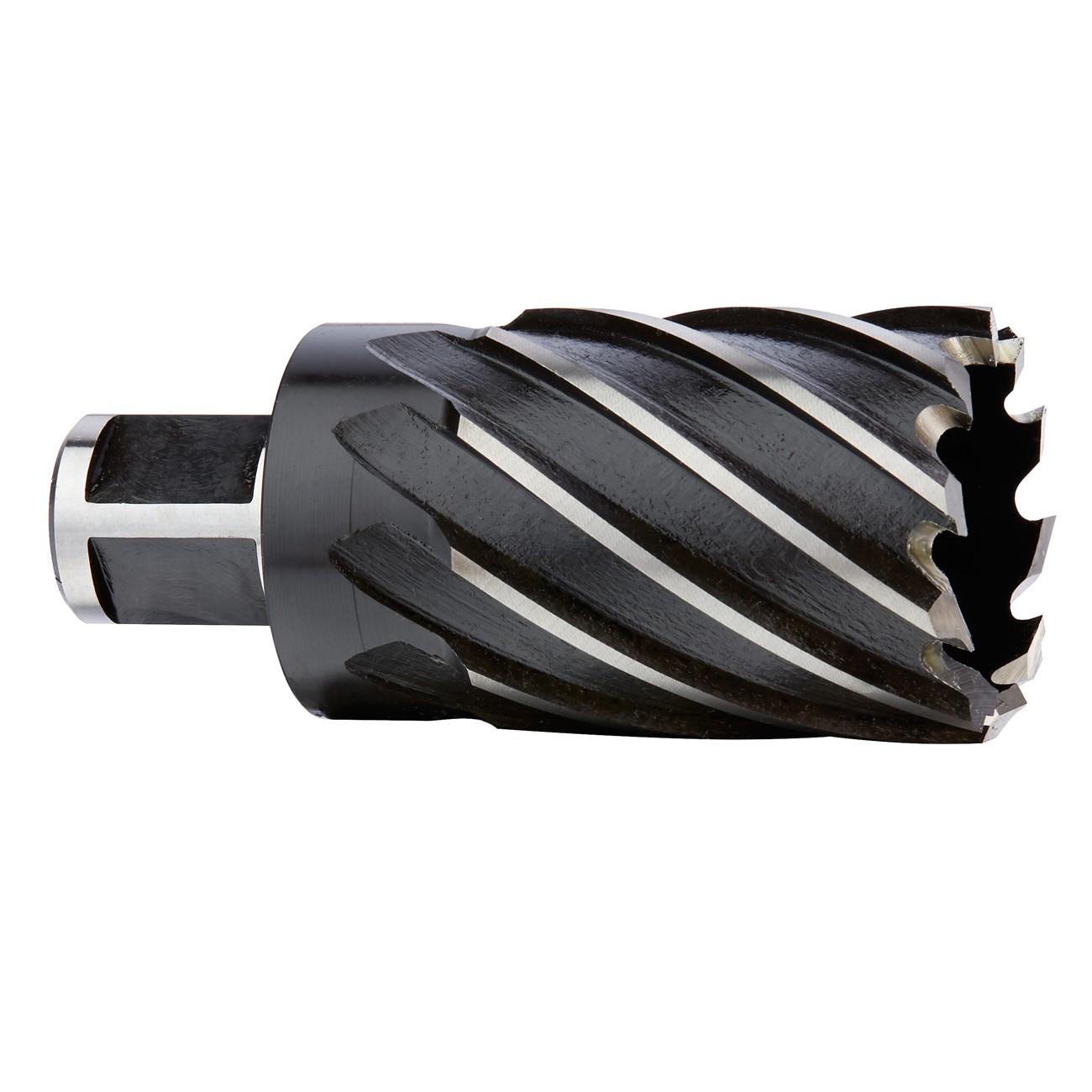

Milwaukee 49-59-2150 Hss Annular Cutter 1-1/2 in Sheet Metal

Product Description

The MILWAUKEE 49-59-2150 is a high speed steel (HSS) annular cutter engineered for fast, clean hole cutting in sheet metal and mild steel plate. Its thin-wall construction displaces less material than standard twist drills, reducing cutting force and heat buildup. An advanced tooth geometry cuts, cleans, and clears chips simultaneously, producing burr-free holes without secondary deburring. The 3/4 inch Weldon shank provides a secure, positive drive connection compatible with most small and large magnetic drill presses. Licensed tradespeople and fabricators working in structural, mechanical, and sheet metal applications will find this cutter a direct fit for production or field drilling work.

This cutter is sized at 1-1/2 inch diameter and is intended for use in mild steel applications ranging from light-gauge sheet metal to thick plate. It is suited for magnetic drill press use in industrial, commercial, and field environments where round, clean-edged holes are required. The thin-wall annular cutting action means only a narrow ring of material is removed, which extends cutter life compared to solid-style hole cutters and reduces the load on the drill press. This part is sold individually and is designed for repeated use across multiple job cycles.

Key Features

• Advanced tooth geometry cuts, cleans, and clears material in a single pass
• Thin-wall design reduces material displacement for faster hole speeds and longer cutter life
• Produces burr-free holes, eliminating the need for secondary deburring
• 3/4 inch Weldon shank fits most small and large magnetic drill presses
• Rated for mild steel applications including sheet metal and thick plate
• Use with pilot pin 49-59-0012 for accurate hole positioning

Compatibility

Fits magnetic drill presses equipped with a 3/4 inch Weldon shank arbor. For use with pilot pin 49-59-0012. Designed for mild steel cutting applications.

Installation Notes

Installation and use should be performed by qualified tradespeople familiar with magnetic drill press operation and metal cutting procedures. Secure the workpiece and verify the magnetic drill press base is firmly engaged before beginning a cut. Power down and de-energize the drill press before changing cutters or installing the pilot pin. Always use appropriate cutting fluid for mild steel to maintain cutter life and control heat.

Technical Specifications

• Cutting Diameter: 1-1/2 inches
• Shank Type: 3/4 inch Weldon
• Material: High Speed Steel (HSS)
• Length: 4.5 inches
• Weight: 0.55 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 1
• UPC: 0045242208012

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-59-2150
