Milwaukee 49-59-2100 Hss Annular Cutter 1 in Sheet Metal

Product Description

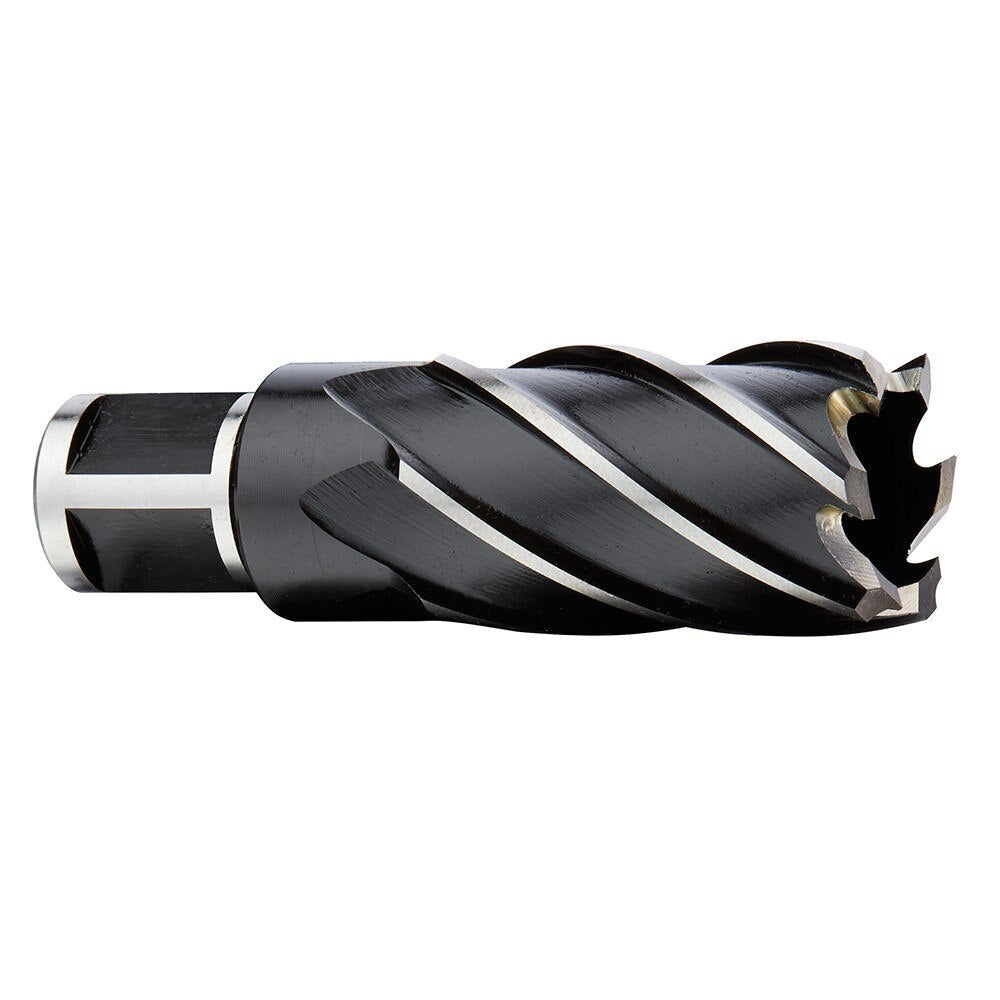

The MILWAUKEE 49-59-2100 is a high speed steel (HSS) annular cutter designed for fast, clean hole-cutting in mild steel and sheet metal applications. Built with a thin-wall construction and advanced tooth geometry, this cutter cuts and clears material simultaneously during the drilling stroke. The result is burr-free holes with less material displacement compared to standard twist drill bits. The 3/4 inch Weldon shank is compatible with most small magnetic drill presses and with larger magnetic drill presses when paired with the appropriate arbor. It is sized at 1 inch diameter and is sold individually.

This annular cutter is intended for use by metal fabricators, ironworkers, pipefitters, and maintenance mechanics working in light to heavy industrial environments. It is suited for applications ranging from structural steel fabrication to sheet metal work. The thin-wall design reduces the amount of material removed per hole, which lowers heat buildup and extends cutter life in repetitive drilling operations. When a pilot pin is required, use pin 49-59-0012, sold separately.

Key Features

• Advanced tooth geometry cuts and cleans material simultaneously during the drilling stroke for faster hole completion
• Thin-wall construction displaces less material, reducing heat and extending cutter life
• Burr-free holes produced in mild steel and sheet metal applications
• 3/4 inch Weldon shank fits most small magnetic drill presses and large magnetic drill presses with the correct arbor
• Compatible pilot pin: 49-59-0012 (sold separately)

Compatibility

Designed for use with magnetic drill presses equipped with a 3/4 inch Weldon shank arbor. Use with pilot pin 49-59-0012 when required.

Installation Notes

Installation and operation should be performed by qualified tradespeople familiar with magnetic drill press safety procedures. Secure the magnetic drill press firmly to the workpiece before beginning the cut and verify the base magnet is fully energized. Power down and de-energize the drill press before changing or inspecting the cutter. Always wear appropriate eye and hand protection when operating annular cutters on metallic materials.

Technical Specifications

• Cutting Diameter: 1 inch
• Cutter Length: 3.386 inches
• Shank Size: 3/4 inch Weldon
• Material: High Speed Steel (HSS)
• Application: Mild steel, sheet metal
• Weight: 0.34 pounds
• Package Dimensions: 3.5 x 1.5 x 1.45 inches
• Sold As: Each
• UPC: 0045242207886

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-59-2100
