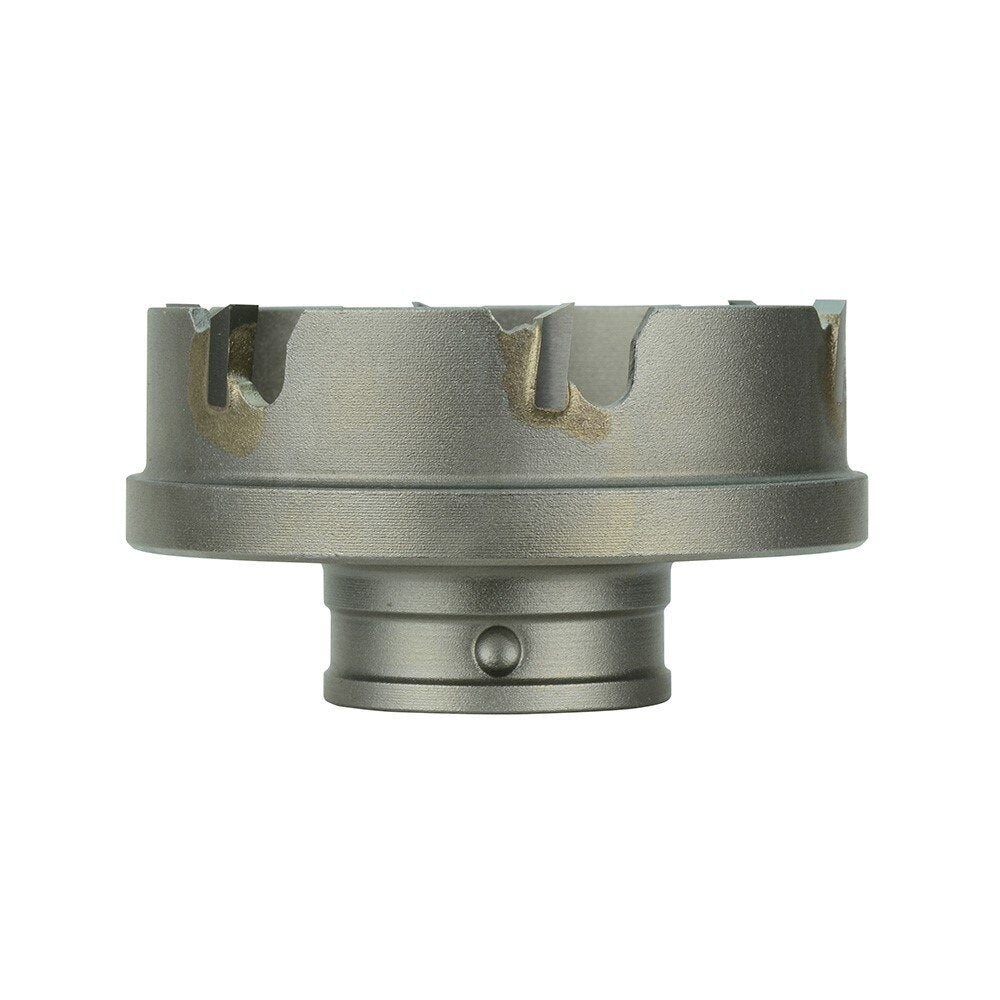

Milwaukee 49-57-8327 Carbide Annular Cutter 1-1/2 Inch

Product Description

The MILWAUKEE 49-57-8327 is a carbide-tipped annular cutter designed for cutting clean, accurate holes in sheet metal and structural materials up to 3/16 inches thick. It is built for use with Milwaukee quick-change arbor 49-57-0035, allowing fast bit swaps without a chuck key. The 1-1/2 inch cutting diameter produces fine holes in stainless steel, structural steel studs, brass, aluminum, and other thin-gauge sheet materials. Applying cutting fluid during drilling extends carbide tip life; Milwaukee recommends Hawg Wash cutting fluid (49-32-0081) for best results. Electricians, HVAC installers, and sheet metal workers are the primary users of this cutter.

This cutter is suited for residential and commercial trade applications where precise, burr-minimized holes are required in metal framing, electrical enclosures, ductwork, and structural steel studs. Its quick-change design makes it practical for hand-held drill use, delivering drill-press-quality holes in the field. It is sold individually and compatible with standard quick-change arbor setups used on portable drills and drill presses.

Key Features

• Carbide-tipped cutting edges handle stainless steel, structural steel, brass, and aluminum
• 1-1/2 inch cutting diameter for consistent, repeatable hole sizing
• 3/16 inch maximum cutting depth for sheet metal applications
• Quick-change design compatible with arbor 49-57-0035 for tool-free bit changes
• Usable in hand-held drills for field work without sacrificing hole quality
• Cutting fluid use extends carbide tip life; Hawg Wash fluid (49-32-0081) recommended

Compatibility

Designed for use with Milwaukee quick-change arbor 49-57-0035. Intended for sheet metal and structural materials up to 3/16 inches thick, including stainless steel, structural steel studs, brass, and aluminum.

Installation Notes

Installation is performed by electricians, HVAC technicians, and sheet metal workers using portable drills or drill presses. Secure the workpiece firmly before cutting and apply cutting fluid throughout the drilling operation to protect carbide tips and extend tool life. Disconnect or de-energize any equipment before cutting into panels or enclosures. Follow applicable NEC or local code requirements when cutting holes in electrical or mechanical systems.

Technical Specifications

• Cutting Diameter: 1-1/2 inches
• Maximum Cutting Depth: 3/16 inches
• Compatible Arbor: 49-57-0035 (Quick Change)
• Material Compatibility: Stainless steel, structural steel, brass, aluminum, thin sheet metal
• Length: 2.5 inches
• Width: 2.55 inches
• Height: 2.15 inches
• Weight: 0.2 pounds
• Sold As: Each
• UPC: 0045242205721

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-57-8327
