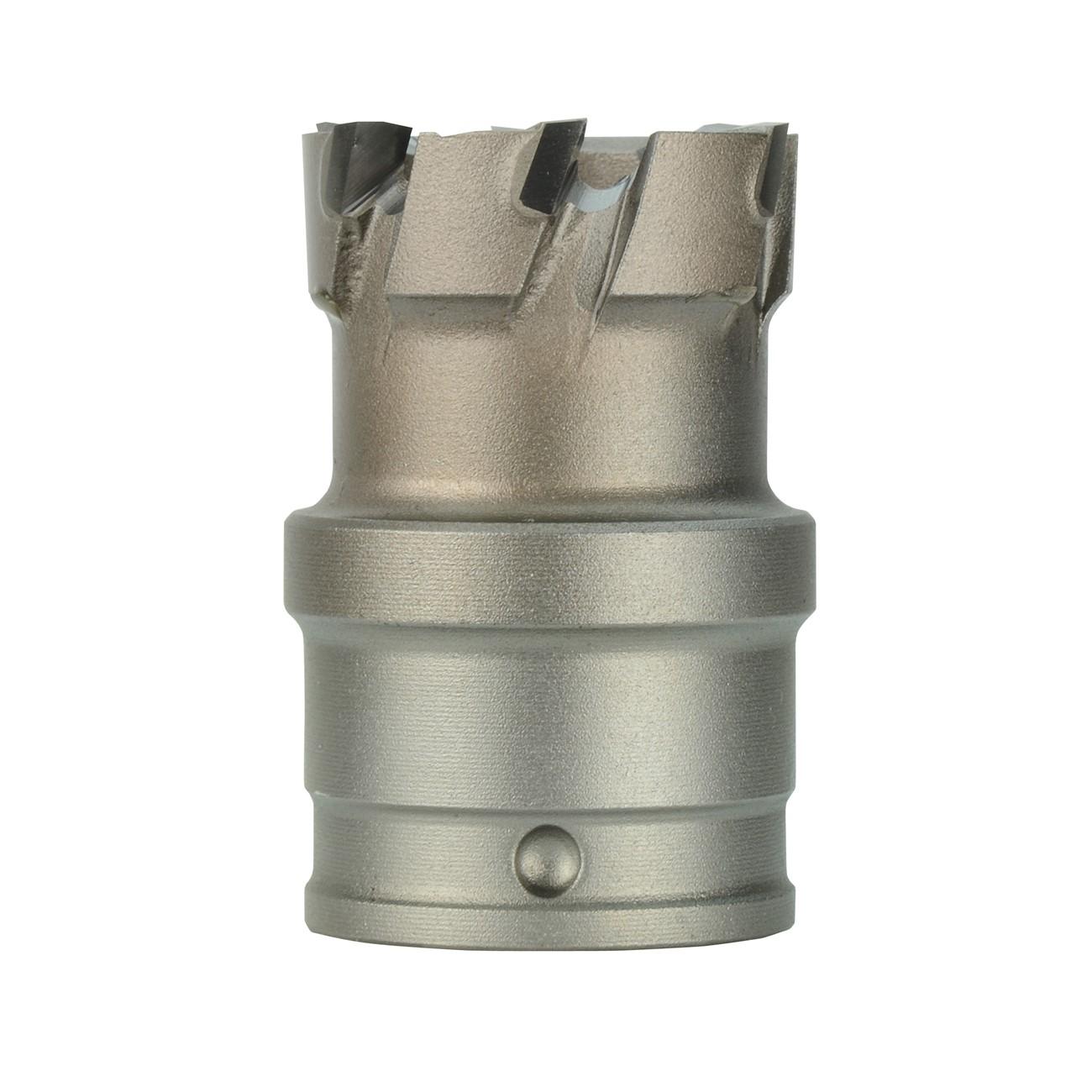

Milwaukee 49-57-8213 Carbide Annular Cutter 1-1/16 in

Product Description

The MILWAUKEE 49-57-8213 is a carbide-tipped annular cutter designed for quick-change arbor systems used in sheet plate applications. The cutter features a 1-1/16 inch diameter and a 1/2 inch cutting depth, delivering drill press quality holes even in handheld operations. Carbide tipping keeps the cutting edge sharper longer than high speed steel or bi-metal hole saws, reducing downtime between jobs. The stainless steel quick-change shank allows fast bit swaps without additional tooling. This cutter is suited for licensed tradespeople and skilled professionals working with steel plate in fabrication, structural, or mechanical applications.

This annular cutter is specifically designed for handheld use in materials up to 3/8 inch thick. For materials exceeding 3/8 inch in thickness, up to the maximum 1/2 inch cutting depth, use on a drill press is recommended to maintain hole quality and operator safety. When cutting depth exceeds 1/4 inch, Hawg Wash cutting fluid (available separately as Milwaukee 49-32-0081, 16 oz. bottle yielding one gallon of lubricating solution) should be applied to keep the cutting surface cool and properly lubricated.

Key Features

• 1-1/16 inch bit diameter for precise hole cutting in steel plate
• 1/2 inch maximum cutting depth
• Carbide-tipped construction stays sharper longer than high speed steel or bi-metal hole saws
• Stainless steel quick-change shank for fast, tool-free bit changes
• Compatible with quick-change arbor 49-57-0035
• Designed for handheld operations in materials up to 3/8 inch thick

Compatibility

Designed for use with the Milwaukee quick-change arbor 49-57-0035. Intended for handheld drilling operations in steel plate materials up to 3/8 inch thick, with drill press use recommended for material thickness between 3/8 inch and 1/2 inch.

Installation Notes

Installation and use should be performed by qualified tradespeople familiar with metal cutting operations and applicable safety standards. Ensure the tool and workpiece are secured before beginning any cutting operation, and disconnect power before changing cutters. When cutting depth exceeds 1/4 inch, apply an appropriate cutting fluid such as Hawg Wash to prevent heat buildup and extend cutter life. Always follow the tool manufacturer guidelines and applicable OSHA safety requirements for metalworking operations.

Technical Specifications

• Bit Diameter: 1-1/16 inches
• Cutting Depth: 1/2 inch
• Shank Material: Stainless Steel
• Shank Type: Quick-Change
• Package Length: 4.2 inches
• Package Width: 1.75 inches
• Package Height: 1.6 inches
• Weight: 0.15 pounds
• Sold As: Each
• UPC: 0045242205295

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-57-8213
