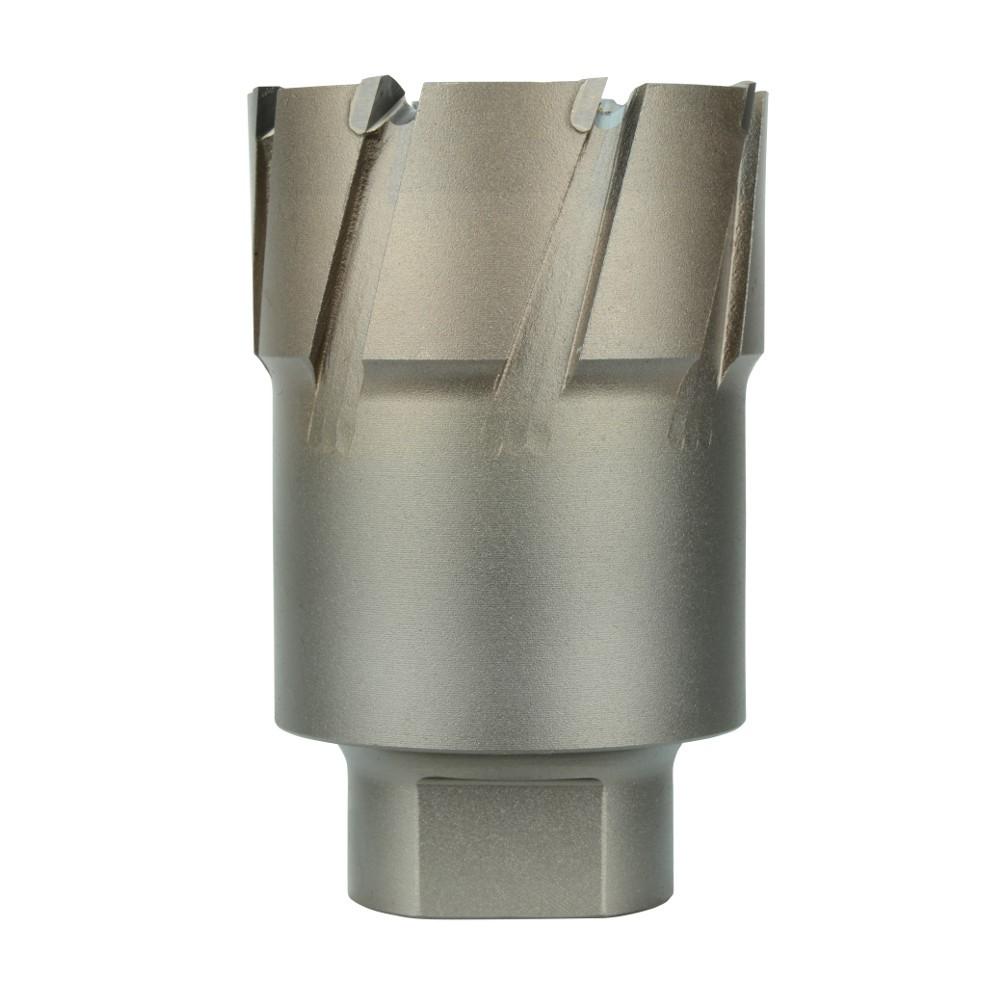

Milwaukee 49-57-3500 Annular Cutter 3.5 in Steel

Product Description

The MILWAUKEE 49-57-3500 is a threaded steel annular cutter designed for use in electromagnetic and magnetic drill presses. The cutter features carbide teeth arranged in an alternating cutting pattern that reduces cutting time compared to standard twist drill bits. It produces holes up to 2 inches deep in steel, stainless steel, cast iron, and aluminum. A spring-loaded, self-ejecting center pin doubles as a centering pin for accurate hole placement and ejects the plug quickly after each cut. The M18 x 1.5 shank provides a secure threaded connection to compatible arbors.

This cutter is suited for fabrication shops, ironworkers, pipefitters, electricians, and mechanical contractors who regularly drill large-diameter holes through structural steel, plate, pipe, and other ferrous and non-ferrous metals. The 3.5-inch diameter makes it appropriate for heavy structural work and conduit or pipe penetrations where precise, clean holes are required. It is sold as a single unit and is intended for professional trade use with electromagnetic drill press systems.

Key Features

• Carbide teeth resist abrasion and extend cutter service life
• Alternating tooth geometry accelerates material removal in steel and cast iron
• Spring-loaded self-ejecting pin centers the cut and removes the plug without extra tooling
• Threaded M18 x 1.5 shank compatible with standard annular cutter arbors
• Cuts up to 2 inches deep in steel, stainless steel, cast iron, and aluminum

Compatibility

Compatible with electromagnetic drill presses using threaded arbor connections. For use with arbor 49-57-0030 on Milwaukee 4262-1 magnetic drill press or arbor 49-57-0010 on Milwaukee 4292-1 magnetic drill press. Also compatible with a No. 3 Morse taper arbor assembly 49-57-0010. Fits most electromagnetic drill presses that accept threaded annular cutter shanks.

Installation Notes

Installation and use of annular cutters should be performed by qualified trades personnel familiar with magnetic drill press operation. Ensure the drill press is powered down and the magnetic base is disengaged before changing or seating the cutter. Verify the arbor thread engagement is fully secured before operation. Follow applicable OSHA and site safety requirements when drilling overhead or in confined structural spaces.

Technical Specifications

• Cutter Diameter: 3.5 inches
• Maximum Cut Depth: 2 inches
• Tooth Form: Alternating carbide
• Shank Thread Size: M18 x 1.5
• Compatible Materials: Steel, stainless steel, cast iron, aluminum
• Package Weight: 1.8 pounds
• Package Length: 4.3 inches
• Package Width: 4.55 inches
• Package Height: 3.8 inches
• Unit of Measure: Each
• UPC: 0045242203307

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-57-3500
