Milwaukee 49-57-2000 Annular Cutter 2 in Steel Hawg

Product Description

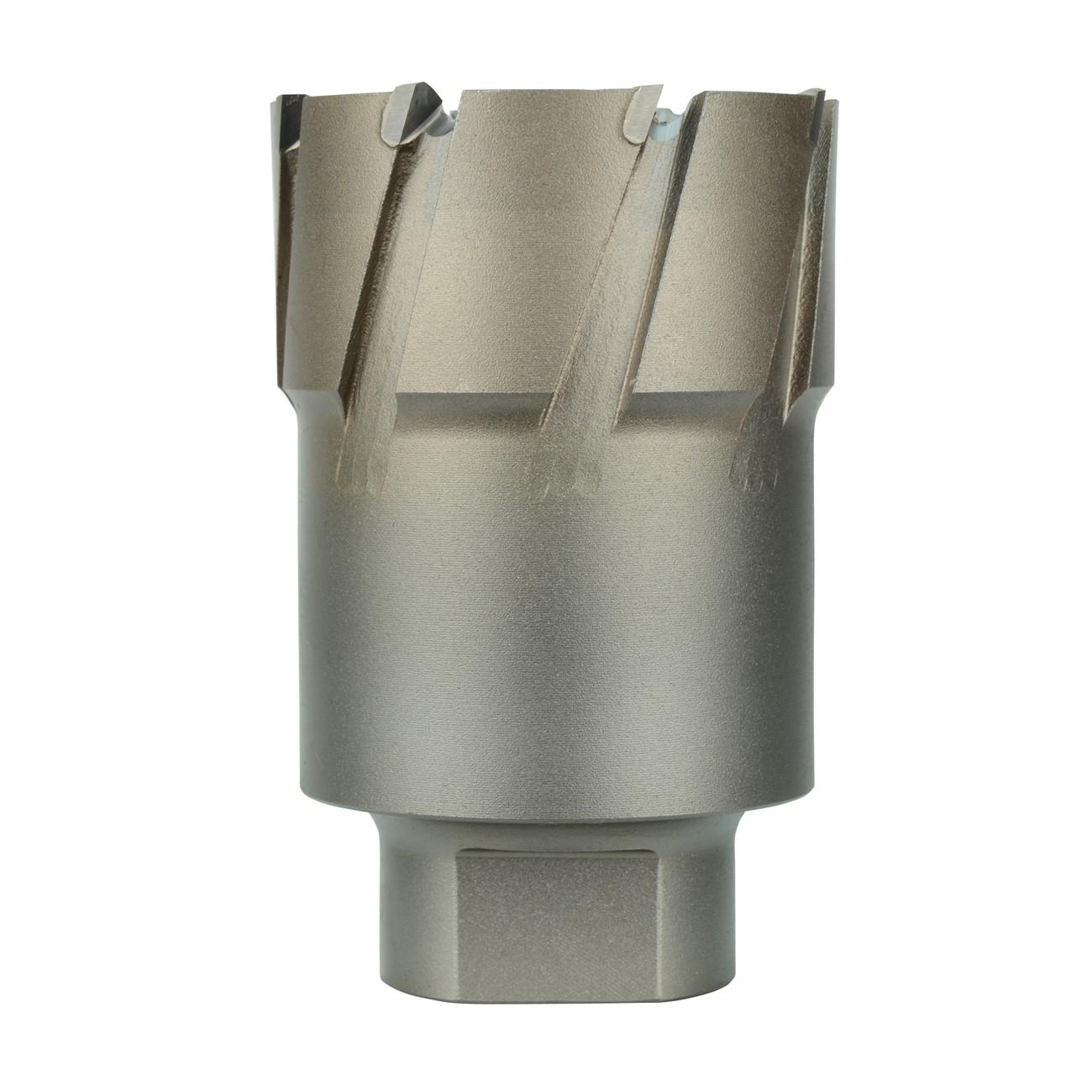

The MILWAUKEE 49-57-2000 is a threaded Steel Hawg annular cutter designed for cutting clean, accurate holes in ferrous and non-ferrous metals. Built with abrasion-resistant carbide teeth and an alternating tooth form geometry, it cuts up to 3 times faster than standard twist drill bits. The cutter handles a 2-inch hole depth in steel, stainless steel, cast iron, and aluminum. A spring-loaded, self-ejecting pilot pin serves as both a centering pin and a plug ejector, reducing cycle time and improving cut accuracy. This cutter is sized for use with magnetic drill presses and compatible arbors. It is typically installed by ironworkers, pipefitters, electricians, and structural steel fabricators.

The 49-57-2000 is suited for on-site and shop applications where precise, burr-minimal holes are required in steel plate, structural members, or pipe. It is compatible with most electromagnetic drill presses that accept a threaded shank connection. For use with Milwaukee magnetic drill press model 4262-1, pair it with arbor 49-57-0030. For use with Milwaukee model 4292-1, use arbor 49-57-0010. The cutter also works with a No. 3 Morse taper arbor assembly 49-57-0010. The shank thread size is M18 x 1.5.

Key Features

• Alternating tooth form geometry cuts up to 3 times faster than twist drill bits
• Carbide teeth resist abrasion and extend cutter life while producing a cleaner hole
• Spring-loaded, self-ejecting pin doubles as centering pin and accelerates plug removal
• 2-inch cutting diameter with M18 x 1.5 threaded shank
• Compatible with most electromagnetic drill presses
• Quick-change tang drive for efficient cutter swaps

Compatibility

Compatible with Milwaukee magnetic drill press models 4262-1 using arbor 49-57-0030 and model 4292-1 using arbor 49-57-0010. Also compatible with No. 3 Morse taper arbor assembly 49-57-0010. Fits most electromagnetic drill presses that accept a threaded annular cutter shank.

Installation Notes

Installation and use should be performed by qualified tradespeople familiar with magnetic drill press operation and metal cutting safety practices. Secure the magnetic drill press fully to the workpiece before beginning a cut, and verify the pilot pin is centered before applying feed pressure. Wear appropriate PPE including eye protection and gloves when operating the cutter. Inspect the carbide teeth for wear or chipping before each use and replace the cutter if damage is observed.

Technical Specifications

• Cutting Diameter: 2 inches
• Cutting Depth: 2 inches
• Shank Thread Size: M18 x 1.5
• Compatible Materials: Steel, stainless steel, cast iron, aluminum
• Length: 2.55 inches
• Width: 3.65 inches
• Height: 2.3 inches
• Weight: 0.61 pounds
• UOM: Each
• UPC: 0045242202553

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-57-2000
