Milwaukee 49-57-1564 Annular Cutter 1-9/16 in Quick Change

Product Description

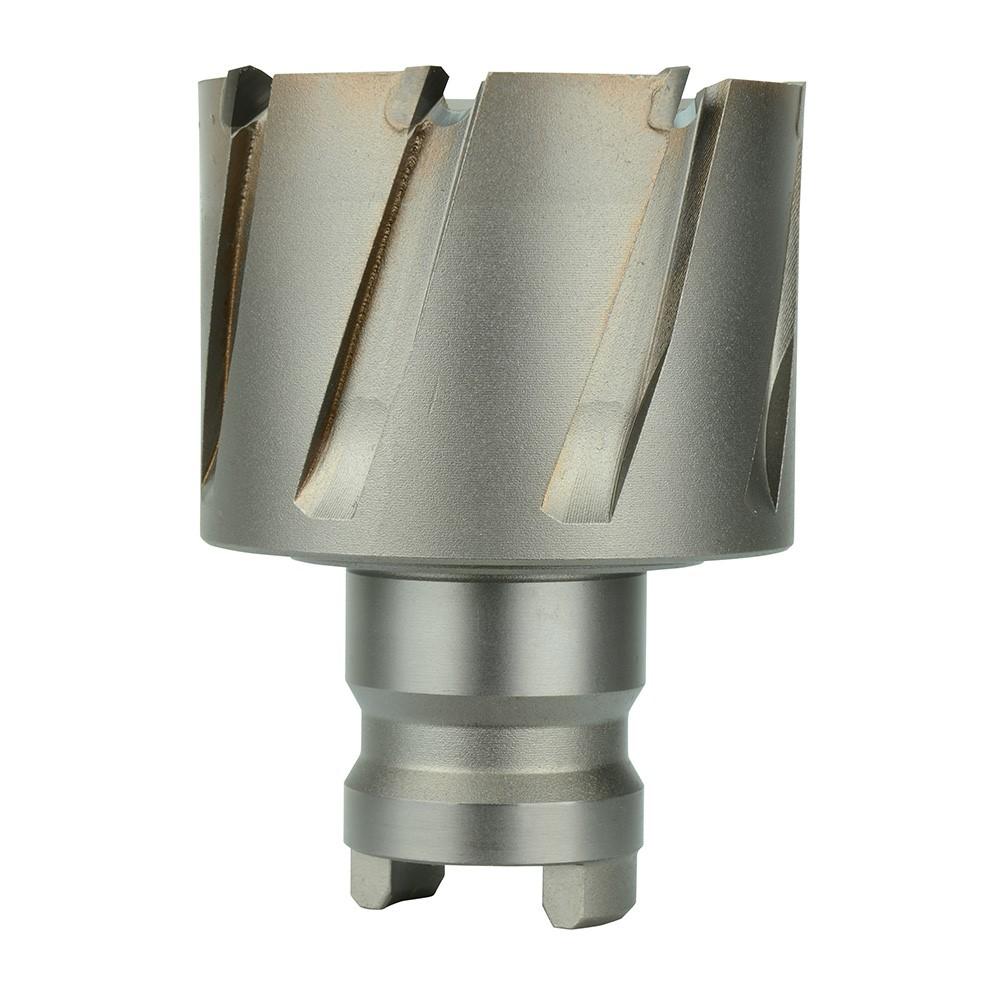

The MILWAUKEE 49-57-1564 is a quick change tang drive annular cutter designed for cutting clean, accurate holes in steel, stainless steel, cast iron, and aluminum. Known as the Steel Hawg, this cutter features carbide teeth arranged in an alternating tooth form geometry that accelerates material removal and produces a ream-like finish. It cuts holes up to 1 inch deep without requiring pre-punching or pilot holes. Licensed HVAC, electrical, and mechanical tradespeople who rely on magnetic drill presses will find this cutter a dependable production tool. Weighing 0.42 pounds, it is compact and easy to handle on the job.

The 49-57-1564 is suited for metal fabrication, structural steel work, and trade rough-in applications where clean, burr-free holes are required in ferrous and non-ferrous metals. It is compatible with most electromagnetic drill presses via its quick change tang drive interface. For Milwaukee magnetic drill presses specifically, use it with arbor 49-57-0012 or 49-57-0013 on the 4292-1 or 4297-1 models, or with arbor 49-57-0032 on the 4262-1 model.

Key Features

• Alternating tooth form geometry cuts steel up to 3 times faster than standard twist drills
• Abrasion-resistant carbide teeth extend cutter life and produce a cleaner, ream-like hole finish
• Quick change tang drive allows fast cutter swaps without additional tooling
• Spring-loaded, self-ejecting centering pin doubles as a plug ejector for faster operation
• No pre-punching or pilot holes required — cuts directly into material
• Compatible with most electromagnetic drill presses

Compatibility

Compatible with most electromagnetic drill presses using a tang drive arbor interface. For Milwaukee magnetic drill presses, use with arbor 49-57-0012 or 49-57-0013 on the 4292-1 or 4297-1, or arbor 49-57-0032 on the 4262-1.

Installation Notes

Installation and use should be performed by qualified tradespeople familiar with magnetic drill press operation. Before mounting or removing the cutter, ensure the drill press is fully powered down and the magnetic base is disengaged. Secure the workpiece firmly before drilling and verify arbor compatibility before use. Follow all applicable OSHA and manufacturer safety guidelines for rotary cutting tools and magnetic drill press operation.

Technical Specifications

• Cutting Diameter: 1-9/16 inches
• Maximum Hole Depth: 1 inch
• Drive Type: Quick Change Tang Drive
• Tooth Material: Carbide
• Compatible Materials: Steel, Stainless Steel, Cast Iron, Aluminum
• Length: 1.95 inches
• Width: 3.25 inches
• Height: 1.85 inches
• Weight: 0.42 pounds
• UPC: 0045242202171

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-57-1564
