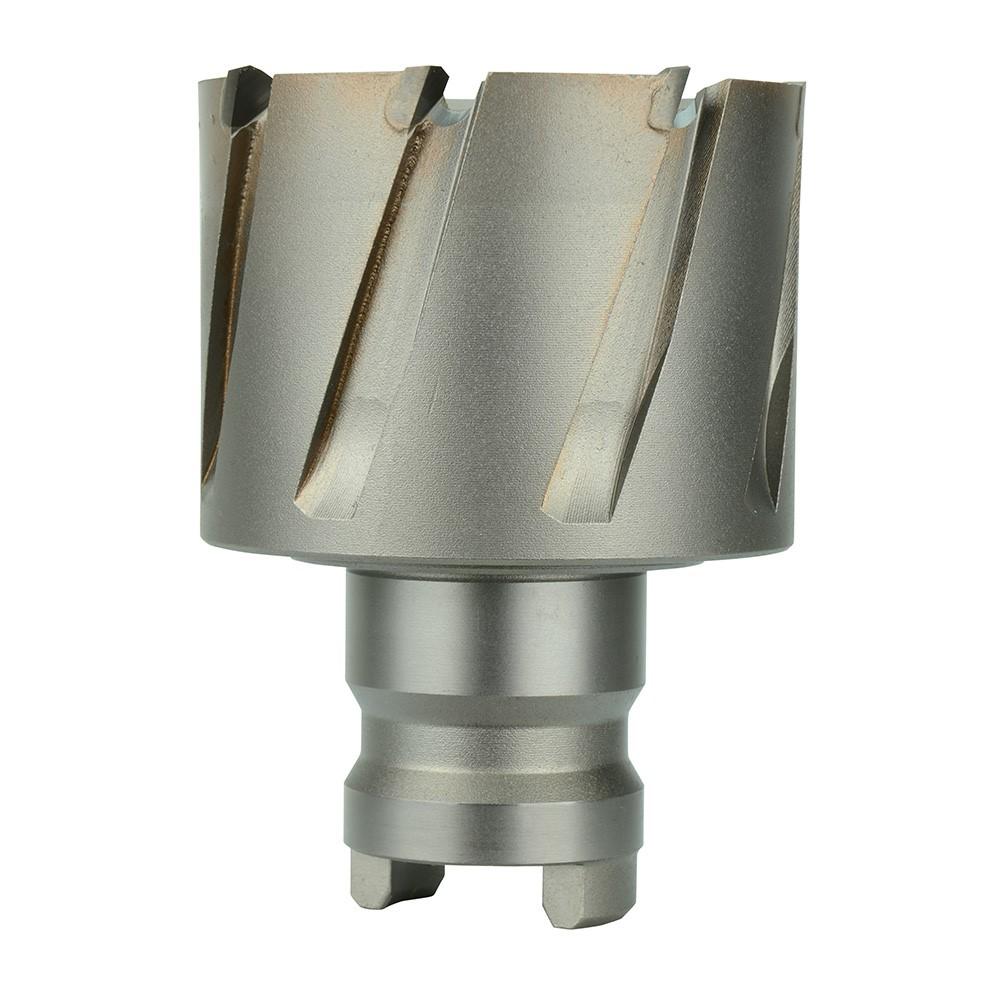

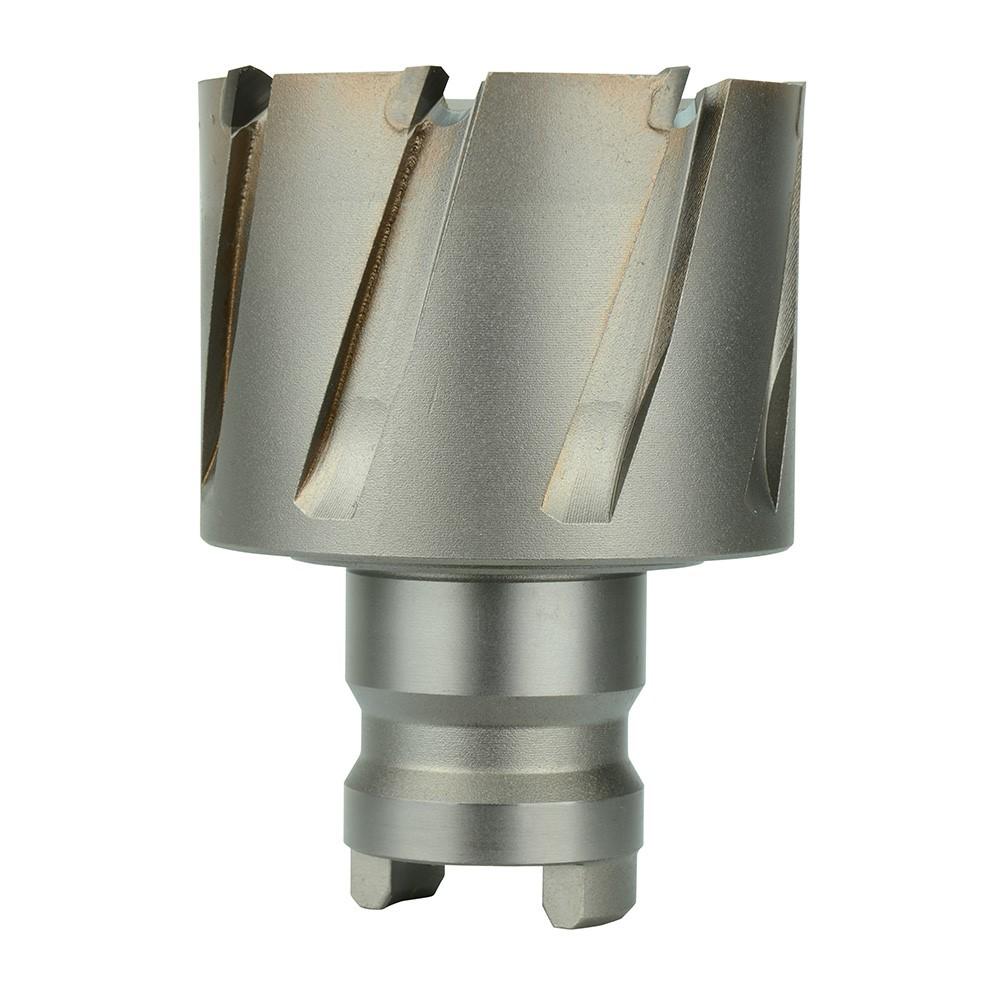

Milwaukee 49-57-0564 Steel Hawg Annular Cutter 9/16 in

Product Description

The MILWAUKEE 49-57-0564 is a quick change tang drive annular cutter designed for fast, clean hole cutting in metal. It cuts a 9/16 inch diameter hole up to 1 inch deep in steel, stainless steel, cast iron, and aluminum. Carbide teeth with an alternating cutting pattern allow it to cut up to three times faster than standard twist drills while producing a ream-like finish. No pre-punching or pilot holes are required. Licensed electricians, ironworkers, pipefitters, and mechanical contractors use this cutter with electromagnetic and magnetic drill presses on structural and fabrication work.

This cutter is suited for both field and shop applications where repetitive hole cutting in ferrous and non-ferrous metals is required. It is compatible with the Milwaukee 4252 Steel Hawg magnetic drill press. It also fits Milwaukee magnetic drill presses 4292-1 and 4297-1 when used with arbor 49-57-0012 or 49-57-0013, and the 4262-1 mag press when used with arbor 49-57-0032. The quick change tang drive allows fast swap-outs between cutters without extended downtime during production drilling.

Key Features

• Alternating tooth geometry cuts up to 3 times faster than conventional twist drills in steel
• Carbide teeth resist abrasion for extended cutter life and cleaner hole finish
• Quick change tang drive enables fast cutter changes on compatible magnetic drill presses
• Cuts without pre-punching or pilot holes, reducing setup time
• Compatible with No. 3 Morse taper arbor assembly 49-57-0010
• Produces a ream-like finish in steel, stainless steel, cast iron, and aluminum

Compatibility

Designed for use with the Milwaukee 4252 Steel Hawg magnetic drill press. Compatible with Milwaukee 4292-1 and 4297-1 mag drill presses using arbor 49-57-0012 or 49-57-0013, and with Milwaukee 4262-1 using arbor 49-57-0032. Also fits No. 3 Morse taper arbor assembly 49-57-0010. Works with most electromagnetic drill presses accepting a quick change tang drive.

Installation Notes

Installation is performed by a qualified tradesperson familiar with magnetic drill press operation. Secure the magnetic drill press fully to the workpiece before beginning any cut and verify the cutter is locked into the arbor before powering the unit. Disconnect power to the drill press before changing cutters. Follow the drill press manufacturer guidelines and applicable OSHA standards for magnetic drill press operation and personal protective equipment.

Technical Specifications

• Cutting Diameter: 9/16 inches
• Maximum Cutting Depth: 1 inch
• Tooth Material: Carbide
• Drive Type: Quick Change Tang Drive
• Compatible Materials: Steel, Stainless Steel, Cast Iron, Aluminum
• Length: 1.75 inches
• Width: 3.25 inches
• Height: 1.7 inches
• Weight: 0.24 pounds
• Sold As: Each

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-57-0564
