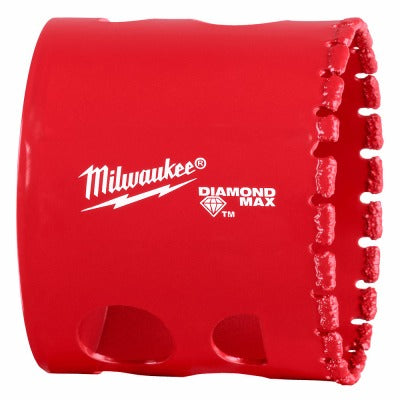

Milwaukee 49-56-5645 Diamond Hole Saw 2 Inches Tile Stone

Product Description

The MILWAUKEE ELECTRIC TOOL CORP 49-56-5645 is a 2-inch diamond hole saw designed for cutting anchoring and clearance holes in tile, stone, and glass. It uses higher-grade diamonds with an improved braze bond for extended cutting performance, delivering up to 10 times longer service life compared to standard diamond hole saws. A large slug ejection slot is built into the saw body to simplify plug removal after each cut. This tool is suited for professional tile setters, stone fabricators, and skilled tradespeople who require consistent, clean-bore holes in hard, abrasive materials.

This hole saw is used in residential and commercial applications where precise holes must be cut through ceramic tile, porcelain, natural stone, or glass. Typical install scenarios include setting anchor points, creating pass-throughs for plumbing or electrical, and cutting fixture mounting holes. The 2-inch diameter makes it well suited for standard anchor and fixture clearance work. It is compatible with Arbor TV 197-869, making integration into an existing tool setup straightforward.

Key Features

• 2-inch cutting diameter for anchor and clearance hole applications
• Higher-grade diamonds with improved braze bond for extended durability and toughness
• Up to 10 times longer life compared to standard diamond hole saws
• Large slug ejection slot for fast, easy plug removal after cutting
• Versatile cutting across tile, stone, and glass surfaces
• Compatible with Arbor TV 197-869

Compatibility

Compatible with Arbor TV 197-869. Designed for use on all tile, stone, and glass materials in anchoring and clearance hole applications.

Installation Notes

Installation and use should be performed by a qualified tradesperson familiar with diamond wet or dry cutting tools. Before use, confirm the arbor connection is secure and the workpiece is properly supported and clamped. Use appropriate water cooling if required by the substrate to prevent overheating the diamond segment. Always wear appropriate personal protective equipment, including eye protection and gloves, when operating hole saws on tile, stone, or glass.

Technical Specifications

• Cutting Diameter: 2 inches
• Weight: 1.4 pounds
• Compatible Arbor: TV 197-869
• Unit of Measure: EA
• Package Quantity: 5

Standard Information

• Brand: MILWAUKEE ELECTRIC TOOL CORP
• Manufacturer Part Number: 49-56-5645
