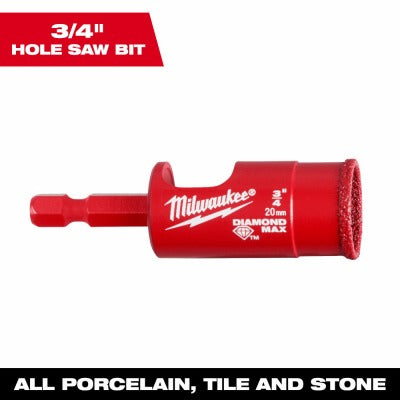

Milwaukee 49-56-0515 Diamond Hole Saw 3/4 Inch Tile Stone Glass

Product Description

The MILWAUKEE ELECTRIC TOOL CORP 49-56-0515 is a 3/4-inch diamond hole saw designed for cutting anchor and clearance holes in tile, stone, and glass. It features higher-grade diamonds and an improved braze bond that deliver extended service life compared to standard diamond hole saws. A large slug ejection slot speeds up plug removal and reduces downtime between cuts. No arbor is required, making setup fast and straightforward. This hole saw is suited for tile setters, plumbers, electricians, and general contractors working on installations that require clean, precise holes through hard materials.

This hole saw is well matched to residential and light commercial applications where anchoring or clearance holes are needed in ceramic tile, porcelain, natural stone, and glass. Typical install scenarios include fixture mounting through tiled walls, pipe and conduit penetrations through tile floors, and decorative or utility cutouts in glass panels. The 3/4-inch diameter suits standard anchor sleeve and conduit stub-through requirements common in finish trades.

Key Features

• Higher-grade diamonds with improved braze bond for extended cutting life
• Rated for up to 10 times longer service life versus standard diamond hole saws
• Large slug ejection slot allows fast, easy plug removal
• No arbor required — fits direct to compatible drill chucks
• Cuts tile, stone, and glass in a single versatile tool
• 3/4-inch diameter suits anchor clearance and conduit stub-through applications

Compatibility

Designed as an OEM-style diamond hole saw for use with standard drill drivers and hammer drills accepting a compatible shank; no separate arbor is required for installation.

Installation Notes

Installation is typically performed by tile setters, plumbers, or electricians using a variable-speed drill or hammer drill set to drill mode — do not use hammer mode when cutting tile or glass. Keep the cutting surface continuously wet or use a water-feed attachment to manage heat and extend diamond life. Secure the workpiece firmly before starting the cut to prevent cracking. Follow applicable trade codes and wear appropriate eye and hand protection when cutting hard materials.

Technical Specifications

• Cutting Diameter: 3/4 inches
• Cutting Material: Diamond
• Application: Tile, stone, glass
• Arbor Required: No
• Package Quantity: 3 per unit of measure
• Weight: 0.28 pounds

Standard Information

• Brand: MILWAUKEE ELECTRIC TOOL CORP
• Manufacturer Part Number: 49-56-0515
