Product Description

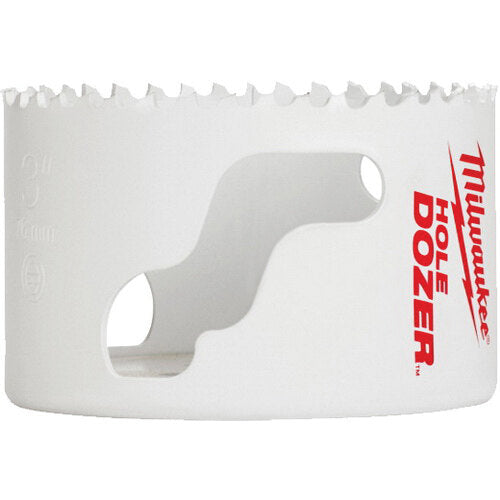

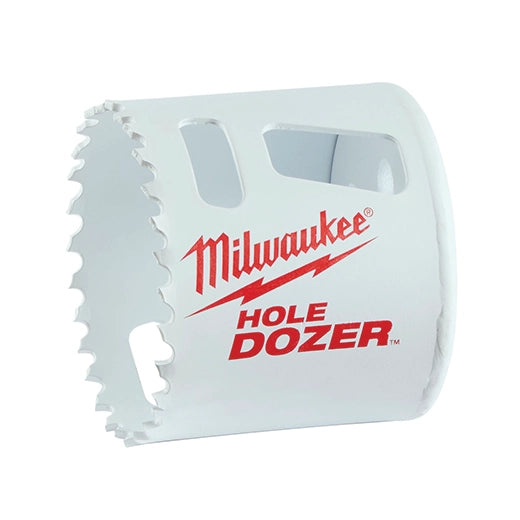

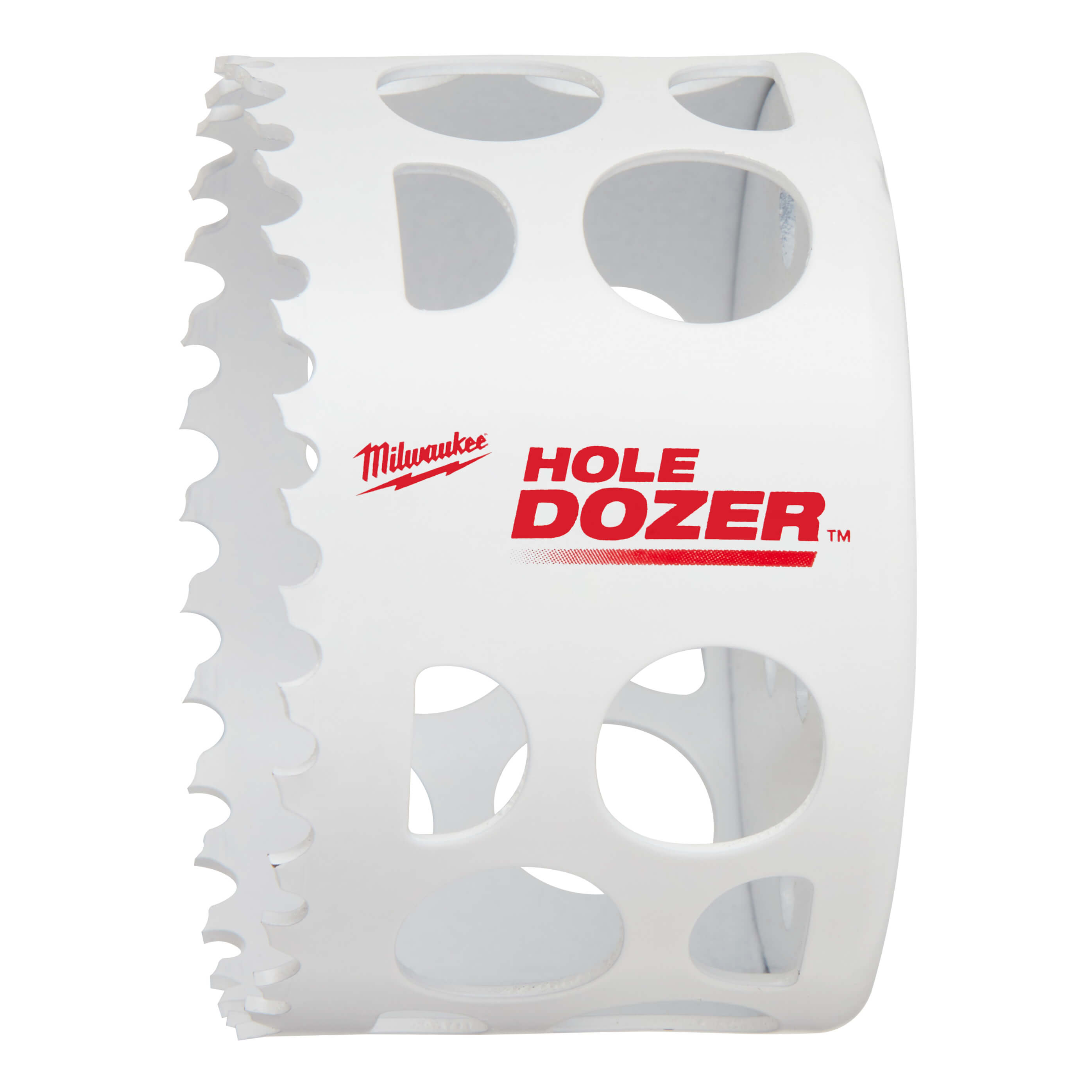

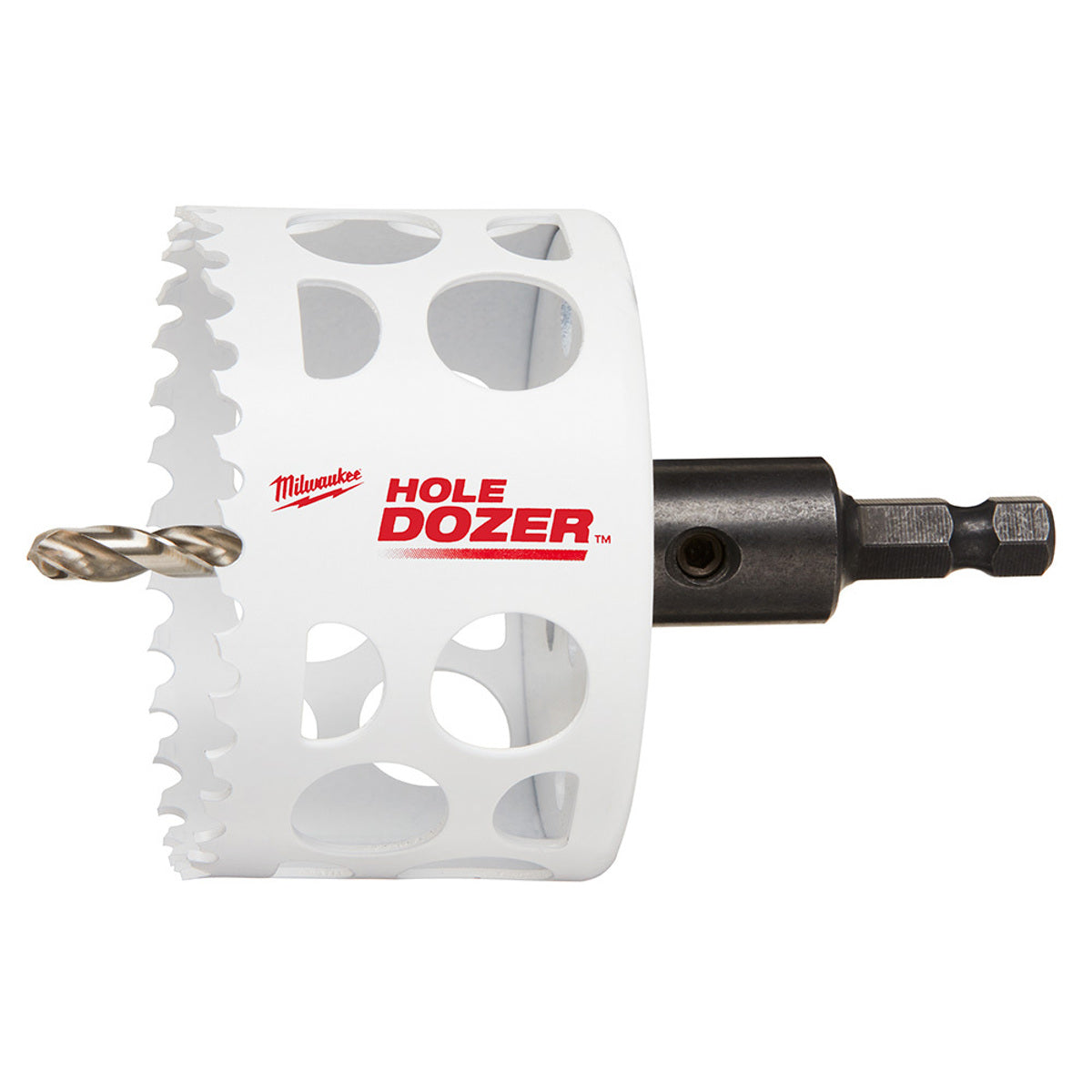

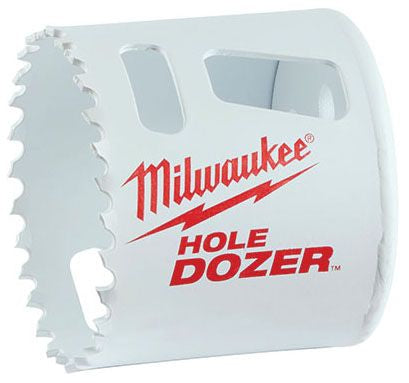

The Milwaukee 49-56-0173 Ice Hardened Hole Saw is cryogenically treated for up to 50 percent longer life. It features an optimized tooth form for up to 2X faster cutting and wide, angled, and offset slots for easy plug access. The bi-metal construction contains 8 percent cobalt for increased wear resistance.
- Cryogenically treated for up to 50 percent longer life
- Optimized tooth form for up to 2X faster cutting
- Wide, angled and offset slots for easy plug access
Product Highlights
This hole saw offers increased wear resistance due to its bi-metal construction with 8 percent cobalt.
Product Information
Standard Information
-
Brand: MILWAUKEE
-
Manufacturer Part Number: 49-56-0173
-
Country of Origin: USA
Technical Specifications
-
MPN: 49-56-0173
-
ItemID: MIL49560173
-
DisplayName: MIL49-56-0173
-
UPCCode: 45242193332.0
-
Manufacturer: Milwaukee
-
Brand: Milwaukee
-
UOM: Each
-
PurchaseDescription: Hole Saw, ICE HARDENED HOLE SAW 3"
-
MinQty: 1
-
ProductCategory: Power Tools & Accessories
-
ProductSegment: Drilling Accessories
-
ProductLine: Hole Saws
-
StoreDisplayName: 49-56-0173 Milwaukee Ice Hardened Hole Saw,Hole Saw,3"
-
StoreDescription: Milwaukee Ice Hardened Hole Saw, Type: Hole Saw, Size: 3"
-
Type: Hole Saw
-
Size: 3"
-
Height: 1-7/8|in
-
Length: 2.3 in
-
Width: 4.97 in
-
Diameter: 3 inch
-
Cutting Depth: 2.63 in
-
Material: Bi-Metal
-
Style: Industrial
-
Power Source: Electric Powered
-
Number of Pieces: 1
-
Measurement System: Metric
-
Batteries Included?: No
-
Batteries Required?: No
-
Compatible Material: Wood, Aluminum, Metal
-
Included Components: Hole Saw
-
Item Model Number: 49-56-0173
-
Part Number: 49-56-0173
-
Maximum Cut: 1-5/8 inch
-
Teeth Per Inch: 4/6
-
Arbor Size: 5/8-18
-
Thread Size: 5/8-18
-
Drill Size: 1/4 inch dia. x 3-1/2 inch L
-
Application: For Drilling Wood, Stainless Steel, Brass, Copper, Sheet Metal, Plastic
-
For Use With: Universal Quick-Change Arbors 49-56-7210, 49-56-7240, 49-56-7250, and 49-56-9100
-
Number of Teeth per Inch: 3.5
-
Speed Rating: 55 RPM (Stainless Steel), 75 RPM (Cast Iron), 115 RPM (Mild Steel), 170 RPM (Aluminum)
-
Blade Material: Bi-Metal
-
Process: Cryogenically Treated
-
Cut Material: Machinable and Non-Ferrous Metal, Wood, Plastic
-
Packaging Type: Hanging Container
-
Dia: 3 in
-
TPI: 3.5
-
Overall Length: 1-7/8 in
-
Cutting Edge: Bi-Metal/8% Cobalt
-
Body: Carbon Steel
-
Cutting Edge Type: Toothed
-
rpm: 55/75/115/170 rpm
-
Chuck: 3/8 in
-
Shank: Round
-
Use Arbor: 49-56-7040/49-56-7055/49-56-7140/49-56-7150/49-56-7210/49-56-7240/49-56-7250 and 49-56-9100
-
Applicable Materials: Aluminum, Cast Iron, Mild Steel, Sheet Metal and Stainless Steel
-
Maximum RPM: 170
-
Arbor Type: Hole Saw
-
Shank Shape: Round
-
Product Type: Hole Saw
-
Selling Size: 3|in
-
Pitch Pattern: Constant
-
Shank Diameter: 3/8|in
-
Blade Thickness: 1-5/8|in
-
Special Features: Long Life
-
Maximum Speed Rating: 170 RPM Aluminum, 75 RPM Cast Iron, 115 RPM Mild Steel, 55 RPM Stainless Steel|RPM
-
Material Compatibility: Aluminum, Cast Iron, Mild Steel, Stainless Steel
-
Catalog Number: 49-56-0173
-
Model Number: 49-56-0173
-
UPC: 045242193332
-
Useable Length: 2.63 in
-
Packaging: Clamshell
-
Depth of Cut: 1-5/8"
-
Pack Qty: 1 Pack
-
Material Composition: High Speed Steel
-
Material Application: Wood|Metal
-
Cutting Edge Material: Bi-Metal/8% Cobalt
-
Chuck Size: 3/8 Inch
-
RPM Stainless Steel: 55
-
RPM Mild Steel: 115
-
RPM Cast Iron: 75
-
RPM Aluminum: 170
-
Body Material: Carbon Steel
-
Drill: 1/4 in Dia x 3-1/2 in L
-
Color: White
-
For use in: general purpose applications such as thick/thin metals, aluminum, drywall, plastics, wood, wood with nails
