Product Description

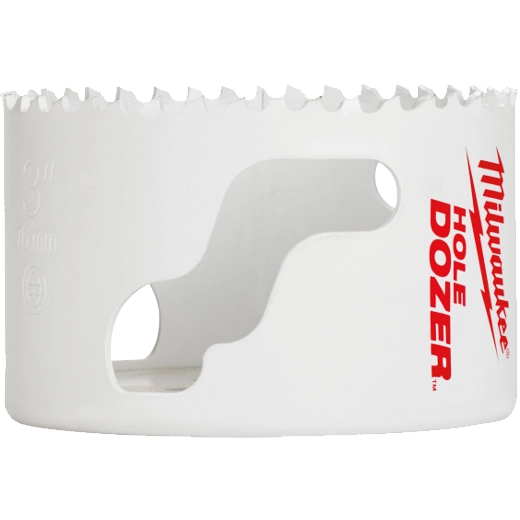

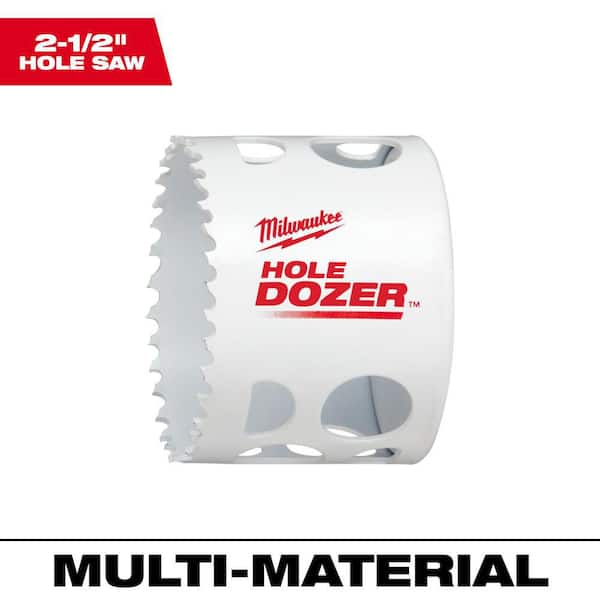

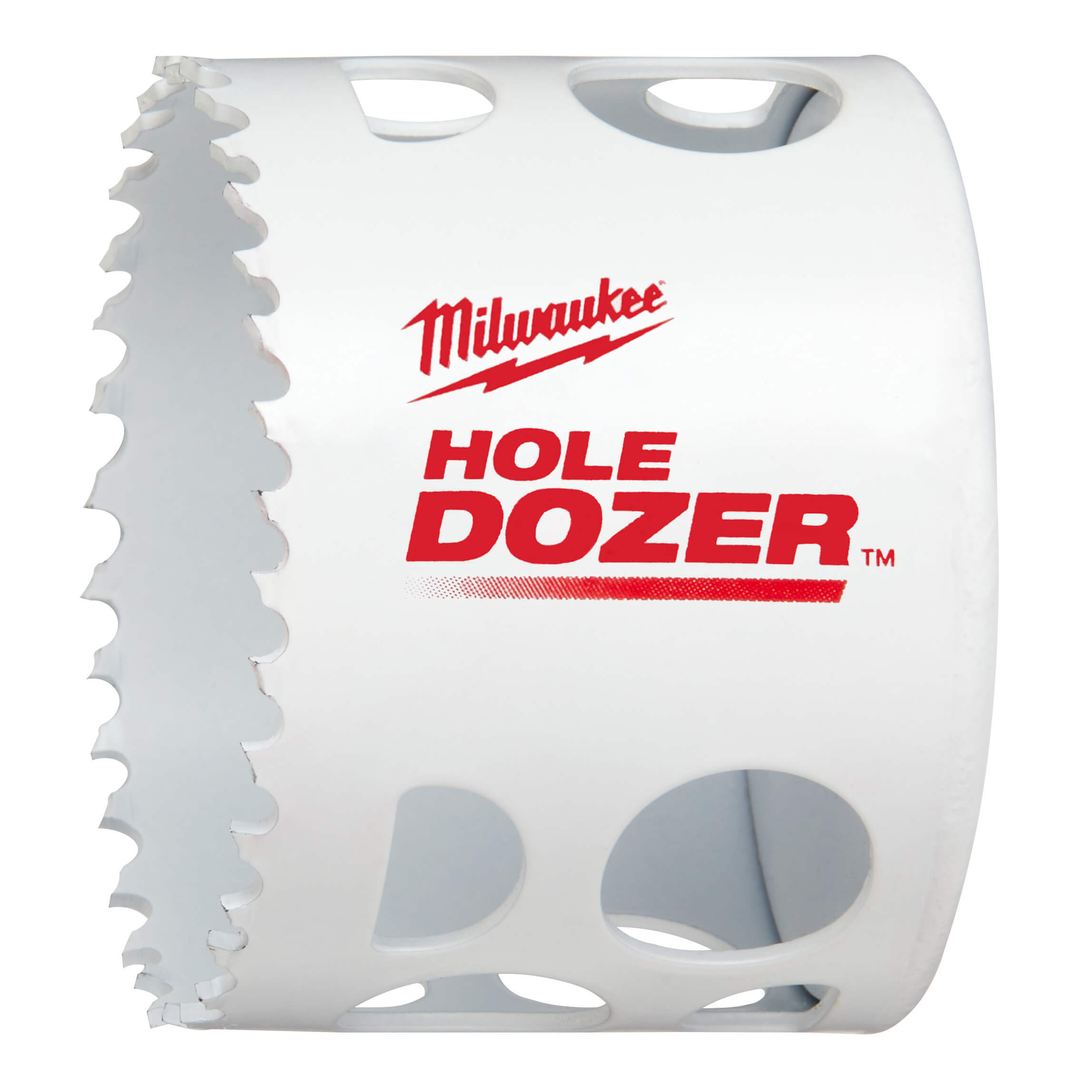

The MILWAUKEE 49-56-0147 Hole Dozer Bi-Metal Hole Saw features Rip Guard, the strongest tooth form in the industry, backed by the Rip Guard Limited Lifetime Tooth Break Warranty. Each tooth is built with more steel behind the cutting edge for added strength. The Hole Dozer includes Plug Jack, an all access slot design for full access during plug removal.
- Rip Guard technology for strongest tooth form
- Rip Guard Limited Lifetime Tooth Break Warranty
- 8% cobalt for added tooth life
Product Highlights
Made in the USA, the Milwaukee Hole Dozer hole saw is ideal for drilling wood, stainless steel, brass, copper, sheet metal, and plastic.
Product Information
Standard Information
-
Brand: MILWAUKEE
-
Manufacturer Part Number: 49-56-0147
-
Country of Origin: USA
Technical Specifications
-
Drilling Depth (in): 2
-
Recommended Safety Equipment: Safety Glasses
-
Kit: No
-
Teeth per Inch: 6
-
Package Contents: (1) Hole saw
-
Bit Type: Hole Saw
-
Case Included: No
-
Hole Saw Material: Bi-Metal
-
Hole Saw Diameter (in): 2-1/2"
-
Minimum Chuck Size Required: 3/8 in
-
Saw Diameter: 2-1/2 inch
-
Maximum Cut: 1-5/8 inch
-
Arbor Size: 5/8-18
-
Thread Size: 5/8-18
-
Drill Size: 1/4 inch dia. x 3-1/2 inch L
-
Material: Bi-Metal
-
Application: For Drilling Wood, Stainless Steel, Brass, Copper, Sheet Metal, Plastic
-
Cutting Depth: 1-5/8 Inch
-
Type: Constant Pitch
-
Supplied with Arbor: No
-
Arbor Shank Type: Straight
-
Supplied with Pilot Drill: No
-
Speed Rating: 65 RPM (Stainless Steel), 90 RPM (Cast Iron), 135 RPM (Mild Steel), 205 RPM (Aluminum)
-
Process: Cryogenically Treated
-
Cut Material: Machinable and Non-Ferrous Metal, Wood, Plastic
-
Diameter: 2-1/2 in
-
TPI: 3.5
-
Overall Length: 1-7/8 in
-
Cutting Edge Material: Bi-Metal/8% Cobalt
-
Body Material: Carbon Steel
-
Cutting Edge Type: Toothed
-
RPM: 205/90/135/65 rpm
-
Chuck Size: 7/16 in
-
Shank Type: Hex
-
Arbor Compatibility: 49-56-7040/49-56-7055/49-56-7140/49-56-7150/49-56-7210/49-56-7240/49-56-7250 and 49-56-9100
-
Applicable Materials: Aluminum, Cast Iron, Mild Steel, Sheet Metal and Stainless Steel
-
Number of Teeth per Inch: 3.5
-
Packaging Type: Hanging Container (Clamshell)
-
Catalog Number: 49-56-0147
-
Manufacturer: Milwaukee Electric Tool
-
Country of Origin: United States
-
Made in USA: Yes
-
Useable Length: 2 in
-
Package Type: Hanging Container
-
Material Composition: High Speed Steel
-
Material Application: Wood|Metal
-
Bit Material: Bi-Metal
-
Pitch Pattern: Constant
-
Shank Diameter: 7/16|in
-
Maximum Speed Rating: 205 RPM Aluminum, 90 RPM Cast Iron, 135 RPM Mild Steel, 65 RPM Stainless Steel|RPM
-
Material Compatibility: Aluminum, Cast Iron, Mild Steel, Stainless Steel
-
Selling Size: 2-1/2|in
