Product Description

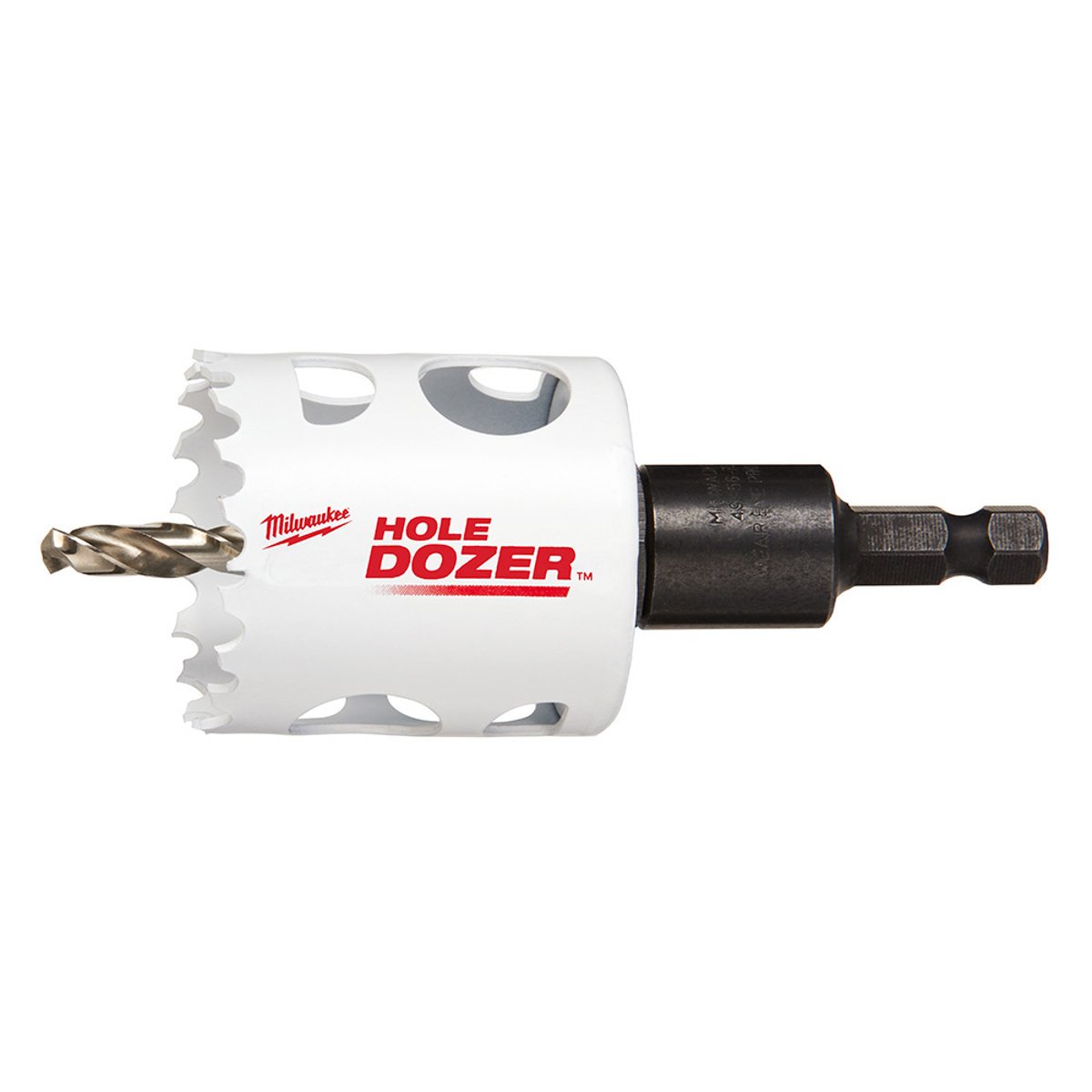

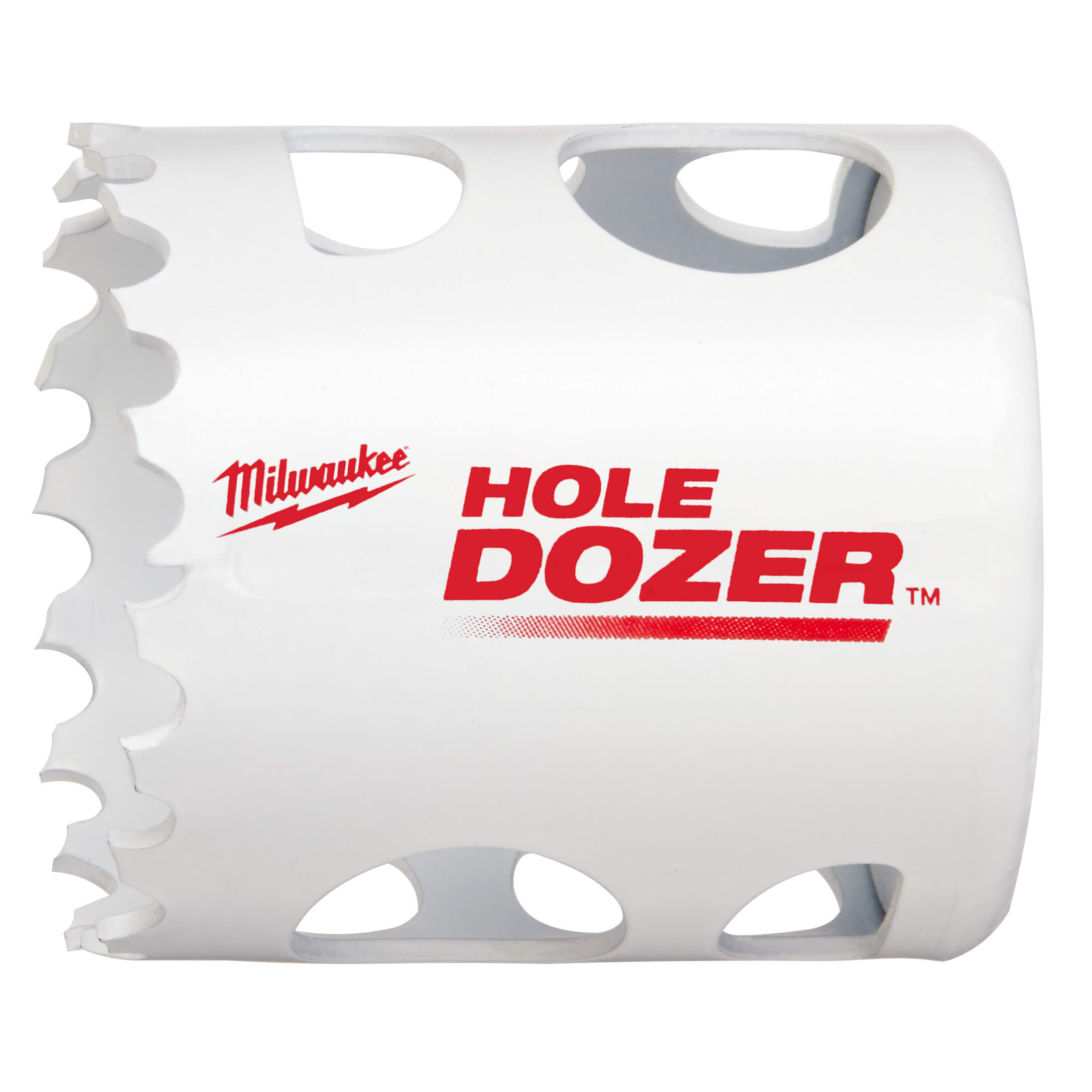

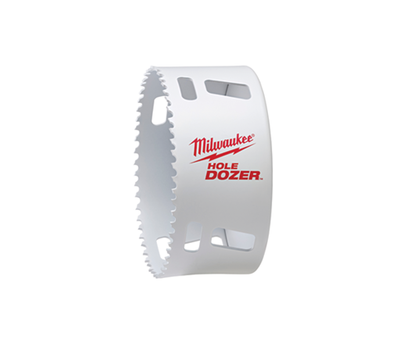

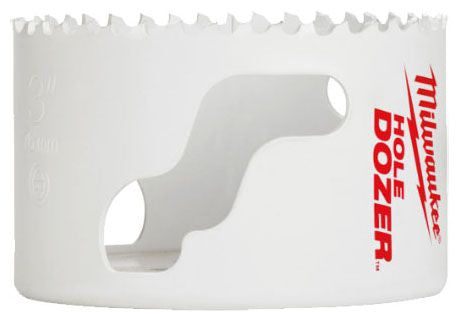

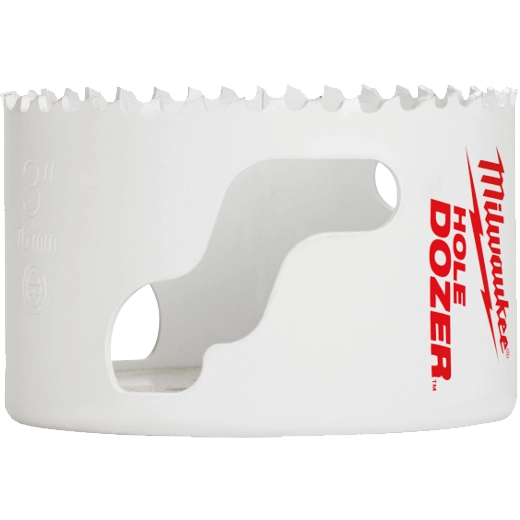

The Milwaukee 49-56-0102 ice hardened hole saw is cryogenically treated for up to 50 percent longer life. Optimized tooth form allows for up to 2X faster cutting. Wide, angled and offset slots provide easy plug access. The bi-metal construction contains 8 percent cobalt for increased wear resistance. It is designed for use in general purpose applications such as thick/thin metals, aluminum, drywall, plastics, wood, and wood with nails.
- Cryogenically treated for up to 50 percent longer life
- Optimized tooth form for up to 2X faster cutting
- Bi-metal construction with 8% cobalt for increased wear resistance
Product Highlights
The Milwaukee ice hardened hole saw features optimized tooth form, wide slots for easy plug access, and bi-metal construction for increased wear resistance.
Product Information
Standard Information
-
Brand: MILWAUKEE
-
Manufacturer Part Number: 49-56-0102
-
Country of Origin: USA
Technical Specifications
-
MPN: 49-56-0102
-
Manufacturer: Milwaukee
-
Brand: Milwaukee
-
UOM: Each
-
ProductCategory: Power Tools & Accessories
-
ProductSegment: Drilling Accessories
-
ProductLine: Hole Saws
-
Type: Bi-Metal Hole Saw
-
Size: 1-3/4"
-
Diameter: 1-3/4 in
-
Cutting Depth: 1-1/2 in
-
Material: Carbon Steel
-
Cutting Edge: Bi-Metal/8% Cobalt
-
Tooth Design: 3.5 TPI
-
Supplied with Arbor: No
-
Arbor Shank Type: Straight
-
Supplied with Pilot Drill: No
-
Speed Rating: 95 RPM (Stainless Steel), 130 RPM (Cast Iron), 195 RPM (Mild Steel), 295 RPM (Aluminum)
-
Blade Material: Bi-Metal
-
Process: Cryogenically Treated
-
Cut Material: Machinable and Non-Ferrous Metal, Wood, Plastic
-
Finish: Thermoset Paint Coated
-
Application: General Purpose
-
Packaging Type: Clamshell
-
Overall Length: 1-7/8 in
-
Drill Size: 1/4 in Dia x 3-1/2 in L
-
Body Material: Carbon Steel
-
Cutting Edge Type: Toothed
-
Chuck Size: 3/8 in
-
Shank Type: Round
-
Use Arbor: 49-56-7040/49-56-7055/49-56-7140/49-56-7150/49-56-7210/49-56-7240/49-56-7250 and 49-56-9100
-
Applicable Materials: Aluminum, Cast Iron, Mild Steel, Sheet Metal and Stainless Steel
-
Number of Pieces: 1
-
Compatible Material: Wood, Metal
-
Item Model Number: 49-56-0102
-
Teeth Per Inch: 6|TPI
-
Maximum Speed Rating: 295 RPM Aluminum, 130 RPM Cast Iron, 195 RPM Mild Steel, 95 RPM Stainless Steel|RPM
-
Height: 1-7/8|in
-
Arbor Size: 5/8-18
-
Tooth Type: Rip Guard
-
RPM Stainless Steel: 95
-
RPM Mild Steel: 195
-
RPM Cast Iron: 130
-
RPM Aluminum: 295
-
Depth of Cut: 1-5/8"
-
Pack Qty: 1 Pack
-
Length: 2.22 in
-
Width: 2.94 in
-
Unit Length (in.): 3.95 in
-
Unit Depth (in.): 2.22 in
-
Unit Width (in.): 2.94 in
-
Unit Height (in.): 3.94 in
-
Selling Size: 1-3/4|in
-
Pitch Pattern: Constant
-
Catalog Number: 49-56-0102
-
Shank Diameter: 3/8|in
-
Material Compatibility: Aluminum, Cast Iron, Mild Steel, Stainless Steel
-
Applications: For 1-1/2 in Pipe Taps
-
Drilling Depth: 2.63 in
-
Thread: 1/2"-20
-
Packaging: Pkg Qty
-
Sub Brand: Ice Hardened™
-
12-Digit UPC: 045242193097
-
Hole Diameter: 1-3/4 IN
-
CA Prop65 Warning: No
-
Material Composition: High Speed Steel
-
Material Application: Wood|Metal
-
Overall Dimensions (L x W x H): 3.938 x 2.938 x 2.220
