Product Description

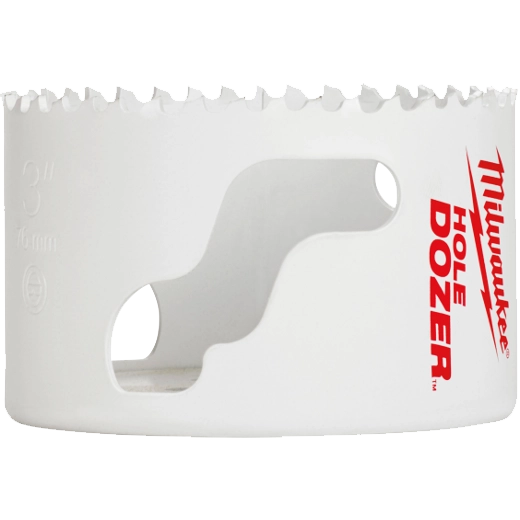

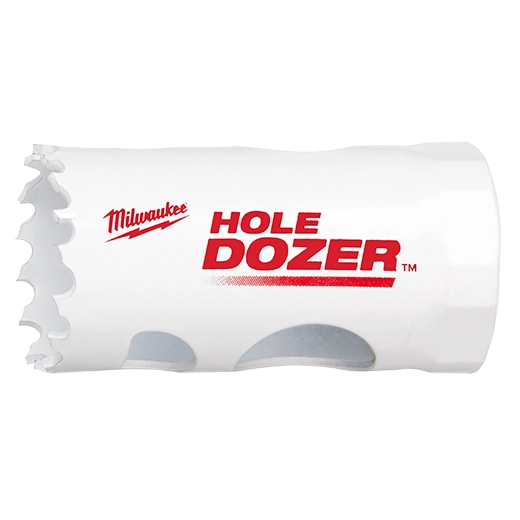

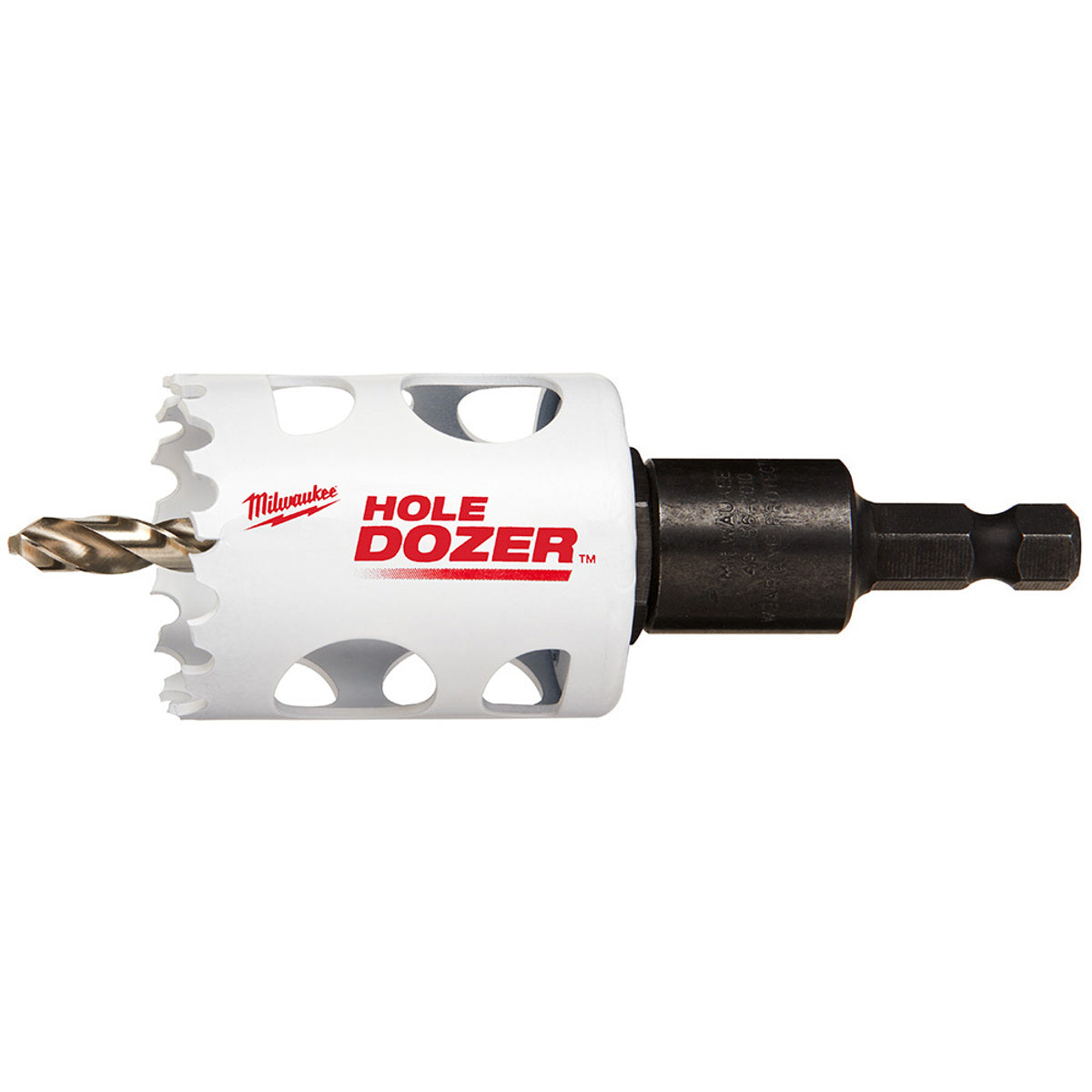

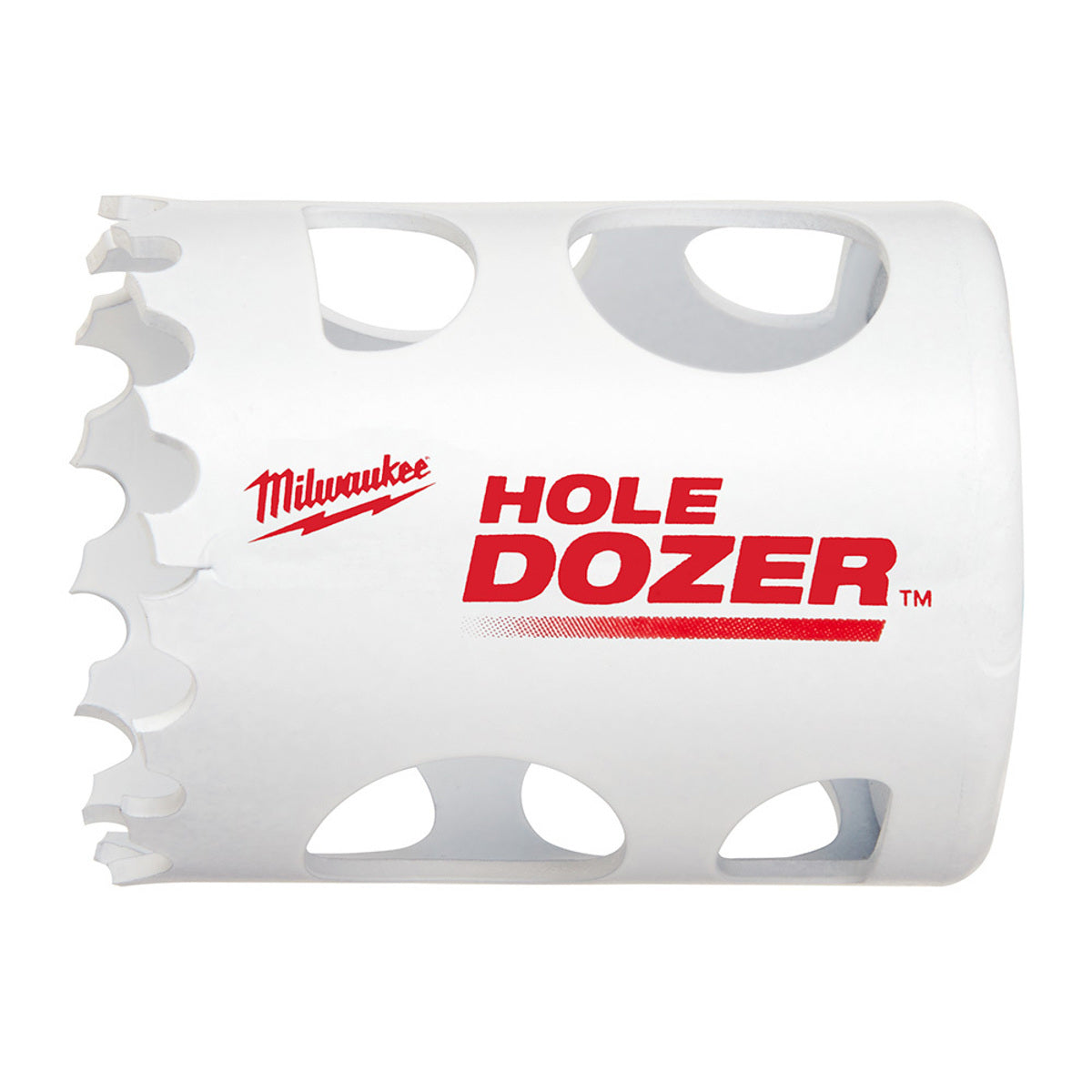

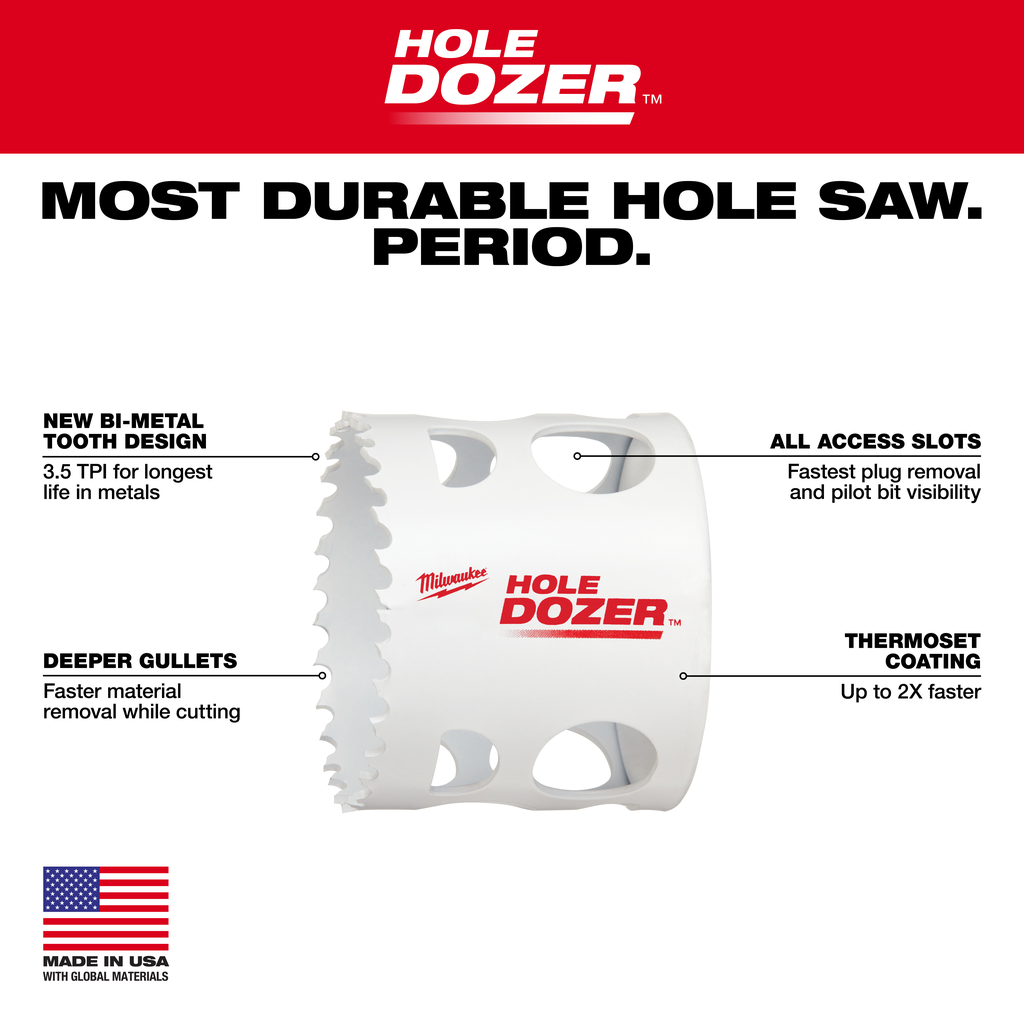

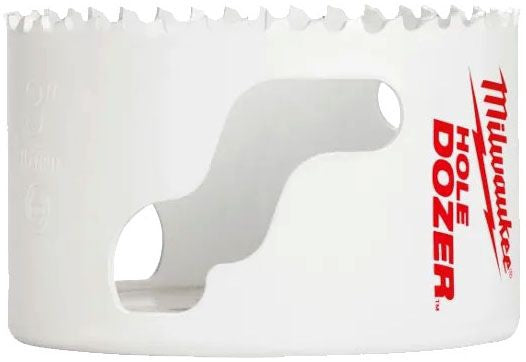

The Milwaukee 49-56-0092 Ice Hardened Hole Saw is designed for cutting metal and wood. Cryogenically treated for up to 50 percent longer life, it features an optimized tooth form for up to 2X faster cutting. The hole saw has wide, angled, and offset slots for easy plug access and bi-metal construction with 8 percent cobalt for increased wear resistance.
- Cryogenically treated for up to 50 percent longer life
- Optimized tooth form for up to 2X faster cutting
- Wide, angled and offset slots for easy plug access
Product Highlights
The Milwaukee Ice Hardened Hole Saw offers increased wear resistance and faster cutting speeds.
Product Information
Standard Information
-
Brand: MILWAUKEE
-
Manufacturer Part Number: 49-56-0092
-
Country of Origin: USA
Technical Specifications
-
MPN: 49-56-0092
-
UOM: Each
-
ProductCategory: Power Tools & Accessories
-
ProductSegment: Drilling Accessories
-
ProductLine: Hole Saws
-
Manufacturer: Milwaukee
-
Brand: Milwaukee
-
Type: Bi-Metal Hole Saw
-
Size: 1-5/8"
-
Diameter: 1-5/8 Inch
-
Cutting Depth: 1-5/8 in
-
Number of Teeth per Inch: 4 to 6
-
Speed Rating: 105 RPM (Stainless Steel), 140 RPM (Cast Iron), 210 RPM (Mild Steel), 280 RPM (Non-Ferrous), 315 RPM (Aluminum), 1200 RPM (Wood), 600 RPM (Medium Density Fiberboard)
-
Blade Material: Bi-Metal
-
Process: Vacuum Hardened
-
Finish: Thermoset Paint Coated
-
Cut Material: Steel, Stainless Steel, Acid Resistant Steel, Non-Ferrous Metal, Cast Iron, Aluminum, Wood, Medium Density Fiberboard, Gypsum Plasterboard, Sandwich Material, PVC
-
Thread Size: 1/2 Inch-20 TPI
-
Tooth Angle: 10 Degree
-
Catalog Number: 49-56-0092
-
Country of Origin: United States
-
Made in USA: Yes
-
UPC: 045242193073
-
GTIN: 00045242193073
-
Cutting Diameter: 1-5/8 in
-
Cutting Edge Material: Bi-Metal/8% Cobalt
-
TPI: 3.5
-
Overall Length: 2.63 in
-
Drill Diameter: 1/4 in
-
Drill Length: 3-1/2 in
-
Shank Type: Round
-
Chuck Size: 3/8 in
-
RPM: 105/210/210/315 rpm
-
Applicable Materials: Aluminum, Cast Iron, Mild Steel, Sheet Metal and Stainless Steel
-
Arbor Compatibility: 49-56-7040/49-56-7055/49-56-7140/49-56-7150/49-56-7210/49-56-7240/49-56-7250 and 49-56-9100
-
Useable Length: 2.63 in
-
RPM Stainless Steel: 105
-
RPM Mild Steel: 210
-
RPM Cast Iron: 140
-
RPM Aluminum: 315
-
Packaging: Clamshell
-
Depth of Cut: 1-5/8"
-
Pack Qty: 1 Pack
-
Length: 2.22 in
-
Height: 3.94 in
-
Width: 2.94 in
-
Package Type: Hanging Container
-
Material Composition: High Speed Steel
-
Arbor Hole Size: 5/8-18
-
Body Material: Carbon Steel
-
Pilot Drill Diameter: 1/4 in
-
Pilot Drill Length: 3-1/2 in
-
Saw Diameter: 1-5/8"
-
Shank Size: 1/4 in, 3/8 in, 7/16 in
-
Teeth per Inch: 3.5 TPI
-
Tooth Material: Bi-Metal
-
Finish Coating: Uncoated
-
Material Grade: Multipurpose
-
Slug Removal: Slug Ejection Slot
-
Series: 49-56
-
Recommended Safety Equipment: Safety glasses
-
Drilling Depth: 2.63 in
-
Thread: 1/2"-20
-
Sub Brand: Ice Hardened™
-
Hole Diameter: 1-5/8 IN
-
Cutting Material: Bi-Metal
-
Built In Arbor: Hole Saw Only
-
Cutting Edge Type: Toothed
-
Includes: (1) Hole saw
-
TPI/Number of Teeth: 6
-
Arbor Comp: Milwaukee 49-56-7040, Milwaukee 49-56-7055, Milwaukee 49-56-7140, Milwaukee 49-56-7150, Milwaukee 49-56-7240, Milwaukee 49-56-7250, Milwaukee 49-56-9100
-
Condition: New
-
Item Weight (lbs): 0.2
-
Material: Bi-Metal
