Product Description

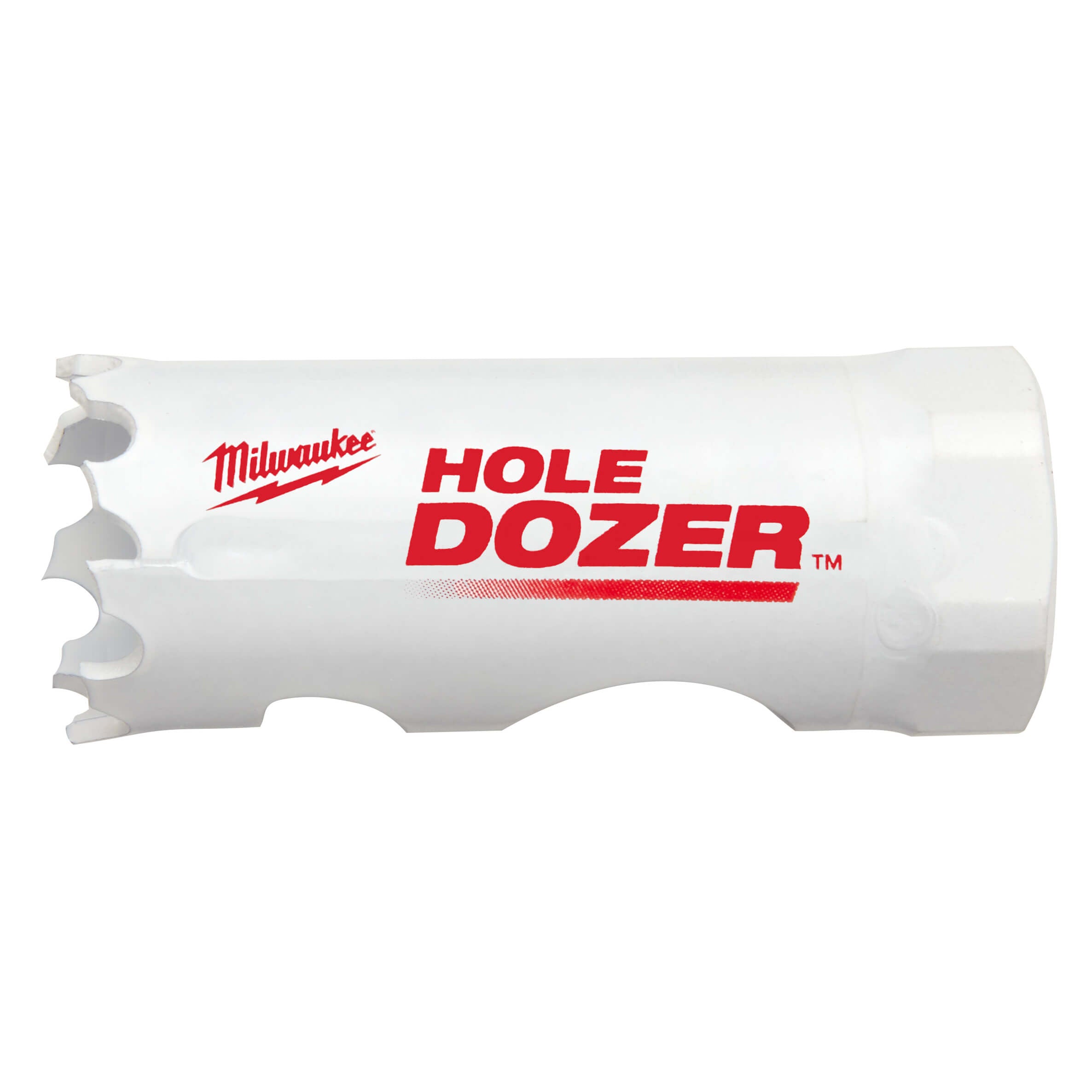

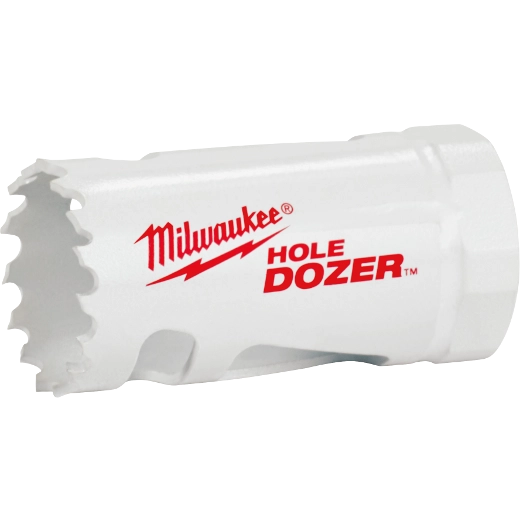

The MILWAUKEE 49-56-0032 Hole Dozer Bi-Metal Hole Saw features Rip Guard technology for a strong tooth form and a Rip Guard Limited Lifetime Tooth Break Warranty. Constructed with 8% cobalt for added tooth life, the Hole Dozer includes Plug Jack, an all access slot design for easy plug removal. Made in the USA.
- Rip Guard technology for strongest tooth form
- Rip Guard Limited Lifetime Tooth Break Warranty
- 8% cobalt for added tooth life
Product Highlights
The Milwaukee Hole Dozer provides a strong tooth form with a limited lifetime warranty and an all access slot design for easy plug removal.
Product Information
Standard Information
-
Brand: MILWAUKEE
-
Manufacturer Part Number: 49-56-0032
-
Country of Origin: USA
Technical Specifications
-
Recommended Safety Equipment: Safety glasses
-
Package Contents: (1) Hole saw
-
Teeth per Inch: 6
-
Hole Saw Diameter (in): 7/8 in
-
Kit: No
-
Case Included: No
-
Hole Saw Type: Multipurpose
-
Hole Saw Material: Bi-Metal
-
Minimum Chuck Size Required: 3/8 in
-
MPN: 49-56-0032
-
Size: 7/8"
-
Type: Bi-Metal Hole Saw
-
Cutting Depth: 1-5/8 in
-
Cutting Edge: Bi-Metal/8% Cobalt
-
TPI: 3.5
-
RPM: 585
-
Material: Aluminum, Bi-Metal
-
Application: General purpose applications such as thick/thin metals, aluminum, drywall, plastics, wood, wood with nails
-
Cutting Edge Material: Bi-Metal/8% Cobalt
-
Body Material: Carbon Steel
-
Cutting Edge Type: Toothed
-
Chuck Size: 3/8 in
-
Shank Type: Hex
-
Arbor Compatibility: 49-56-6950/49-56-7000/49-56-7010/49-56-7210/49-56-7240/49-56-7250 and 49-56-9100
-
Applicable Materials: Aluminum, Cast Iron, Mild Steel, Sheet Metal and Stainless Steel
-
Arbor Size: 7/8-Inch
-
Teeth Per Inch (TPI): 4/6
-
Suitable for: 1/2-Inch pipe entrance size and 3/4-Inch pipe tap size
-
Speed Rating (Mild Steel): 390 RPM
-
Speed Rating (Stainless Steel): 195 RPM
-
Speed Rating (Cast Iron): 260 RPM
-
Speed Rating (Aluminum): 585 RPM
-
Supplied with Arbor: No
-
Blade Material: Bi-Metal
-
Process: Cryogenically Treated
-
Cut Material: Machinable and Non-Ferrous Metal, Wood, Plastic
-
Number of Teeth per Inch: 3.5
-
Dia: 7/8 in
-
Cutting Edge Style: Toothed
-
Speed: 390/195/260/585 rpm
-
RPM Stainless Steel: 195
-
RPM Mild Steel: 390
-
RPM Cast Iron: 260
-
RPM Aluminum: 585
-
Packaging: Clamshell
-
Hole Diameter: 7/8 IN
-
Depth of Cut: 1-5/8"
-
Pack Qty: 1 Pack
-
Use Arbor: 49-56-6950/49-56-7000/49-56-7010/49-56-7210/49-56-7240/49-56-7250 and 49-56-9100
-
Bit Type: Hole Saw
-
Overall Dimensions (L x W x H): 3.938 x 1.969 x 1.063
-
Arbor Type: Hole Saw
-
Shank Shape: Hex
-
Product Type: Hole Saw
-
Selling Size: 7/8|in
-
Pitch Pattern: Constant
-
Catalog Number: 49-56-0032
-
Shank Diameter: 3/8|in
-
Maximum Speed Rating: 585 RPM Aluminum, 260 RPM Cast Iron, 390 RPM Mild Steel, 195 RPM Stainless Steel|RPM
-
Material Compatibility: Aluminum, Cast Iron, Mild Steel, Stainless Steel
-
Thread: 1/2"-20
-
Drilling Depth: 2 in
-
Brand Name: Milwaukee
-
Part Number: MET49560032
-
Manufacturer: Milwaukee Electric Tool
-
Compatible Material: Metal
-
Unit Length (in.): 3.8 in
-
Unit Depth (in.): 1.06 in
-
Unit Width (in.): 1.97 in
-
Unit Height (in.): 3.94 in
-
Description: 7/8" Hole Dozer Bi-metal Hole Saw
-
PDW MFR CAT: 49-56-0032
-
Pittman #: 229701
-
Buy Line: MILW
-
Country Of Origin: USA
-
Useable Length: 2 in
-
Material Composition: High Speed Steel
-
Material Application: Wood|Metal
