Product Description

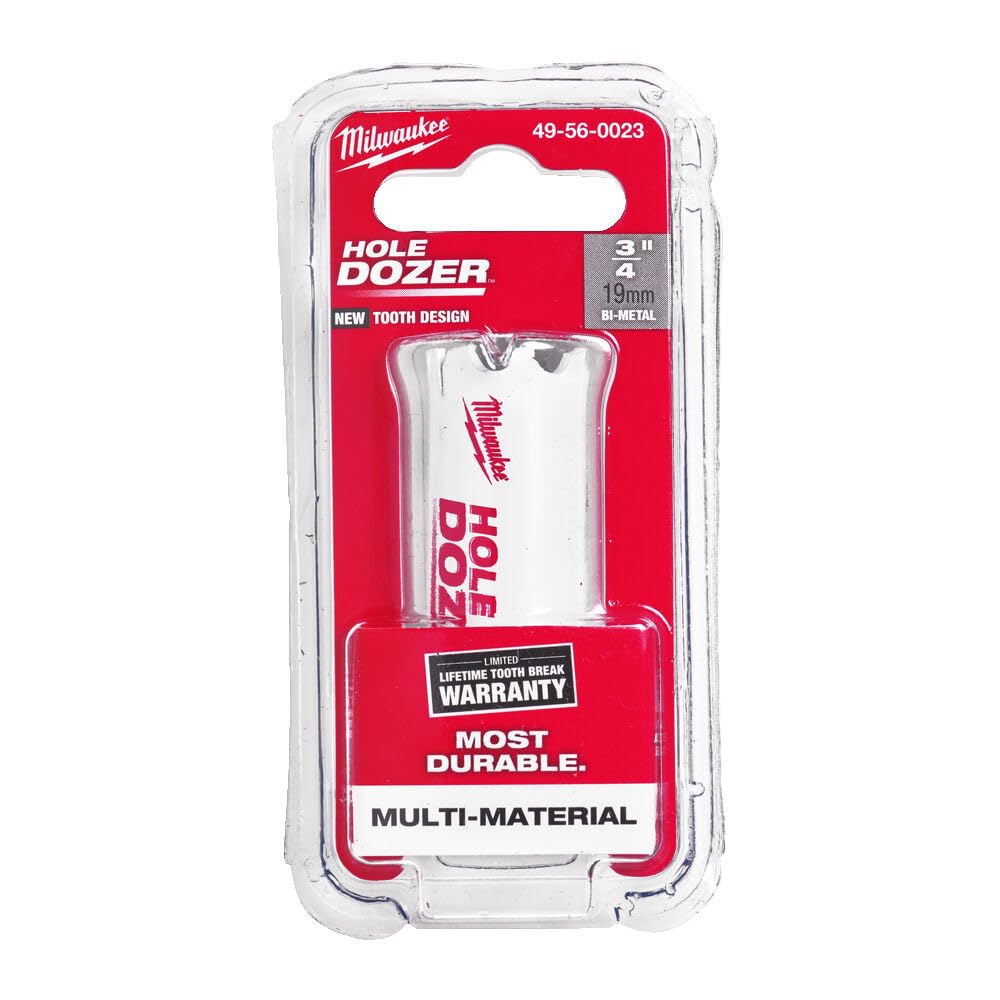

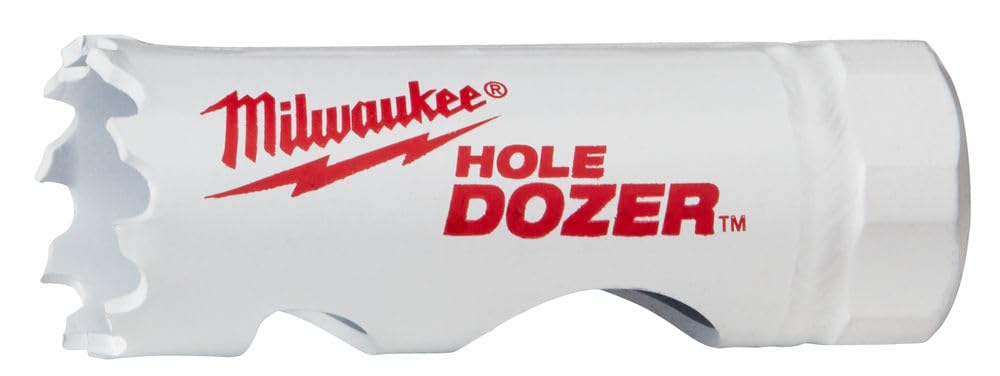

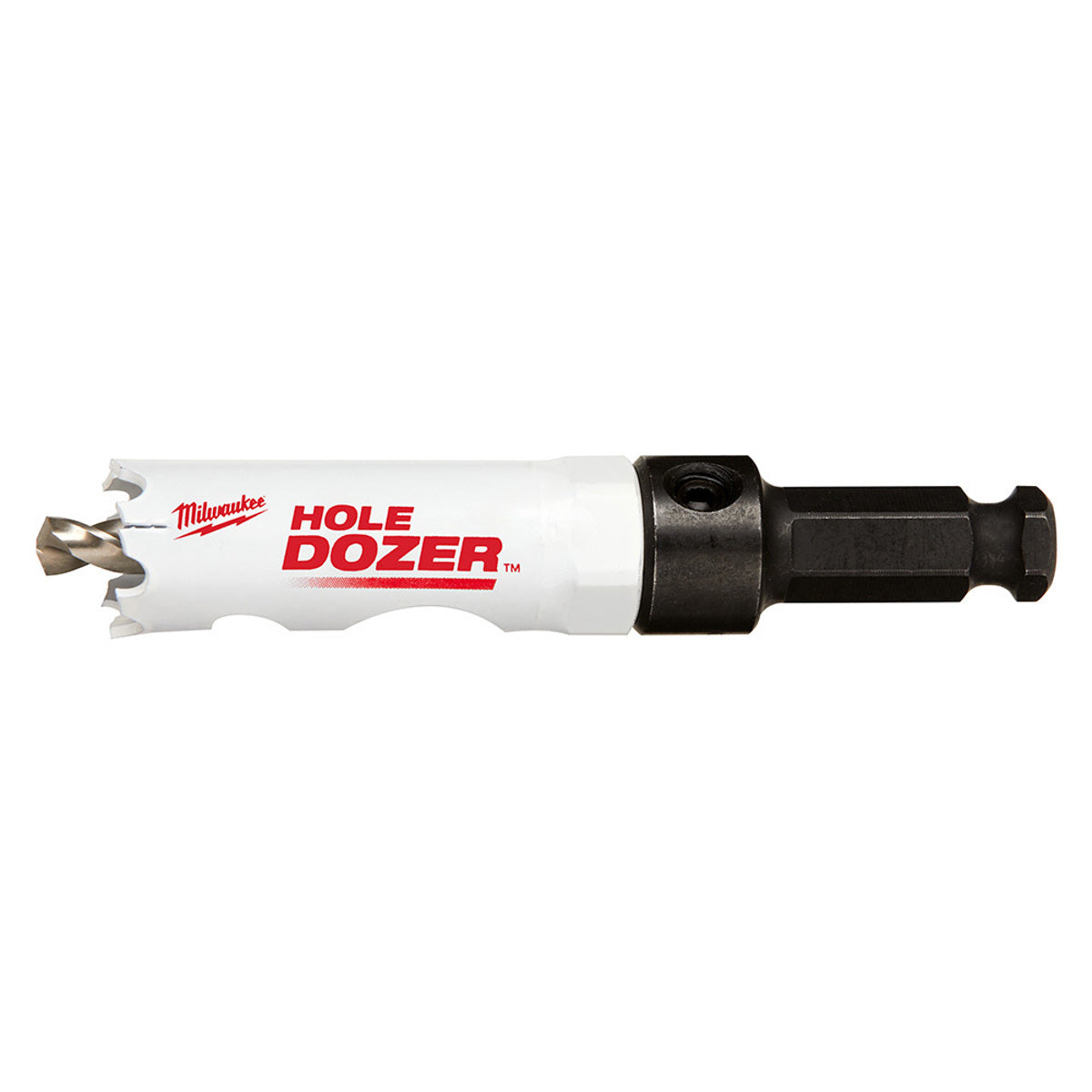

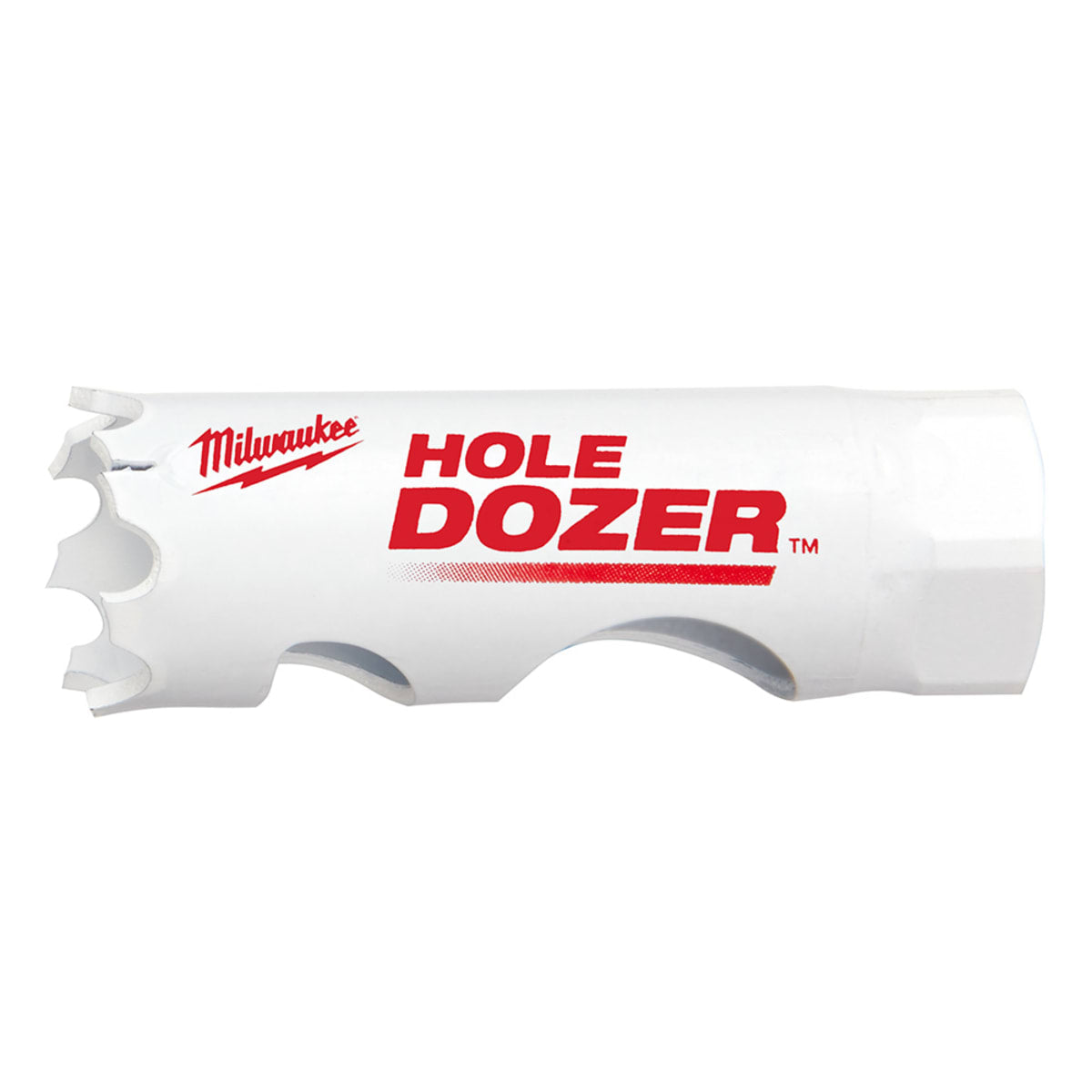

The MILWAUKEE 49-56-0023 Hole Dozer Bi-Metal Hole Saw features Rip Guard technology for strong teeth and a limited lifetime tooth break warranty. Constructed with 8% cobalt for added tooth life, it includes a Plug Jack all access slot design for easy plug removal. Made in the USA, this hole saw has a 3.5 TPI tooth design for long life in metal applications.
- Rip Guard technology for strong teeth
- Limited Lifetime Tooth Break Warranty
- Plug Jack all access slot design for easy plug removal
Product Highlights
Durable bi-metal hole saw with enhanced tooth design and easy plug removal for increased productivity.
Product Information
Standard Information
-
Brand: MILWAUKEE
-
Manufacturer Part Number: 49-56-0023
-
Country of Origin: USA
Technical Specifications
-
Hole Saw Material: Bi-Metal
-
Recommended Safety Equipment: Safety glasses
-
Hole Saw Type: Multipurpose
-
Length: 2.63 Inches
-
Pilot Bit Diameter (in): 0
-
Teeth per Inch: 6
-
Package Contents: (1) Hole saw
-
Hole Saw Diameter (in): 3/4 in
-
Bit Type: Hole Saw
-
Kit: No
-
MPN: 49-56-0023
-
Cutting Depth: 1-5/8"
-
TPI Tooth Design: 3.5
-
Type: Constant Pitch
-
Diameter: 3/4 Inch
-
Supplied with Arbor: No
-
Arbor Shank Type: Straight
-
Supplied with Pilot Drill: No
-
Speed Rating: 230 RPM (Stainless Steel), 300 RPM (Cast Iron), 460 RPM (Mild Steel), 690 RPM (Aluminum)
-
Blade Material: Bi-Metal
-
Process: Cryogenically Treated
-
Cut Material: Machinable and Non-Ferrous Metal, Wood, Plastic
-
Use Arbor: 49-56-6950/49-56-7000/49-56-7010/49-56-7210/49-56-7240/49-56-7250 and 49-56-9100
-
Chuck Size: 3/8 in
-
Drill Size: 1/4 in Dia x 3-1/2 in L
-
Shank Type: Round
-
TPI or Pitch: 3.5 TPI
-
Body Material: Carbon Steel
-
Overall Length: 2-1/8 in
-
Cutting Edge Style: Toothed
-
Applicable Materials: Aluminum, Cast Iron, Mild Steel, Sheet Metal and Stainless Steel
-
Cutting Edge Material: Bi-Metal/8% Cobalt
-
Speed: 460/230/300/690 rpm
-
Arbor Size: 1/2-20
