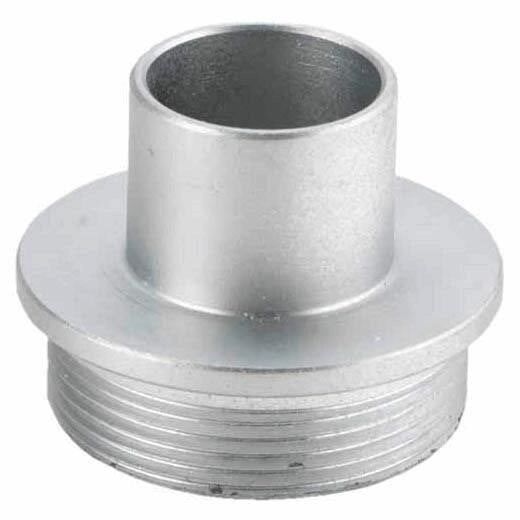

Milwaukee 49-54-0730 Template Guide Assembly 17/32 in Id

Product Description

The MILWAUKEE 49-54-0730 is a general routing template guide assembly designed for use with routers in woodworking and carpentry applications. The guide is precision-machined from rust-resistant steel, providing consistent accuracy and long service life. It features an inner diameter of 17/32 inches and uses an industry-standard lock-nut design that secures the guide to the router sub-base. The assembly includes one general routing template guide and one 44-40-0170 lock nut. Carpenters, finish trades, and woodworking professionals install this guide when template-following cuts are required.

This template guide is suited for residential and commercial finish carpentry, cabinetry, and millwork applications where repeatable, guided routing cuts are needed. It fits Milwaukee routers and most popular routers equipped with a 1-3/16 inch center hole sub-base, making it a versatile addition to a router accessory kit. The lock-nut attachment method is the recognized industry standard for template guide mounting.

Key Features

• Precision-machined steel construction for accuracy and long-term durability
• Rust-resistant steel material suitable for shop and jobsite environments
• Inner diameter of 17/32 inches for general routing template work
• Outer diameter of 3/8 inches with a barrel length of 5/16 inches
• Industry-standard lock-nut design for secure sub-base attachment
• Includes one template guide and one 44-40-0170 lock nut

Compatibility

Fits Milwaukee routers and most popular routers equipped with a 1-3/16 inch center hole sub-base using the standard lock-nut mounting method.

Installation Notes

Installation is performed by finish carpenters and woodworking tradespeople. Disconnect the router from power before attaching or removing the template guide. Thread the guide through the sub-base center hole and secure it with the included lock nut, ensuring it is tight before operation. Do not overtighten the lock nut by mechanical means in a way that could damage the sub-base threads.

Technical Specifications

• Inner Diameter: 17/32 inches
• Outer Diameter: 3/8 inches
• Barrel Length: 5/16 inches
• Sub-Base Center Hole Fit: 1-3/16 inches
• Material: Rust-resistant machined steel
• Weight: 0.15 pounds
• Unit of Measure: Each
• UPC: 045242190331

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-54-0730
