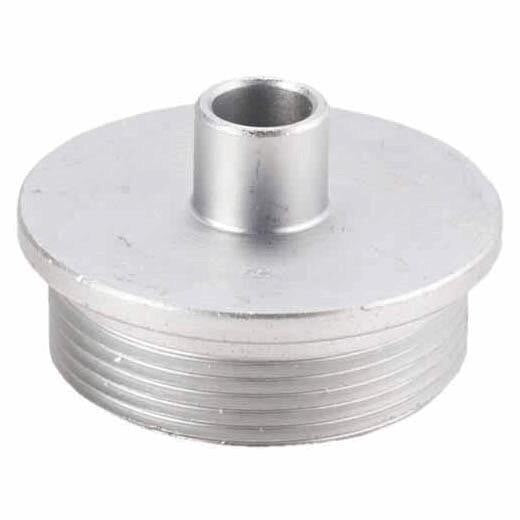

Milwaukee 49-54-0715 Template Guide Assembly 9/32 Inch Id

Product Description

The MILWAUKEE 49-54-0715 is a general routing template guide assembly designed for use with compatible routers in woodworking and routing applications. The guide features a precision-machined, rust-resistant steel barrel that ensures accurate, repeatable cuts when following a template. With a 9/32 inch inner diameter, 3/8 inch outer diameter, and 5/16 inch barrel length, this assembly provides consistent bit clearance and edge control. The kit includes one template guide and one 44-40-0170 lock nut. It is suited for carpenters, cabinet makers, and skilled tradespeople who require repeatable routing accuracy in production or finish work.

This template guide assembly is intended for general routing tasks where a template is used to guide the router along a fixed path. The universal lock-nut design is compatible with Milwaukee routers and most popular routers equipped with a 1-3/16 inch center hole sub-base, making it a practical fit for a wide range of shop setups. It is appropriate for both residential millwork and light commercial casework applications where routing precision is required.

Key Features

• Precision-machined steel construction for dimensional accuracy and long service life
• Rust-resistant steel material resists corrosion in shop environments
• 9/32 inch inner diameter provides proper clearance for compatible router bits
• 3/8 inch outer diameter and 5/16 inch barrel length for consistent template tracking
• Industry-standard lock-nut design fits Milwaukee and most routers with a 1-3/16 inch center hole sub-base
• Includes one template guide and one 44-40-0170 lock nut

Compatibility

Compatible with Milwaukee routers and most popular routers equipped with a 1-3/16 inch center hole sub-base.

Installation Notes

Installation is performed by carpenters or woodworking tradespeople using standard hand tools. Power down and unplug the router completely before installing or removing any template guide. Secure the guide firmly using the included lock nut before operating the router. Inspect the guide and lock nut for wear or looseness before each use.

Technical Specifications

• Inner Diameter: 9/32 inches
• Outer Diameter: 3/8 inches
• Barrel Length: 5/16 inches
• Material: Precision-machined rust-resistant steel
• Weight: 0.15 pounds
• Includes: One template guide, one 44-40-0170 lock nut
• UOM: Each

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-54-0715
