Milwaukee 49-22-0175 8-piece 6 Inch Spade Bit Kit

Product Description

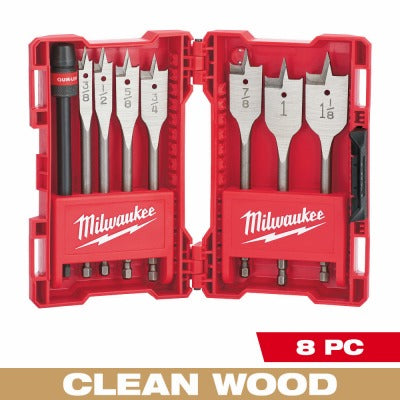

The Milwaukee Electric Tool Corp 49-22-0175 is an 8-piece spade bit kit built for boring clean holes in wood. The set includes seven flat boring bits in sizes ranging from 3/8 inches through 1-1/8 inches, plus a 6-inch Universal Quik-Lok All Hex Extension and a storage case. Each bit features double wing spurs that reduce vibration and promote clean, controlled hole formation. The patented cutting edge geometry is designed for faster, easier wood boring compared to conventional spade bit designs. Electricians, plumbers, and carpenters reach for this kit when rough-in work demands a range of hole sizes in wood framing and structural members.

This kit is suited for residential and light commercial rough-in applications where clean wood boring is required. Typical uses include drilling penetrations for wiring, piping, and conduit through wood studs, joists, and plates. The included hex extension allows the bits to reach into deeper cavities or tight spaces that a standard chuck setup cannot access. The kit arrives in clamshell packaging with an included case for organized storage on the job site.

Key Features

• 8-piece kit includes seven flat boring bits from 3/8 inches to 1-1/8 inches and one 6-inch Quik-Lok All Hex Extension
• Double wing spurs reduce vibration and support cleaner hole entry and exit
• Patented cutting edge designed for faster wood boring over conventional spade bit profiles
• 6-inch bit length provides extended reach in framing applications
• Includes storage case for organized transport and on-site access
• Universal Quik-Lok hex shank extension compatible with standard hex-drive chucks

Compatibility

Designed for use with drills and drivers equipped with a standard hex-drive or Quik-Lok compatible chuck. Intended for boring holes in clean wood including studs, joists, and similar dimensional lumber.

Installation Notes

Spade bit kits of this type are typically used by electricians, plumbers, and carpenters performing rough-in work. Confirm the drill or driver chuck accepts a hex shank before use. Keep bits clear of embedded fasteners or knots that could cause binding or bit deflection. Follow applicable codes such as NEC or IPC when sizing and locating bored penetrations in structural members.

Technical Specifications

• Piece Count: 8
• Bit Length: 6 inches
• Bit Sizes Included: 3/8 inches, 1/2 inches, 5/8 inches, 3/4 inches, 7/8 inches, 1 inch, 1-1/8 inches
• Extension Included: 6-inch Universal Quik-Lok All Hex Extension
• Application: Boring holes in clean wood
• Weight: 10.36 pounds
• Unit of Measure: EA
• Package Quantity: 5

Standard Information

• Brand: Milwaukee Electric Tool Corp
• Manufacturer Part Number: 49-22-0175
