Milwaukee 49-16-2661mx Acr Pivoting Press Ring Kit

Product Description

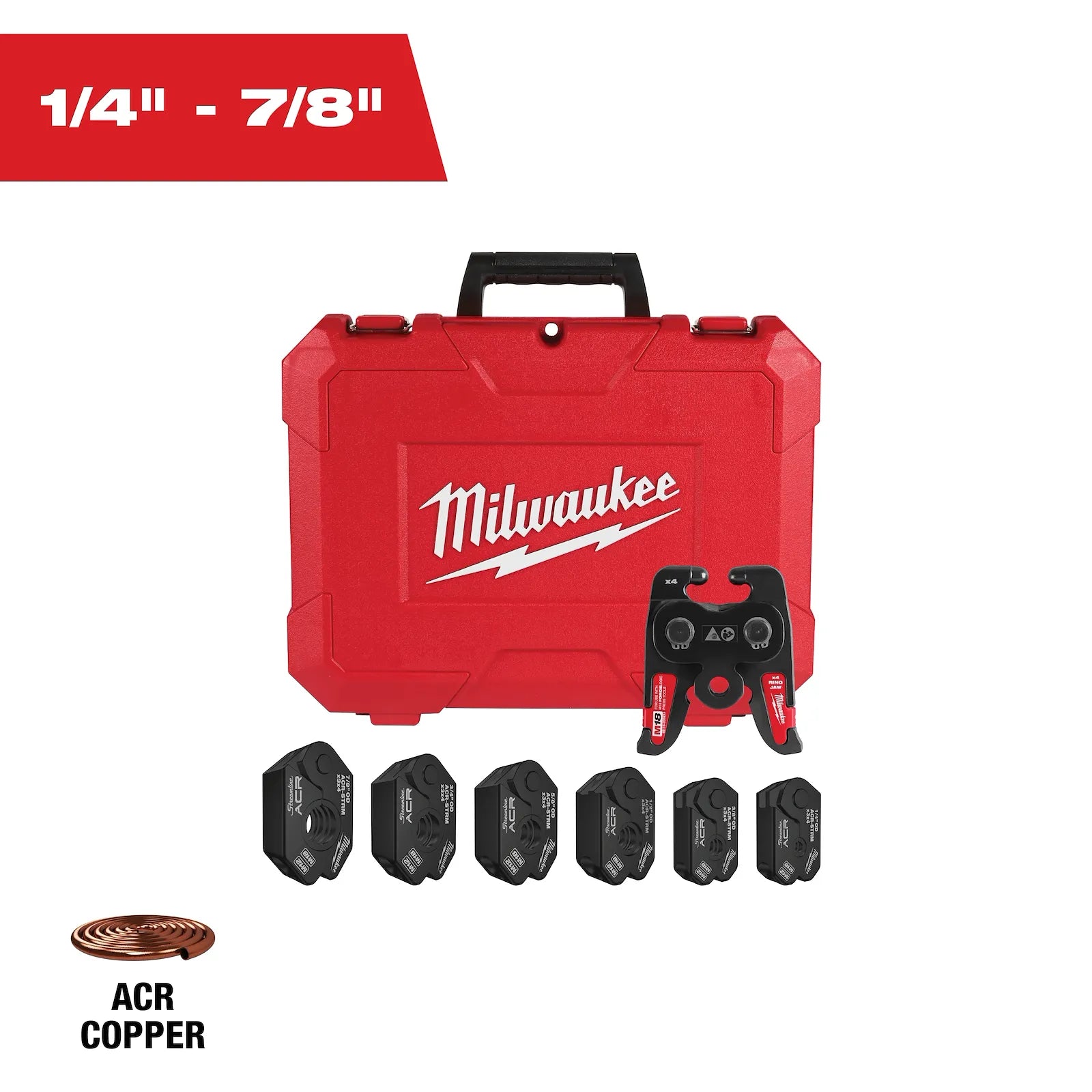

The MILWAUKEE 49-16-2661mx is a Streamline ACR pivoting press ring kit designed for use with compatible MILWAUKEE FORCE LOGIC press tools. The kit covers copper tubing sizes from 1/4 inch through 7/8 inch, making it suitable for a range of residential and light commercial refrigeration and HVAC copper line work. Steel ring construction provides long service life under repeated press cycles. A spring-loaded ring allows quick alignment to the fitting before pressing, reducing setup time on the job. Licensed HVAC technicians and refrigeration mechanics are the primary installers of this kit.

This kit is engineered for use with the Streamline ACR fitting system, delivering flameless, press-type copper connections as a faster alternative to traditional sweat and solder methods. The pivoting ring design improves tool access in confined spaces such as tight mechanical rooms, wall cavities, and equipment alcoves where a straight inline tool approach is not practical. The pivoting functionality requires pairing with a compatible MILWAUKEE ring jaw and an inline FORCE LOGIC press tool.

Key Features

• Covers 1/4 inch through 7/8 inch copper tubing sizes for ACR applications
• Pivoting ring design increases access in tight or restricted installation spaces
• Flameless press connection eliminates open-flame sweat and solder work
• Durable steel rings built for extended service life across multiple press cycles
• Spring-loaded ring enables fast, accurate alignment to fitting prior to pressing
• Press blocking system prevents mismatched ring and ring jaw combinations
• 2-year manufacturer warranty

Compatibility

Designed for use with MILWAUKEE M18 FORCE LOGIC press tools and compatible MILWAUKEE ring jaws. Intended for use with the Streamline ACR fitting system for copper tubing.

Installation Notes

Installation should be performed by a licensed HVAC technician or refrigeration mechanic familiar with ACR copper press systems. Before beginning work, ensure the refrigerant system is properly recovered and depressurized in accordance with EPA Section 608 requirements and applicable local codes. Confirm the correct ring jaw is seated and the blocking system has engaged before initiating a press cycle. Do not attempt to press fittings on a pressurized system.

Technical Specifications

• Tubing Size Range: 1/4 inch to 7/8 inch
• Application: ACR copper tubing press connections
• Ring Material: Steel
• Compatible Fitting System: Streamline ACR
• Warranty: 2 years

Standard Information

• Brand: MILWAUKEE
• Manufacturer Part Number: 49-16-2661mx
